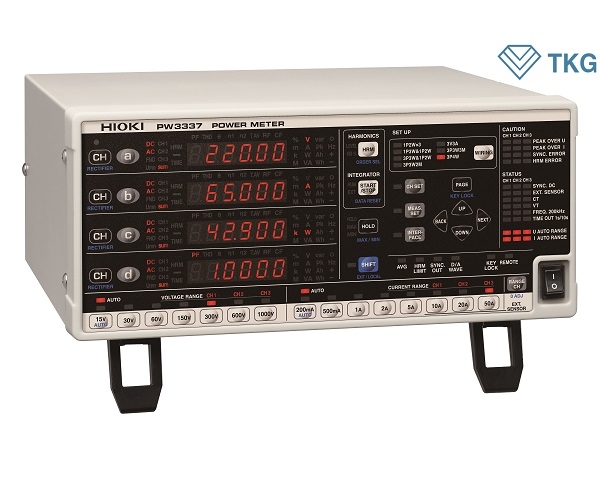

Máy phân tích công suất Hioki PW3337

Model: PW3337
Hãng sản xuất: HIOKI
Xuất xứ: Japan
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model:PW3337
Hãng sản xuất: HIOKI
Xuất xứ: Japan
Bảo hành: 12 Tháng
Thông số kỹ thuật:
Đo lường:
- 1-phase 2-dây, 1-phase 3-dây
- 3-phase 3-dây, 3phase 4-dây
- 4 kênh đo điện áp, 4 kênh đo dòng điện
Các thông đo:
- Voltage, Current, Active/reactive/apparent power
- Active/ reactive power integration, hase angle, Efficiency
- Power factor, Frequency, Harmonic waveform value
- Voltage waveform peak value, Current waveform peak
- Voltage crest factor, Current crest factor, Time average current
- Time average active power, Voltage ripple factor
- Current ripple factor
Thang đo:
- Điện áp: AC/DC 15 V đến 1000 V, 7giải
- Dòng điện: AC/DC 200 mA đến 50 A, 8 giải
- Công suất: 3.0000 W to 150.00 kW
Độ chính xác( Công suất hữu công):
- ±0.1% rdg. ±0.1% f.s. (DC)
- ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, tại Input < 50% f.s.)
- ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
Chức năng khác:
- AC+DC, AC+DC Umn, AC, DC, FND
- Tự động chuyển phạm vi đo, giá trị trung bình
- Thiết lập tỷ lệ VT hoặc  CT, kiểm soát sự đồng bộ
- MAX/ MIN, và những tính năng khác
Nguồn: 100 to 240 V AC, 50/60 Hz, 40 VA max
Khối lượng sản phẩm: 5.6 kg
Kích thức sản phẩm: 305*132*256mm
Phụ kiện đi kèm: Hướng dẫn sử dụng ×1, Hướng dẫn đo ×1, Dây nguồn ×1.

POWER METER PW3337

3-Channel AC/DC Power Meter for Single-Phase to 3P4W Equipment such as Motors, Inverters, Power Conditioners, and Power Supplies

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 6 months)

Measurement lines Single-phase 2-wires, single-phase 3-wires, 3-phase 3-wires, 3-phase 4-wires (voltage / current measurement range set for each wiring mode)
Measurement items Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Efficiency, Current integration, Active power integration, Integrated time, Voltage waveform peak value, Current waveform peak value, Voltage crest factor, Current crest factor, Time average current, Time average active power, Voltage ripple factor, Current ripple factor
Harmonic parameters Synchronization frequency range: 10 Hz to 640 Hz, Analysis order up to 50th
Harmonic voltage RMS value, Harmonic current RMS value, Harmonic active power, Total harmonic voltage distortion, Total harmonic current distortion, Voltage fundamental waveform, Current fundamental waveform, Active power fundamental waveform, Apparent power fundamental waveform, Reactive power fundamental waveform, Power factor fundamental waveform (displacement power factor), Voltage current phase difference fundamental waveform, Interchannel voltage fundamental wave phase difference, Interchannel current fundamental wave phase difference, Harmonic voltage content % , Harmonic current content % , Harmonic active power content %
(The following parameters can be downloaded as data during PC communication but not displayed: Harmonic voltage phase angle, Harmonic current phase angle, Harmonic voltage current phase difference)
Measurement range Voltage range: AC/DC 15 V to 1000 V, 7 ranges
Current range: AC/DC 200 mA to 50 A, 8 ranges
Power range: 3.0000 W to 150.00 kW (Depends on combination of voltage and current range)
Integration measurement (Integration time up to 10,000 hours) [Current] No.of displayed digits: 6 digits (from 0.00000 mAh, Polarity-independent integration and Sum value)
[Active power] No.of displayed digits: 6 digits (from 0.00000 mWh, Polarity-independent integration and Sum value)
Input resistance (50/60 Hz) [Voltage] 2 MΩ, [Current] 1 mΩ or less (direct input)
Basic accuracy (Active power) ±0.1% rdg. ±0.1% f.s. (DC)
±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at Input < 50% f.s.)
±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ Input)
Display refresh rate 5 times/s to 20 seconds (depends on average times settings)
Frequency characteristics DC, 0.1 Hz to 100 kHz
D/A output (-02/-03 model only) 16 channels (selectable from following items), Level output DC ±2 V, Waveform output 1 V f.s.
Level output, instantaneous waveform output (voltage, current, active power)
Level output (apparent power, reactive power, power factor, or other)
High-speed active power level output
Functions [Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, or other functions
Interfaces RS-232C / LAN standard, (-01/-03 model also includes GP-IB)
Power supply 100 to 240 V AC, 50/60 Hz, 40 VA max.
Dimensions and mass 305 mm (12.01 in) W × 132 mm (5.20 in) H × 256 mm (10.08 in) D, 5.6 kg (197.5 oz)
Accessories Instruction manual × 1, Measurement guide × 1, Power cord × 1


Current measurement

Can be connected to the current sensor input terminals (1 sensor necessary for single-phase measurement, and 2 or 3 sensors required for 3-phase measurements)

CLAMP ON SENSOR 9660

• 40Hz to 5kHz • 100 A AC rated input • φ 15 mm (0.59 in) core dia.

Learn more



CLAMP ON SENSOR 9661

• 40Hz to 5kHz • 500 A AC rated input • φ 46 mm (1.81 in) core dia.

Learn more



CLAMP ON SENSOR 9669

• 40Hz to 5kHz • 1000 A AC rated input • φ 55 mm (2.17 in) Core dia.

Learn more



AC FLEXIBLE CURRENT SENSOR CT9667

• 10 Hz to 20 kHz (±3dB) • 5000 A/ 500 A AC rated input

Learn more

Up to 200 A (High precision)

*To use a high precision current sensor (-05 model), requires Sensor Unit CT9555 and Connection Cord L9217.

*To use a high precision current sensor (without “-05” model), requires Conversion Cable CT9900 for PL23 (10 pin) to ME15W (12 pin) conversion, Sensor Unit CT9555 and Connection Cord L9217.
*1 sensor necessary for single-phase measurement, 2 or 3 sensors required for 3-phase measurements. The same number of power supply and connection cord as the sensor is necessary.

AC/DC CURRENT SENSOR CT6862-05

• DC to 1MHz (Phase: up to 300kHz) • Rated 50A AC/DC • φ 24 mm (0.94 in) core dia.

Learn more



AC/DC CURRENT SENSOR CT6863-05

• DC to 500kHz (Phase: up to 300kHz) • Rated 200A AC/DC • φ 24 mm (0.94 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6841-05

• DC to 1MHz (Phase: up to 300kHz) • Rated 20A AC/DC • φ 20 mm (0.79 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6843-05

• DC to 500kHz (Phase: up to 300kHz) • Rated 200A AC/DC • φ 20 mm (0.79 in) core dia.

Learn more

CLAMP ON SENSOR 9272-05

• 1Hz to 100kHz (Phase: 5Hz to 50kHz) • Rated 20A/200A AC/DC • φ 46 mm (1.81 in) core dia.

Learn more

Up to 500 A (High precision)

*To use a high precision current sensor (-05 model), requires Sensor Unit CT9555 and Connection Cord L9217.

*To use a high precision current sensor (without “-05” model), requires Conversion Cable CT9900 for PL23 (10 pin) to ME15W (12 pin) conversion, Sensor Unit CT9555 and Connection Cord L9217.
*1 sensor necessary for single-phase measurement, 2 or 3 sensors required for 3-phase measurements. The same number of power supply and connection cord as the sensor is necessary.

AC/DC CURRENT SENSOR 9709-05

• DC to 100kHz (Phase: up to 100kHz) • Rated 500A AC/DC • φ 36 mm (1.42 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6844-05

• DC to 200kHz (Phase: up to 200kHz) • Rated 500A AC/DC • φ 20 mm (0.79 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6845-05

• DC to 100kHz (Phase: up to 100kHz) • Rated 500A AC/DC • φ 50 mm (1.97 in) core dia.

Learn more



AC/DC CURRENT SENSOR CT6904

• DC to 4 MHz (Phase: up to 1 MHz) • Rated 500A AC/DC • φ 32 mm (1.26 in) core dia.

Learn more

AC/DC CURRENT SENSOR CT6875

• DC to 2MHz (Phase: up to 1MHz) • Rated 500A AC/DC • φ 36 mm (1.42 in) core dia.

Learn more

Up to 1000 A (High precision)

*To use a high precision current sensor (-05 model), requires Sensor Unit CT9555 and Connection Cord L9217.

*To use a high precision current sensor (without “-05” model), requires Conversion Cable CT9900 for PL23 (10 pin) to ME15W (12 pin) conversion, Sensor Unit CT9555 and Connection Cord L9217.
*1 sensor necessary for single-phase measurement, 2 or 3 sensors required for 3-phase measurements. The same number of power supply and connection cord as the sensor is necessary.

AC/DC CURRENT SENSOR CT6865-05

• DC to 20kHz (Phase: up to 1kHz) • Rated 1000A AC/DC • φ 36 mm (1.42 in) core dia.

Learn more



AC/DC CURRENT PROBE CT6846-05

• DC to 20kHz (Phase: up to 20kHz) • Rated 1000A AC/DC • φ 50 mm (1.79 in) core dia.

Learn more



AC/DC CURRENT SENSOR CT6876

• DC to 1.5MHz (Phase: up to 1MHz) • Rated 1000A AC/DC • φ 36 mm (1.42 in) core dia.

Learn more

PL23 (10 pin) - ME15W (12 pin) conversion

*When using a PL23 terminal sensor without “-05” in the model number, Conversion Cable CT9900 must be used to connect to ME15W terminal.

*When using the CT6865 and CT6846 (without “-05”), connection via the CT9900 and manual settings are required on the main device.

CONVERSION CABLE CT9900

Convert PL23 (10-pin) terminal to ME15W (12-pin) terminal

Power supply for sensors

CONNECTION CORD L9217

Cord has insulated BNC connectors at both ends, 1.6 m (5.25 ft) length



SENSOR UNIT CT9555

• Power supply for current sensors when used alone • 1ch, with waveform output

Learn more

PC communications

GP-IB CONNECTOR CABLE 9151-02

2 m (6.56 ft) length



RS-232C CABLE 9637

9 pin - 9 pin, cross, 1.8 m (5.91 ft) length



LAN CABLE 9642

Straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m (16.41 ft) length

Other options

Synchronize multiple units

CONNECTION CORD 9165

Cord has metallic BNC connectors at both ends, use at metallic terminal, 1.5 m (4.92 ft) length
