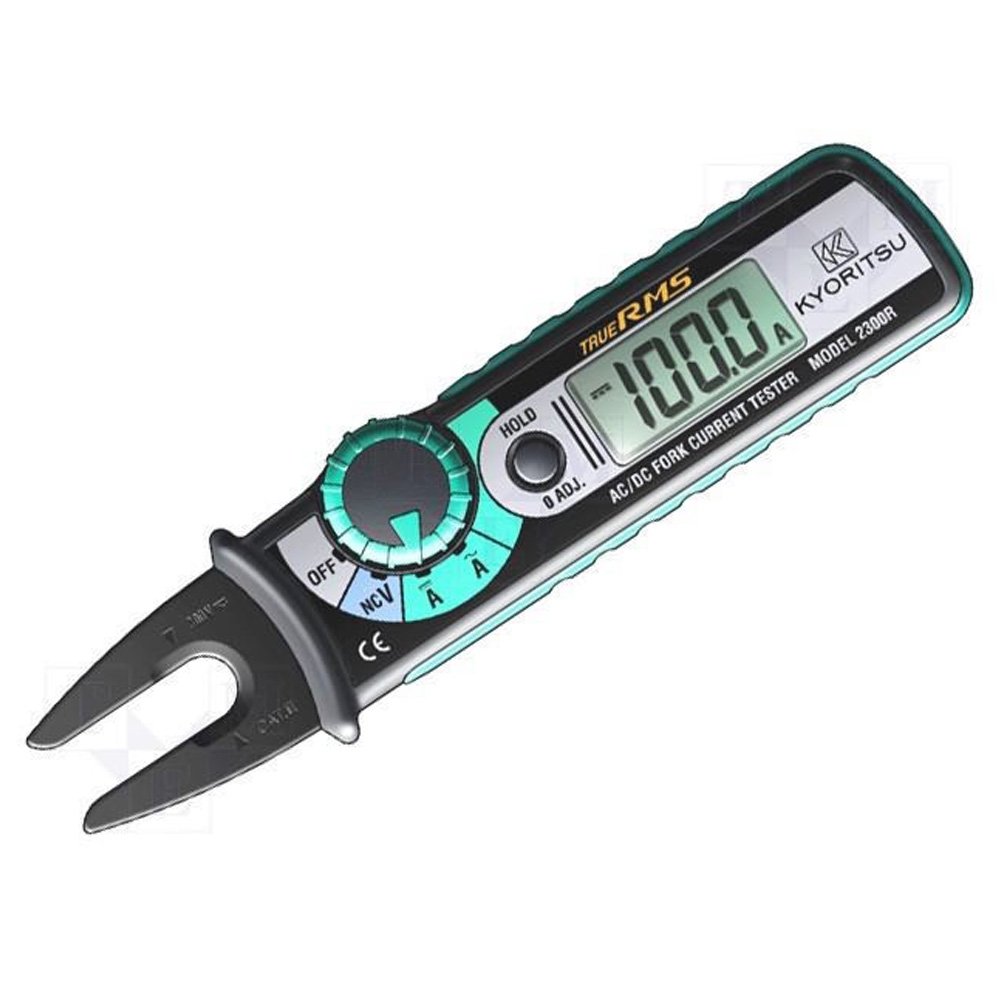

Ampe kìm AC/DC KYORITSU 2300R
Model: 2300R
Hãng sản xuất: KYORITSU-JAPAN
Xuất xứ:
Bảo hành: 12 tháng
Thông số kỹ thuật:
True RMS
AC A: 0 to 100.0A
DC A: 0 to ±100.0A
Đường kính kìm: Ø10mm
Phát hiện điện áp với chế độ tiếp xúc ngoài
Kích thước: 161.3(L) × 40.2(W) × 30.3(D)mm
Khối lượng: 110g
Power Source: R03 (AAA) × 2
Phụ kiện: Hộp đựng, Pin, HDSD
Current measurement | AC A 0 to 100.0A ±2.0%rdg±5dgt (50/60Hz) DC A 0 to ±100.0A ±2.0%rdg±5dgt |
---|---|
Crest factor | 2.5 |
Non contact voltage | Detect AC voltage without contacting with socket wire During voltage detection, "Hi" flashes and a buzzer sounds |
Maximum digit | 1,049 |
Conductor size | Max Ø10mm |
Safety Standard | IEC 61010-1 CAT III 300V Pollution degree 2 |
Power source | R03 (AAA) × 2 (Auto power off: approx.10 minutes) *Continuous measuring time: AC A approx. 46 hours DC A approx. 52 hours |
Dimensions | 161.3(L) × 40.2(W) × 30.3(D)mm |
Weight | 110g (with batteries) |
Included Accessories | 9113 (Carrying Case) R03 (AAA) × 2 Instruction Manual |
