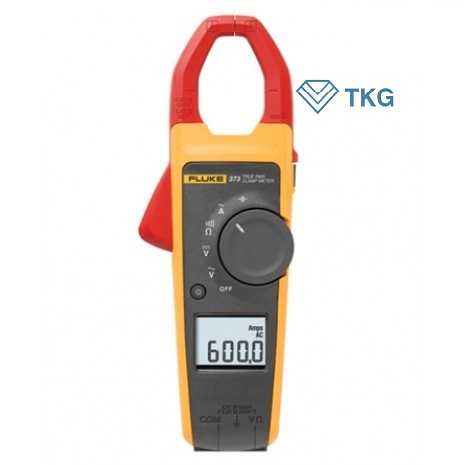

Ampe kìm đo dòng AC Fluke 373
Model: 373
Hãng sản xuất: Fluke
Xuất xứ: Taiwan
Bảo hành: 12 tháng
Thông số kỹ thuật:
ACA: 600A /0.1A /2% ± 5 digits
ACV: 600V /0.1V /1% ± 5 digits
DCV: 600V /0.1V /1% ± 5 digits
R: 6000 Ω /0.1 Ω /1% ± 5 digits
C: 10 µF to 1000 µF /1 µF /1.9% ± 2 digits
True-RMS: có
Continuity : có
Hold: có
Backlight: có
Kích thước vòng kìm: 34 mm max
Kích thước máy: (277 x 88 x 43 mm)
Trọng lượng: 12 oz. (350g)
Phụ kiện bao gồm: túi mềm, dây đo, 2 pin AA Alkaline, HDSD
Ampe kìm đo dòng AC Fluke 373
Electrical Specifications | |
AC Current | |
Range | 600.0 A |
Resolution | 0.1 A |
Accuracy | 2 % ± 5 digits (48 – 62 Hz) |
Crest Factor (50/60 Hz) | 2.5 @ 600 A |
AC Voltage | |
Range | 600.0 V |
Resolution | 0.1 V |
Accuracy | 1.0 % ± 5 digits (48 – 62 Hz) |
DC Voltage | |
Range | 600.0 V |
Resolution | 0.1 V |
Accuracy | 1 % ± 5 digits |
Resistance | |
Range | 600.0 Ω/6000 Ω |
Resolution | 0.1 Ω/1 Ω |
Accuracy | 1 % ± 5 digits |
Continuity Beeper | 30 Ω |
Capacitance | |
Range | 10.0 – 100.0 μF / 1000 μF |
Resolution | 0.1 μF/1 μF |
Accuracy | 1.9 % ± 2 digits |
Mechanical Specifications | |
Size (L x W x H) | 232 mm x 85 mm x 45 mm |
Weight | 370 g |
Environmental Specifications | |
Operating Temperature | -10 °C to +50 °C |
Storage Temp | -40 °C to +60 °C |
Operating Humidity | Non condensing (< 10 °C) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C) (Without Condensation) |
Operating Altitude | 3000 meters |
Storage Altitude | 12,000 meters |
EMI, EMC | Meets all applicable requirements in EN61326-1:2006 |
Temperature Coefficients | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C |
Safety Compliance | ANSI/ISA S82.02.01:2004 CAN/CSA-C22.2 No. 61010-1-04 IEC/EN 61010-1:2001, 600V CAT III, 300V CAT IV Pollution Degree 2 EN/IEC 61010-2-32:2002 EN/IEC 61010-031:2002/A1:2008 |
Agency Approvals | |
Batteries | 2 AA, NEDA 15A, IEC LR6 |
