Bếp cách thủy Memmert WNB7 (7 lít, +95°C)

Model: WNB7
Hãng sản xuất: MEMMERT
Xuất xứ: Germany
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: WNB7
Hãng sản xuất: MEMMERT
Xuất xứ: Germany
Bảo hành: 12 tháng
Ứng dụng:
- Sử dụng trong phòng thí nghiệm công nghệ thực phẩm và mỹ phẩm, các phòng thí nghiệm nghiên cứu như: hóa học, sinh học, vi sinh, hóa sinh và các phòng thí nghiệm lâm sàng . . .
Thông số kỹ thuật:
- Thể tích: khoảng 7 lít
- Kích thước trong: dài 240 x rộng 210 x cao 140 mm
- Kích thước ngoài: dài 468 x rộng 356 x cao 238 mm
- Mức chất lỏng tối thiểu/tối đa: 97/120 mm
- Khoảng nhiệt độ hoạt động: tối thiểu 5°C trên nhiệt độ môi trường đến 95°C với thêm chế độ điểm sôi (+100°C)
- Độ biến thiên: ± 0.1°C
- Độ phân bố: ± 0.25°C
- Bộ điều khiển: hiển thị số (LED) cho nhiệt độ cài đặt và nhiệt độ thực (độ phân giải 0.1°C) và thời gian còn lại
- Nhiệt độ: cảm biến Pt100 class A
- Cài đặt thời gian: bộ cài đặt bằng kỹ thuật số từ 1 phút đến 99 giờ 59 phút cho: ON (hoạt động liên tục), WAIT ((chức năng chờ cho hoạt động liên tục và hoạt động theo thời gian), HOLD (chức năng giữ nhiệt)
- Kiểm soát nhiệt: bộ giới hạn nhiệt độ bằng cơ TB cấp bảo vệ class 1 ngắt chế độ gia nhiệt khi vượt quá khoảng 30°C trên nhiệt độ tối đa của bể
- Kiểm soát nhiệt: trong trường hợp quá nhiệt do sự cố, chế độ gia nhiệt được ngắt ở khoảng 10°C trên nhiệt độ cài đặt (giá trị cố định)
- Hệ thống tự chẩn đoán: bộ điều khiển nhiệt độ bằng vi xử lý PID có tích hợp hệ thống tự động chẩn đoán chỉ thị báo lỗi
- Bể gia nhiệt: gia nhiệt trên bề mặt diện tích lớn ba mặt
- Bên trong bằng thép không gỉ làm bằng vật liệu 1.4301 (ASTM 304) được hàn bằng công nghệ laser, dễ dàng vệ sinh
- Bên ngoài bằng thép không gỉ
- Nguồn điện: 230 V, 50/60 Hz
- Công suất: khoảng 2400 W (trong quá trình gia nhiệt)
- Nhiệt độ môi trường: +5°C đến 40°C
- Độ ẩm: tối đa 80% rh, không ngưng tụ

Phụ kiện chọn thêm:
+ Nắp tháp bằng thép không gỉ, code: B02641
+ Nắp bằng bằng thép không gỉ với các lỗ và bộ vòng đồng tâm (1 lỗ/Ø 147 mm), code: B02680
+ Nắp bằng bằng thép không gỉ với các lỗ và bộ vòng đồng tâm dùng cho bộ làm lạnh (1 lỗ/Ø 147 mm), code: B24372
+ Giá đỡ với 2 độ cao (30 hoặc 60 mm), code: E02893
+ Bộ làm lạnh CDP115
+ Bộ dụng cụ lắp đặt và kết nối bộ làm lạnh (bao gồm các thanh gắn cho tất cả các kích thước bể khác nhau), code: B02770
+ Giá đỡ ống nghiệm, 56 lỗ (7 x 8), đường kính lỗ 18 mm, khả năng tối đa của bể: 1 giá, code: B02781
+ Giá đỡ ống nghiệm, 24 lỗ (3 x 8), đường kính lỗ 18 mm, khả năng tối đa của bể: 2 giá, code: B02783

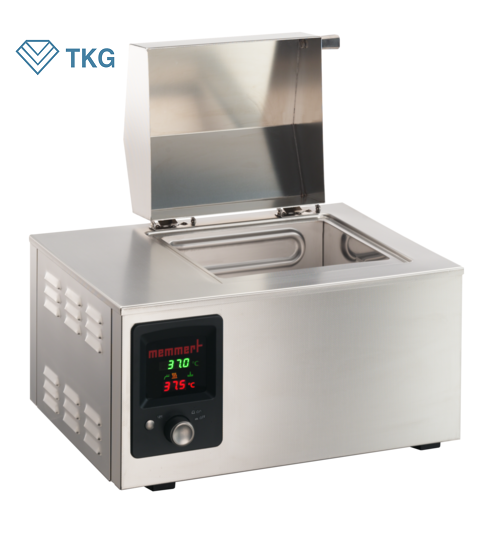

Waterbath WNB 7

The combination of corrosion-resistant stainless steel, precise electronics and multiple temperature protection guarantees the highest level of safety in the laboratory.

Waterbath WNB 7

Standard delivery Waterbath

On this page, you can find all the essential technical data on the Memmert water bath. Our customer relations team will be pleased to help if you want further information. If you should require a customised special solution, please contact our technical specialists at myAtmoSAFE@memmert.com.

Sketch Waterbath WNB 7

Temperature

Temperature range in °C min. 5°C above ambient up to +95°C with additional boiling mode (+100°C)

Control of standard components

Temperature 1 Pt100 sensor class A in 4-wire-circuit
Timer integrated digital timer from 1 min. to 99,59 hours for: ON continuous operation WAIT (delayed on for continuous and limited timed operation) HOLD

Safety

Temperature control mechanical temperature limiter TB protection class 1 switching the heating off at approx. 30°C above max. temperature of the bath
Temperature control in case of overtemperature due to failure, the heating is switched off at approx. 10°C above the set temperature (fixed value)
Autodiagnostic system microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator

Heating concept

Heating Baths corrosion-proof large-area heating on three sides

Standard equipment

Controller digital display (LED) of set and actual temperature (0,1°C resolution) and of (remaining) programme time

Stainless steel interior

Dimensions W x H x D in mm w(A) x h(C) x d(B): 240 x 140 x 210 mm
Interior easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 (ASTM 304), laser-welded
Volume 7 l
Liquid level min. (H) 97 mm
Liquid level max. (I) 120 mm

Textured stainless steel casing

Dimensions w(D) x h(G) x d(E): 468 x 337 x 356 mm

Electrical data

Voltage 230 V, 50/60 Hz
Electrical load approx. 1200 W (during heating)

Ambient conditions

Installation The vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm.
Ambient temperature +5 °C to +40 °C
Humidity rh max. 80 %, non-condensing
Overvoltage category II
Pollution degree 2

Packing/shipping data

Transport information The appliances must be transported upright
Customs tariff number 8419 8998
Country of origin Federal Republic of Germany
WEEE-Reg.-No. DE 66812464
Dimensions approx incl. carton w x h x d: 570 x 450 x 420 mm
Net weight approx. 11 kg
Gross weight carton approx. 16 kg

Option

Option Order No.
  Voltage 115 V, 50/60 Hz (no extra cost) X2
Water level control (for WNB, WNE, WPE) Water level control (for WNB, WNE, WPE) L3
Works calibration certificate (37°C for WNB, WNE, WPE, 160°C for ONE) Works calibration certificate (37°C for WNB, WNE, WPE, 160°C for ONE) D00123

Accessory

Accessory Order No.
Accessory Order No.
  IQ/OQ document with device-specific works test data for one freeselectable temperature value, incl. temperature distribution survey at Memmert for 9 measuring points to DIN 12876.2. Further temperature values and validation at customer site on demand. D00125
Stainless steel gable cover, also suitable for shaking device (14/22 und 29/45) or Peltier cooling unit CDP 115 Stainless steel gable cover, also suitable for shaking device (14/22 und 29/45) or Peltier cooling unit CDP 115 B02641
Flat stainless steel cover with concentric ring sets for ring set openings: 1 opening / 147 mm diameter Flat stainless steel cover with concentric ring sets for ring set openings: 1 opening / 147 mm diameter B02680
Flat stainless steel cover with concentric ring sets for Peltier cooling CDP115: 1 opening / 147 mm diameter Flat stainless steel cover with concentric ring sets for Peltier cooling CDP115: 1 opening / 147 mm diameter B24372
Shelf reversible for 2 heights (30 or 60 mm) Shelf reversible for 2 heights (30 or 60 mm) E02893
Peltier cooling device CDP115 for waterbaths for temperatures below ambient from +10 °C, Voltage 230 V, 50/60 Hz, or 115 V, 60 Hz (please state in case of order).
Please do not forget to order the installation and connection set! Peltier cooling device CDP115 for waterbaths for temperatures below ambient from +10 °C, Voltage 230 V, 50/60 Hz, or 115 V, 60 Hz (please state in case of order). Please do not forget to order the installation and connection set! CDP115
  Installation and connection set for Peltier cooling device CDP115 (incl. mounting bars for all different bath sizes) B02770
Shaking device incl. support frame, shaking frequency 35 – 160 strokes per minute (horizontal back/forth movement), requires gable cover Shaking device incl. support frame, shaking frequency 35 – 160 strokes per minute (horizontal back/forth movement), requires gable cover -
Support basket with perforated mounting shelf (stainless steel) with grid perforations to take clips for conical flasks Support basket with perforated mounting shelf (stainless steel) with grid perforations to take clips for conical flasks -
Test tube racks, 56 holes (7x8), dia.18 mm each, bath capacity: 1 rack Test tube racks, 56 holes (7x8), dia.18 mm each, bath capacity: 1 rack B02781
Test tube racks, 24 holes (3x8), dia.18 mm each, bath capacity: 2 racks Test tube racks, 24 holes (3x8), dia.18 mm each, bath capacity: 2 racks B02783
