Bộ dụng cụ đo chất lượng đất Hanna HI3896BP

Backpack Lab Soil Quality Educational Test Kit - HI3896BP

The HI3896BP is a Backpack Lab designed for educators and environmental science students, containing lessons, activities, and test kits that relate to important parameters evaluated in soil quality. Backpack Lab is designed with all the necessary components in one place, reducing the chance of misplacing an item. Ideal for transporting, it’s easy to take this durable backpack to the fišeld for on-site measurements. This portable kit contains well-constructed lessons and activities, and will allow the teacher to get the most out of their classroom time.

The HI3896BP contains test kits for the determination of common parameters in soil quality testing: nitrogen, phosphorus, potassium and pH. The HI98129 Combo Tester is also included for measurement of pH, conductivity (EC), and total dissolved solids (TDS), as well as the HI145-00 T-Shaped Thermometer for accurate temperature measurements.

Laminated field test procedures

Lab activity worksheets

Features at-a-glance

• Tests for seven important soil quality parameters

  • Classrooms can gain an extensive understanding of soil quality through measurement of these seven parameters:
    Nitrogen, phosphorus, potassium, pH, EC, TDS, and temperature.

• Complete testing setup

  • All required materials are included with the test kit, such as the pH tester, test tubes, indicator and reagent bottles and packets, and thermometer.

• Replacement reagents available

  • There is no need to buy a new kit when reagents are exhausted. The reagents and buffers for each parameter can be ordered individually.

• Comprehensive educational material

  • The lesson plan and components are tied together by a comprehensive teacher’s manual that includes information about each parameter, classroom activities designed to introduce students to each parameter, and detailed šfield-testing procedures.

pH Range	0.00 to 14.00
pH Resolution	0.01 pH
pH Accuracy	±0.05 pH
pH Calibration	automatic, one or two-point with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or 4.01 / 6.86 / 9.18)

EC Range	0 to 3999 µS/cm
EC Resolution	1 μS/cm
EC Accuracy	±2% F.S.
EC Calibration	automatic, one point at 1413 µS/cm
TDS Range	0 to 2000 mg/L
TDS Resolution	1 mg/L
TDS Accuracy	±2% F.S.
TDS Calibration	automatic, one point at 1382 mg/L (ppm)

Temperature Range	0.0 to 60.0°C / 32.0 to 140.0°F
Temperature Resolution	0.1°C / 0.1°F
Temperature Accuracy	±0.5°C / 1°F

Thermistor Temperature Range	-50.0 to 220°C
Thermistor Temperature Resolution	0.1°C (-50.0 to 199.9°C); 1°C (200 to 220°C)
Thermistor Temperature Accuracy	±0.3°C (-20 to 90°C); ±0.4% F.S. (outside)
Thermometer Probe	stainless steel probe; 125 mm x dia 5 mm (4.9 x dia 0.2’’)

Nitrate Measurement Type	colorimetric
Nitrate Range	traces, low, medium, high
Nitrate Method	Ned
Nitrate Number of Tests	25

Phosphorous Measurement Type	colorimetric
Phosphorous Range	traces, low, medium, high
Phosphorous Method	ascorbic acid
Phosphorous Number of Test	25

Potassium Measurement Type	turbidimetric
Potassium Range	traces, low, medium, high
Potassium Method	tetraphenylborate
Potassium Number of Test	25

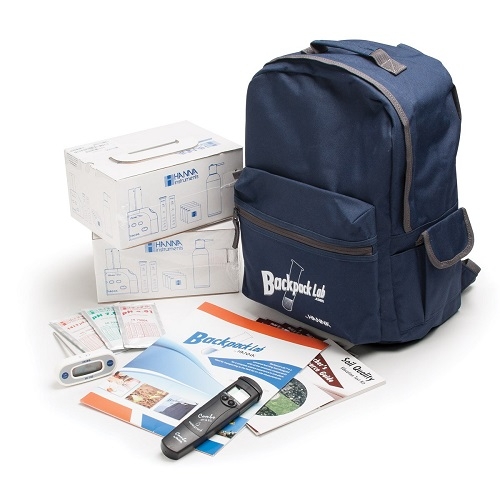

Ordering Information	HI3896BP Backpack Lab test kit includes agriculture test kit pro, HI98129 Combo pH/EC/TDS/temperature tester, HI145 digital thermometer, set of 6 field test procedures, teacher’s resource CD, teacher’s guide and backpack.
