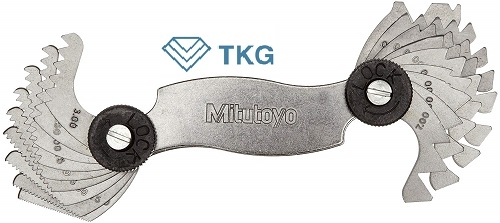

Bộ dưỡng đo ren Mitutoyo 188-121
Model: 188-121
Hãng sản xuất: Mitutoyo - Nhật bản
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
Dải đo: 0.4-7mm
Số lá: 18
Hệ mét
Bộ dưỡng đo ren Mitutoyo 188-121
| Order No | Range | # of Leaves | Type | Composition of Gages |
| 188-101 | 4-42TPI | 30 | Whitworth Screw Pitch Gage (55°) | 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI |
| 188-102 | 4-60TPI | 28 | Whitworth Screw Pitch Gage (55°) | 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 34, 36, 40, 48, 60 TPI |
| 188-111 | 4-42TPI | 30 | Unified Screw Pitch Gage (60°) | 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI |
| 188-121 | 0.4-7mmTPI | 18 | Metric Screw Pitch Gage (60°) | 0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm |
| 188-122 | 0.4-7mmTPI | 21 | Metric Screw Pitch Gage (60°) | 0.4, 0.5, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7mm |
| 188-130 | 0.35-6mmTPI | 22 | Metric Screw Pitch Gage (60°) | 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6mm and 60° angle Gage |
| 188-151 | 0.4-7mmTPI | 51 | Metric and Unified Screw Pitch Gage set (60°) | Set of 188-122 and 188-111 |
| 188-152 | 4-56TPI | 28 | Metric and Unified Screw Pitch Gage Set (60º) | 4,6,8,10,11,11-1/2,12,13,20, 28,32, 40,56TPI 0.05,0.75,1.00,1.25,1.50, 1.75,2.00,2.50,3.00,3.50 ,4.00,4.50, 5.00,6.00mm |
| 188-153 | 0.25-2.5mmTPI | 28 | Metric Screw Pitch Gages(60º) | 0.25,0.30,0.35,0.40,0.45,0.50, 0.55,0.60, 0.65,0.70,0.75,0.80,0.85,0.90, 1.00,1.10, 1.20,1.25,1.30,1.40,1.50,1.60 ,1.70,1.75, 1.80,1.90,2.00,2.50mm |
| 950-253 | 4-84TPI | 51 | Unified Screw Pitch Gage (60°) | 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 84 TPI |
