Điện cực EC/TDS Hanna HI7632-00 (Thang cao, cáp 2m)

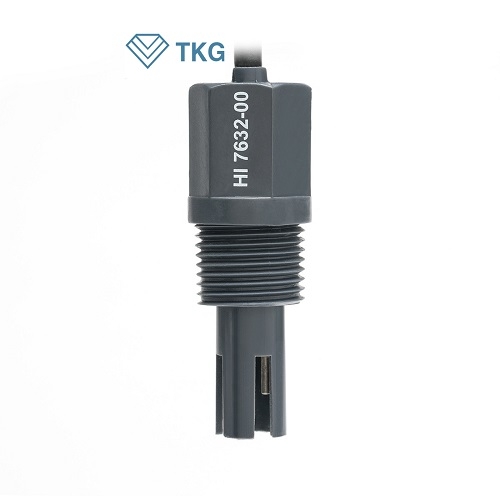

EC/TDS Probe for Mini Controller - HI7632

The HI7632 is a two-pole amperometric EC/TDS probe for panel mounted mini controllers that measure in the high range (mS/cm and ppt). This probe has a built-in temperature sensor for Automatic Temperature Compensation and a ½” male NPT threaded connection for insertion mounting. The HI7632 probe provides a rapid response and high accuracy EC or TDS measurement.

Two-pole amperometric probe

Internal temperature sensor

High range measurement (mS/cm and ppt)

Details

Two-Pole Probe

The HI7632 is an amperometric sensor, utilizing two-pole technology to achieve accurate EC and TDS measurements. An alternating voltage is applied to the two electrodes and the generated current is measured. The HI7632 is compatible with the following mini controllers that measure in the high range:

EC:

• BL983317

• BL983327

TDS:

• BL983318

Internal Temperature Sensor

The integrated temperature sensor of the HI7632 probe is crucial for accurate EC and TDS measurements. Changes in temperature of a solution will change the ion mobility, which will influence the measurement. For this reason it is important that a fast and stable temperature measurement be taken in order to provide an accurate temperature compensated EC and TDS reading.

Threaded Connection

The ½” NPT threaded connection of the HI7632 allows for insertion mounting into a common “T” fitting without the need for additional hardware.

Multiple Cable Lengths

The HI7632 is available with varying lengths of cable based on your specific requirements.

HI7632-00 comes with 2 meters (6.6 feet) of cable attached.

HI7632-00/6 comes with 6 meters (19.7 feet) of cable attached.

Cable Length	2 m (6.6 ') y 6 m (19.7') según la selección
Probe Length	64 mm (2.5”)
Connection	Rosca ½ "
