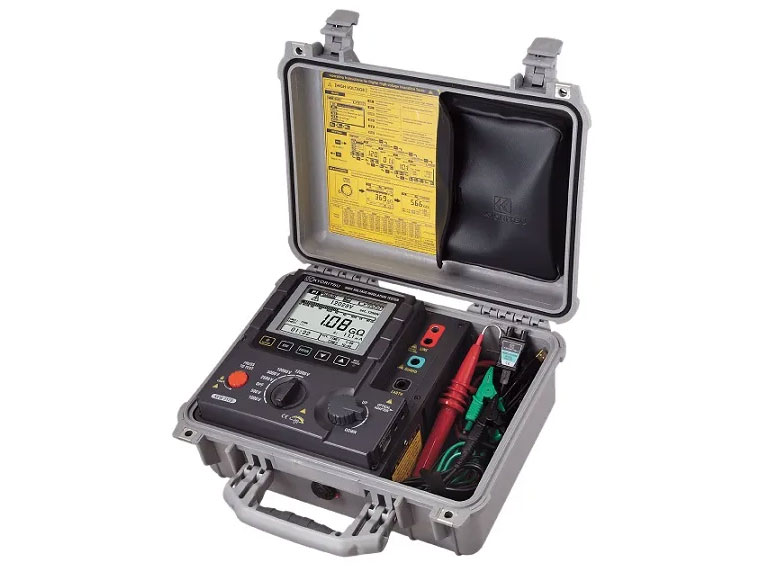

Đồng hồ đo điện trở cách điện KYORITSU 3128
Model: 3128
Hãng sản xuất: Kyoritsu-Japan
Xuất xứ: Japan
Bảo hành: 12 tháng:
Thông số kỹ thuật:
- Đo điện trở cách điện
Điện áp thử: 500V/1000V/2500V/5000V10000V/12000V
Giải đo điện trở: 500GΩ/1TΩ/2.5TΩ/5TΩ/35TΩ
Độ chính xác: ±5%rdg |±3dgt và ±20%rdg tùy từng giải
Dòng điện ngắn mạch: 5mA
- Điên áp đầu ra
Giải điện áp: 500V/1000V/2500V/5000V10000V/12000V
Độ chính xác: 0~+20%
Giải chọn:
50~600V (step 5V),
610~1200V (step 10V),
1225~3000V (step 25V)
3050~6000V (step 50V)
6100~10000v (step 100V)
10100 ~ 12000V (step 100V)
- Đo điện áp
Giải điện áp: DCV : ±30~±600V,
ACV : 30~600V (50/60Hz)
Độ chính xác: ±2%rdg
- Đo dòng: 0 ~ 2.4mA
- Đo tụ điện
Giả đo : 5nF ~ 50uF
Độ chính xác: ±5%rdg
Nguồn : Pin 12V
Kích thước: 330 (L) × 410 (W) × 180 (D) mm
Phụ kiện:
+ 7170 (Main cord),
+ 7224A (Earth cord),
+ 7225A (Guard cord),
+ 7226A (Line probe),
+ 7227A (Line probe with alligator clip),
+ 8029 (Extension prod),
+ 8212-USB-W
Hướng dẫn sử dụng
Đồng hồ đo điện trở cách điện KYORITSU 3128
High Voltage Insulation Testers
KEW 3128
• Microprocessor controlled high voltage insulation resistance tester with Diagnostic functions.
• Suitable for analyzing the insulation characteristics of cables, transformers, motors, generators, high-pressure switches, insulators, wiring installations, etc.
• 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V, 12000V
Fine adjustment of voltage setting at each range is also possible
• Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight.
• Can be operated from built-in rechargeable battery or from AC line.
• Automatic discharge after test with monitoring of the discharge voltage.
• Internal memory can store about 43,000 data (max).
• Robust design for field use with IP64 rating (with lid closed).
Insulation resistance (*): Accuracy is not guaranteed with setting of 250V or less
| Rated voltage | 500V | 1000V | 2500V | 5000V | 10000V | 12000V |
|---|---|---|---|---|---|---|
| Max measurement value | 500GΩ | 1TΩ | 2.5TΩ | 5TΩ | 35TΩ | |
| Accuracy | 400k～50GΩ ±5%rdg±3dgt (*) | 800k～100GΩ 5%rdg±3dgt | 2M～250GΩ ±5%rdg±3dgt | 4M～500GΩ ±5%rdg±3dgt | 8M～1TΩ ±5%rdg±3dgt | |
| 50G～500GΩ ±20%rdg (*) | 100G～1TΩ ±20%rdg | 250G～2.5TΩ ±20%rdg | 500G～5TΩ ±20%rdg | 1T～10TΩ ±20%rdg | ||
| 10T - 35TΩ Values are displayed, but accuracy isn't guaranteed | ||||||
| Short circuit current | Max 5.0mA | |||||
| Load resistor to output rated voltage | 0.5MΩ or more | 1MΩ or more | 2.5MΩ or more | 5MΩ or more | 20MΩ or more | 24MΩ or more |
Output voltage
| Rated voltage | 500V | 1000V | 2500V | 5000V | 10000V | 12000V |
|---|---|---|---|---|---|---|
| Monitor accuracy | ±10%±20V | ±10%±20V | ±10%±20V | ±10%±20V | ±10%±20V | ±10%±20V |
| Output accuracy | 0 - +20% | 0 - +10% | 0 - +10% | 0 - +10% | -5 - +5% | -5 - +5% |
| Selectable range | 50 - 600V (in steps of 5V) | 610 - 1200V (in steps of 10V) | 1225 - 3000V (in steps of 25V) | 3050 - 6000V (in steps of 50V) | 6100 - 10000V (in steps of 100V) | 10100 - 12000V (in steps of 100V) |
Voltage measurement
| Measuring range | DCV：±30 ～ ±600V、ACV：30 ～ 600V （50/60Hz） |
|---|---|
| Accuracy | ±2%rdg±3dgt |
Current measurement
| Measuring range | 5.00nA - 2.40mA (Depending on the insulation resistance) |
|---|
Capacitance measurement
| Measuring range | 5.0nF ～ 50.0μF (500V/1000V/2500V/5000V) | 5.0nF - 1.0µF (display range: 5.0nF - 50.0µF) (10000V/12000V) |
|---|---|---|
| Accuracy | ±5%rdg±5dgt | |
General
| Applicable standards | IEC 61010-1 CAT IV 600V Pollution degree 2, IEC 61010-031, IEC 61326, IEC 60529 (IP64): with the lid closed. |
|---|---|
| Operating temperature & humidity range | -10ºC - Relative humidity 85% or less 50ºC /(when operating with an external power supply, no condensation) 0ºC - 40ºC /Relative humidity 85% or less (when operating with battery, no condensation) |
| Storage temperature & humidity range | -20ºC - 60ºC / Relative humidity 75% or less (no condensation) |
| Power source | Rechargeable Lead storage battery (12V)* Charging time: approx. 8 hours / AC Power supply (100V - 240V, 50/60Hz) * Continuous measuring time: approx. 4 hours (a load of 100MΩ at the Insulation resistance 12000V Range.) approx. 2 hours (Max current consumption in range while rated currents are maintained.) |
| Dimensions | 330 (L) × 410 (W) × 180 (D) mm *Instrument and Hard case |
| Weight | 9kg approx. (including battery) *Instrument and Hard case |
| Included Accessories | 7170 (Main cord), 7224A (Earth cord), 7225A (Guard cord), 7226A (Line probe), 7227A (Line probe with alligator clip), 8029 (Extension prod), 8212-USB-W (USB adaptor with KEW Windows (Software)), Instruction manual |
| Optional Accessories | 7254 (Longer Line probe with alligator clip) |
