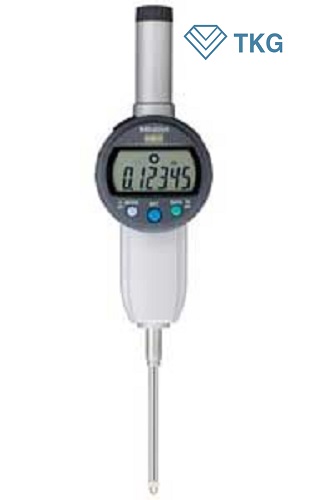

Đồng hồ so điện tử Mitutoyo 543-491B
Model: 543-491B
Hãng sản xuất: Mitutoyo - Nhật bản
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật Đồng hồ so điện tử Mitutoyo 543-491B:
Dải đo: 50.8mm
Độ chia: 0.001mm
Cấp chính xác: 0.006mm
| Order No | Model | Image | Range | Accuracy | Contact Point | Measuring Force | Resolution *Switchable | Type | Remarks |
| 543-391 | ID-C112MX |  | .5in/ 12.7mm | .0001in | Stem Ø 8mm M2.5x0.45 Thread | Less than 1.5N | *.00005in 0.001mm | ISO/JIS | - |
| 543-391B | ID-C112MX |  | .5in/ 12.7mm | .0001in | Stem Ø 8mm M2.5x0.45 Thread | Less than 1.5N | *.00005in 0.001mm | ISO/JIS | - |
| 543-392 | ID-C112EXB |  | .5in/ 12.7mm | .0001in | Stem dia3/8",#4-48 UNF Thread | Less than 1.5N | *.00005in 0.001mm | ISO/JIS | - |
| 543-392B | ID-C112EXB |  | .5in/ 12.7mm | .0001in | Stem dia3/8",#4-48 UNF Thread | Less than 1.5N | .00005in 0.001mm | ISO/JIS | - |
| 543-395 | ID-C112CMX |  | .5in/ 12.7mm | .0001in | Stem ø8mm M2.5x0.45 Thread | Less than 0.4-0.7N | *.00005in 0.001mm | ISO/JIS | Low measuring force |
| 543-395B | ID-C112CMX |  | .5in/ 12.7mm | .0001in | Stem ø8mm M2.5x0.45 Thread | Less than 0.4-0.7N | .00005in 0.001mm | ISO/JIS | Low measuring force |
| 543-396 | ID-C112CEX |  | .5in/ 12.7mm | .0001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 0.4, 0.6, 0.7N | *.00005in 0.001mm | ANSI/AGD | Low measuring force |
| 543-396B | ID-C112CEX |  | .5in/ 12.7mm | .0001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 0.4, 0.6, 0.7N | *.00005in 0.001mm | ANSI/AGD | Low measuring force |
| 543-401 | ID-C1012MX |  | .5in/ 12.7mm | .001in | Stem Ø 8mm M2.5x0.45 Thread | Less than 0.9N | .0005in 0.01mm | ISO/JIS | - |
| 543-401B | ID-C1012MX |  | .5in/ 12.7mm | .001in | Stem Ø 8mm M2.5x0.45 Thread | Less than 0.9N | .0005in 0.01mm | ISO/JIS | - |
| 543-402 | ID-C1012EX |  | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 0.9N | .0005in 0.01mm | ANSI/AGD | - |
| 543-402B | ID-C1012EX |  | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 0.9N | .0005in 0.01mm | ANSI/AGD | - |
| 543-405 | ID-C1012CMX |  | .5in/ 12.7mm | .001in | Stem ø8mm M2.5x0.45 Thread | Less than 0.2-0.5N | .0005in 0.01mm | ISO/JIS | Low measuring force |
| 543-405B | ID-C1012CMX | - | .5in/ 12.7mm | .001in | Stem ø8mm M2.5x0.45 Thread | Less than 0.2-0.5N | .0005in 0.01mm | ISO/JIS | Low measuring force |
| 543-406 | ID-C1012CEX |  | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 0.2, 0.3, 0.4, 0.5N | .0005in 0.01mm | ANSI/AGD | Low measuring force |
| 543-406B | ID-C1012CEX |  | .5in/ 12.7mm | .001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 0.2, 0.3, 0.4, 0.5N | .0005in 0.01mm | ANSI/AGD | Low measuring force |
| 543-471B | ID-C125MXB |  | 1in/ 25.4mm | 0.00012in | Stem ø8mm M2.5x0.45 Thread | Less than 1.8N | *.00005in 0.001mm | ISO/JIS | - |
| 543-472B | ID-C125EXB |  | 1in/ 25mm | .0001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 1.8N | *.00005in 0.001mm | ANSI/AGD | - |
| 543-475B | ID-C1025MXB | - | 1in/ 25.4mm | .001in | Stem ø8mm M2.5x0.45 Thread | Less than 1.8N | .0005in 0.01mm | ISO/JIS | - |
| 543-476B | ID-C1025EXB |  | 1in/ 25mm | .001in | Stem dia 3 8 in 4-48 UNF Thread | Less than 1.8N | .0005in 0.01mm | ANSI/AGD | - |
| 543-491B | ID-C150MXB |  | 2in/ 50.8mm | 0.00025in | Stem ø8mm M2.5x0.45 Thread | Less than 2.3N | *.00005in 0.001mm | ISO/JIS | - |
| 543-492B | ID-C150EXB |  | 2in/ 50mm | .0002in | Stem dia 3 8 in 4-48 UNF Thread | Less than 2.3N | *.00005in 0.001mm | ANSI/AGD | - |
| 543-495B | ID-C1050MXB | - | 2in/ 50.8mm | .0016in | Stem ø8mm M2.5x0.45 Thread | Less than 2.3N | .0005in 0.01mm | ISO/JIS | - |
| 543-496B | ID-C112CEXB |  | 2in/ 50mm | .0016in | Stem dia 3 8 in 4-48 UNF Thread | Less than 2.3N | .0005in 0.01mm | ANSI/AGD | - |
