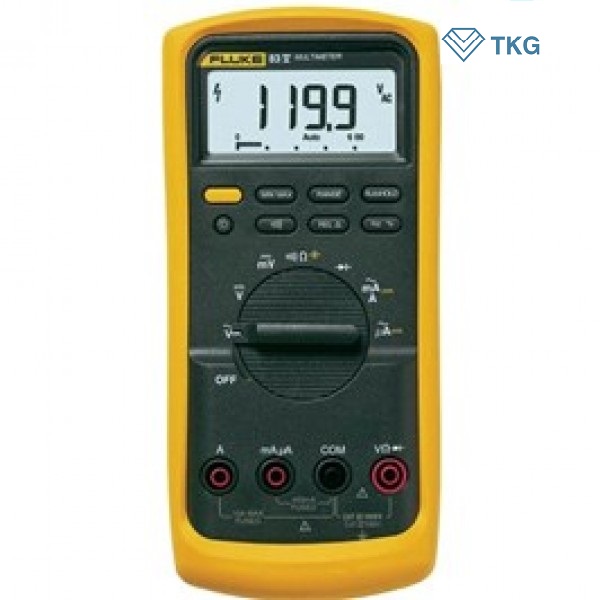

Đồng hồ vạn năng Fluke 83V
Model: 83V (83-5)
Hãng sản xuất: Fluke
Xuất xứ: USA
Bảo hành: 12 tháng
Thông số kỹ thuật:
DCV : 1000V / ±0.1%
ACV : 1000V / ±0.5%
DCA : 10A / ±0.4%
ACA : 10A / ±1.2%
Ω : 50 MΩ / ±0.4%
C : 9999uF / 1%
F : 200khz / ±0.005%
Duty cycle : 99.9% /±0.2%
Diode : 3V / ±(2%
Hiện thị : Màn hình số, có thanh Analog
Nhiệt độ hoạt động : –20°C to +55°C
Pin : 9V
Kích thước : 201x98x52mm
Trọng lượng: 355g
Phụ kiện : Que đo TL75, AC72, PIN, HDSD, CD
Đồng hồ vạn năng Fluke 83V
| Specifications | ||
| Voltage DC | Maximum voltage | 1000 V |
| Accuracy | ±(0.1% + 1) | |
| Maximum resolution | 100 µV | |
| Voltage AC | Maximum voltage | 1000 V |
| Accuracy | ±(0.5% + 2) | |
| Maximum resolution | 0.1 mV | |
| Current DC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(0.4% + 2) | |
| Maximum resolution | 0.01 mA | |
| Current AC | Maximum amps | 10 A (20 A for 30 seconds maximum) |
| Amps accuracy | ±(1.2% + 2) | |
| Maximum resolution | 0.1 µA | |
| Resistance | Maximum resistance | 50 MΩ |
| Accuracy | ±(0.4% + 1) | |
| Maximum resolution | 0.1 Ω | |
| Capacitance | Maximum capacitance | 9,999 µF |
| Accuracy | ±(1% + 2) | |
| Maximum resolution | 0.01 nF | |
| Frequency | Maximum frequency | 200 kHz |
| Accuracy | ±(0.005% + 1) | |
| Maximum resolution | 0.01 Hz | |
| Duty cycle | Maximum duty cycle | 99.9% |
| Accuracy | ±(0.2% per khz + 0.1%) | |
| Maximum resolution | 0.1% | |
| Conductance | Maximum conductance | 60.00 nS |
| Accuracy | ±(1.0% + 10) | |
| Maximum resolution | 0.01 nS | |
| Diode | Range | 3 V |
| Resolution | 1 mV | |
| Accuracy | ±(2% + 1) | |
| Duty cycle range | Accuracy | within ±(0.2% per kHz + 0.1%) |
| Environmental Specifications | ||
| Operating temperature | –20°C to +55°C | |
| Storage temperature | –40°C to +60°C | |
| Humidity (without condensation) | 0% – 90% (0°C – 35°C) 0% – 70% (35°C – 55°C) | |
| Operating altitude | 2000 m | |
| Safety Specifications | ||
| Overvoltage category | EN 61010–1 to 1000 V CAT III, 600V CAT IV | |
| Agency approvals | CSA, TÜV | |
| Mechanical and General Specifications | ||
| Display | Digital | 6000 counts updates 4/sec |
| Analog | 32 segments, updates 40/sec | |
| Frequency | 19,999 counts, updates 3/sec at > 10 Hz | |
| Size | 201 x 98 x 52 mm (with holster) | |
| Weight | 355 g | |
| Weigh with holster and flex–stand | 624 g | |
| Warranty | Lifetime | |
| Battery life | Alkaline~400 hours typical, without backlight | |
| Shock | 1 Meter drop per IEC 61010–1:2001 | |
| Vibration | Per MIL–PRF–28800 for a Class 2 instrument | |
