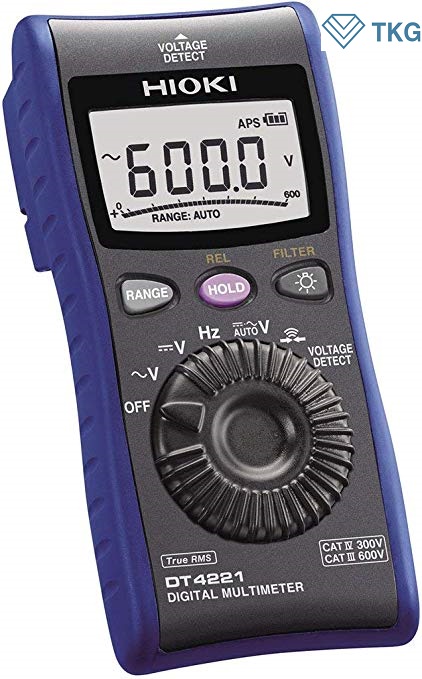

Đồng hồ vạn năng Hioki DT4221
Model: DT4221
Nhà sản xuất: Hioki
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
DCV: 600.0 mV đến 600.0 V /±0.5 % rdg. ±5 dgt.
ACV (True RMS): 6.000 V đến 600.0 V±1.0 % rdg. ±3 dgt
Tụ điện: 1.00 nF đến 100.0 mF /±1.0 % rdg. ±5 dgt.
Tần số ACV: 5 Hz đến 9.999 kHz /±0.1 % rdg. ±2 dgt.
Kiểm tra diode, liên tục
Dò điện áp : 80 V đến 600 V AC
Chức năng khác : Filter function, Display value hold, Relative display, Auto-power save
Display: 4-digits LCD, max. 6000 digits, bar graph
Nguồn: 4 pin LR03 alkaline
Hoạt động liên tục: 40 hours (back light OFF)
Kích thước và trọng lượng: 72 mm W × 149 mm H× 38 mm D,190 g
Cung cấp kèm theo: dây đo DT4911 ×1, vỏ cao su bảo vệ ×1, hướng dẫn sử dụng ×1, 4 pinLR03 Alkaline .
Đồng hồ vạn năng Hioki DT4221
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.
DC Voltage range | 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt. |
---|---|
AC Voltage range | 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3) |
Resistance range | N/A |
Capacitance range | 1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: ±1.0 % rdg. ±5 dgt. |
Frequency range | AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges Basic accuracy: ±0.1 % rdg. ±2 dgt. |
Continuity check | Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more Response time: 0.5 ms or more |
Diode test | Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V |
Voltage detection | 80 V to 600 V AC |
Other functions | Filter function, Display value hold, Relative display, Auto-power save |
Display | Main and sub displays: 4-digits LCD, max. 6000 digits, bar graph |
Display refresh rates | 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s ) |
Power supply | LR03 alkaline batteries ×1, Continuous use: 40 hours (back light OFF) |
Dimensions and mass | 72 mm (2.83 in) W × 149 mm (5.87 in) H× 38 mm (1.50 in) D,190 g (6.7 oz) (with batteries and holster) |
Accessories | Test Lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1 |
Test leads
Options for the DT4911 (DT4911 is a bundled accessory)
TEST LEAD DT4911
CAT IV 300V, CAT III 600V, 54cm (1.77ft) length
CONTACT PIN SET L4933
Attaches to the tip of the Test Lead L9207-10/DT4911, L9206, 60V DC/ 30V AC
SMALL ALLIGATOR CLIP SET L4934
Attaches to the tip of the L4932, L9207-10/DT4911, L9206, CAT III 300V, CAT II 600V
Other options
CARRYING CASE C0200
MAGNETIC STRAP Z5004
MAGNETIC STRAP Z5020
Heavy-duty
