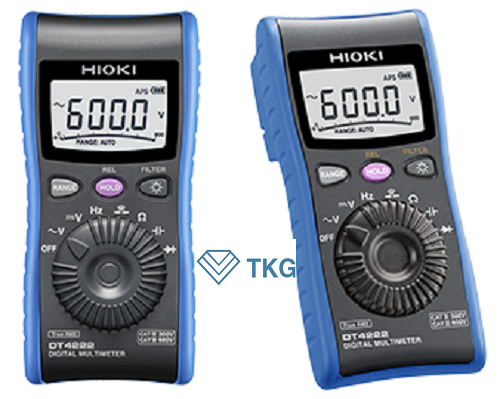

Đồng hồ vạn năng Hioki DT4222 (600V, True RMS)

Model: DT4222
Hãng sản xuất: HIOKI
Xuất xứ: Japan
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: DT4222
Nhà sản xuất: Hioki
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
DCV: 600.0 mV đến 600.0 V /±0.5 % rdg ±5 dgt.
ACV (true RMS): 6.000 V đến 600.0 V /±1.0 % rdg ±3 dgt
Điện trở: 600.0 Ω đến 60.00 MΩ /±0.9 % rdg ±5 dgt.
Tụ điện C: 1.000 μF đến 10.00 mF /±1.9 % rdg ±5 dgt.
Tần số: 5 Hz đến 9.999 kHz /±0.1 % rdg ±2 dgt.
Kiểm tra diode, liên tục,
Hiển thị :4-digits LCD, max. 6000 digits, bar graph
Nguồn: pin LR03 alkaline  ×4,
Hoạt động: 40 giờ (back light OFF)
Kích thước, trọng lượng:72 mmW × 14 9 mm H× 38 mm D,190 g
Cung cấp kèm theo: dây đo DT4911 ×1, vỏ cao su bảo vệ  ×1, hướng dẫn sử dụng×1, 4 pin LR03 Alkaline.

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.

DC Voltage range 600.0 mV to 600.0 V, 4 ranges, Basic accuracy: ±0.5 % rdg. ±5 dgt.
AC Voltage range 6.000 V to 600.0 V, 3 ranges, Frequency characteristics: 40 Hz - 1 kHz
Basic accuracy 40 - 500 Hz : ±1.0 % rdg. ±3 dgt. (True RMS, crest factor 3)
Resistance range 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.9 % rdg. ±5 dgt.
Capacitance range 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
Frequency range AC V measurement: 99.99 Hz (5 Hz or more) to 9.999 kHz, 3 ranges
Basic accuracy: ±0.1 % rdg. ±2 dgt.
Continuity Check Continuity threshold [ON]: 25 Ω or less (buzzer sound), [OFF]: 245 Ω or more
Response time: 0.5 ms or more
Diode test Open terminal voltage: 2.5 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V
Voltage Detection N/A
Other functions Filter function, Display value hold, Relative display, Auto-power save
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s )
Power supply LR03 alkaline batteries ×1, Continuous use: 40 hours (back light OFF)
Dimensions and mass 72 mm (2.83 in) W × 149 mm (5.87 in) H× 38 mm (1.50 in) D,190 g (6.7 oz) (with batteries and holster)
Accessories Test Lead DT4911 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×1



Test leads

Options for the DT4911 (DT4911 is a bundled accessory)

TEST LEAD DT4911

CAT IV 300V, CAT III 600V, 54cm (1.77ft) length



CONTACT PIN SET L4933

Attaches to the tip of the Test Lead L9207-10/DT4911, L9206, 60V DC/ 30V AC



SMALL ALLIGATOR CLIP SET L4934

Attaches to the tip of the L4932, L9207-10/DT4911, L9206, CAT III 300V, CAT II 600V

Other options

CARRYING CASE C0200





MAGNETIC STRAP Z5004





MAGNETIC STRAP Z5020

Heavy-duty
