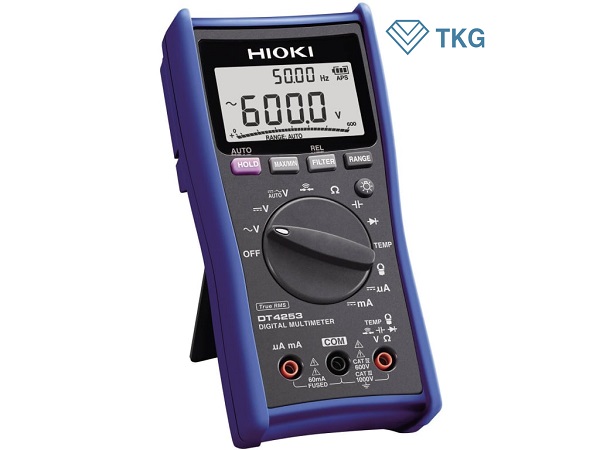

Đồng hồ vạn năng Hioki DT4253
Model : DT4253
Nhà sản xuất: Hioki
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
DCV: 600.0 mV đến 1000 V
Cấp chính xác: ±0.5 % rdg. ±5 dgt.
ACV (true RMS): 6.000 V đến 1000 V
Cấp chính xác: ±0.9 % rdg. ±3 dgt
Điện trở: 600.0 Ω to 60.00 MΩ
Cấp chính xác: ±0.7 % rdg. ±5 dgt.
Dòng điện DC: 60.00 μA đến 60.00 mA
Cấp chính xác: ±0.8 % rdg. ±5 dgt.
Tụ điện: 1.000 μF đến 10.00 mF
Cấp chính xác: ±1.9 % rdg. ±5 dgt.
Tần số: 5 Hz to 9.999 kHz,
Cấp chính xác: ±0.1 % rdg. ±1 dgt.
Kiểm tra liên tục, diode
Chức năng khác: Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option)
Hiển thị: 4-digits LCD, max. 6000 digits, bar graph
Nguồn: 4 pin LR03
Kích thước : 84 mm W × 174 mm H× 52 mm D
Trọng lượng: 390 g
Phụ kiện kèm theo: dây đo L9207-10 ×1, vỏ cao su×1, hướng dẫn sử dụng ×1, 4 pin LR03.
Đồng hồ vạn năng Hioki DT4253
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.
| DC Voltage range | 600.0 mV to 1000 V 5 ranges, Basic accuracy: ±0.3 % rdg. ±5 dgt. |
|---|---|
| AC Voltage range | 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz Basic accuracy 40 - 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| AUTO AC/DCV | Yes |
| Resistance range | 600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±5 dgt. |
| DC Current range | 60.00 μA to 60.00 mA, 4 ranges, Basic accuracy: ±0.8 % rdg. ±5 dgt. |
| From 4 to 20mA Percentage conversion display | Yes |
| AC Current range (use with Clamp on probes) | 10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 - 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3) |
| Temperature (thermocouples) | K: -40.0 to 400.0 °C , Add the Temperature probe accuracy to basic accuracy: ±0.5 % rdg. ±2 °C |
| Voltage detection | N/A |
| Capacitance range | 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt. |
| Frequency range | 99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage), Basic accuracy: ±0.1 % rdg. ±1 dgt. |
| Continuity check | Continuity threshold [ON]: 25 Ω or less , [OFF]: 245 Ω or more, Response time: 0.5 ms or more |
| Diode test | Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less, Threshold of forward voltage: 0.15 V to 1.5 V |
| Other functions | Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option) |
| Display | Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph |
| Display refresh rates | 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s) |
| Power supply | LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF) |
| Dimensions and mass | 84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in)D, 390 g (13.8 oz) (including batteries and holster) |
| Accessories | Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4 |
Test leads
Options for the L9207-10 (L9207-10 is a bundled accessory)
CONTACT PIN SET L4933
Attaches to the tip of the Test Lead L9207-10/DT4911, L9206, 60V DC/ 30V AC
SMALL ALLIGATOR CLIP SET L4934
Attaches to the tip of the L4932, L9207-10/DT4911, L9206, CAT III 300V, CAT II 600V
TEST LEAD L9207-10
90 cm (2.95 ft) length
Current measurement
For DT4251/4253 Clamp-on current sensor
(Note: Use with the Conversion Adapter 9704, required for connecting Clamp On Probes to DT4281/4251/4253)
CLAMP ON PROBE 9010-50
• Use for level measurement • 40 Hz to 1 kHz • 10 to 500 A AC • φ 46 mm (1.81 in) core dia.
CLAMP ON PROBE 9018-50
• Excellent phase characteristics • 40 Hz to 3 kHz • 10 to 500A AC • φ 46 mm (1.81 in) core dia.
CLAMP ON PROBE 9132-50
• Use for level measurement • 40 Hz to 1 kHz • 20 to 1000A AC • φ 55 mm (2.17 in) core dia.
CONVERSION ADAPTER 9704
Receiving end: Female BNC; Output end: Male banana-plug *Not compatible with older generation Memory Hicorders with banana input terminals
Options for Test leads
Options for the L4930
GRABBER CLIP 9243
Attaches to the tip of the banana plug cable, Red/ Black: 1 each, 196 mm (7.72 in) length, CAT III 1000 V
CONNECTION CABLE SET L4930
1.2 m (3.94 ft) length
EXTENSION CABLE SET L4931
Expands the length of the cable with banana plug, 1.5 m (4.92 ft) length
TEST PIN SET L4932
Attaches to the tip of the banana plug cable, CAT IV 600V, CAT III 1000V
ALLIGATOR CLIP SET L4935
Attaches to the tip of the banana plug cable, CAT IV 600V, CAT III 1000V
BUS BAR CLIP SET L4936
Attaches to the tip of the banana plug cable, CAT III 600V
MAGNETIC ADAPTER SET L4937
Attaches to the tip of the banana plug cable, CAT III 1000V
TEST PIN SET L4938
Attaches to the tip of the banana plug cable, CAT III 600V
BREAKER PIN SET L4939
Attaches to the tip of the banana plug cable, CAT III 600V
Temperature measurement
For DT4253 thermocouples
THERMOCOUPLES(K) DT4910
K type, tip exposed, 0.3 mm (0.01 in) diameter, 80 cm (2.62 ft) length, -40 to 260 °C (-40 to 500 °F), tolerance ±2.5 °C
Other options
CARRYING CASE 3853
Store with peripherals cable
CARRYING CASE C0201
CARRYING CASE C0202
COMMUNICATION PACKAGE (USB) DT4900-01
For DT4280s/4250s, compatible to Windows 8.1/ 8/ 7/ Vista
MAGNETIC STRAP Z5020
Heavy-duty
