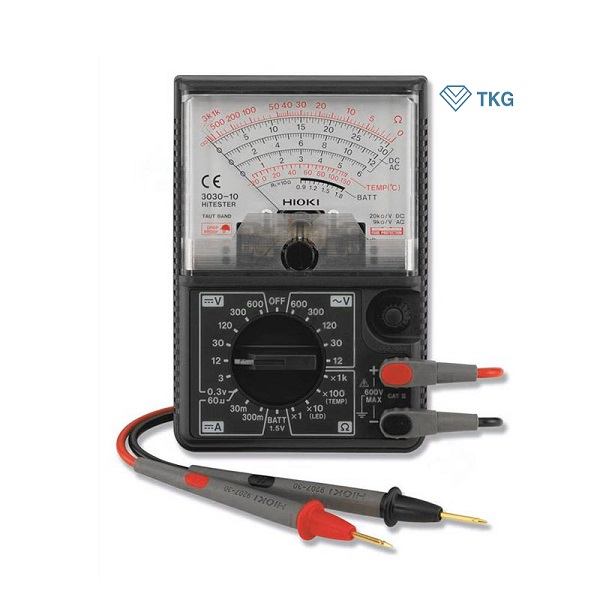

Đồng hồ vạn năng tương tự Hioki 3030-10
Model : 3030-10
Nhà sản xuất: Hioki
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
DCV : 0.3 V/ 3/12/30/120/300/600 V / ±2.5 % f.s
ACV : 30/120/300/600 V / ±2.5 % f.s
DCA : 60 µA/30 m/300 mA / ±3 % f.s
Ω : 0 to 3 k-ohm / ±3 % f.s
Kiểm tra nguồn : 0.9 ~ 1.8V / ±6 % f.s.
Nhiệt độ : -20 to 150°C, / ±3 %
Nguồn : P6P (AA) x 2
Kích thước : 95mm x 141mm x 39mm
Khối lượng : 280g
Phụ kiện : Que đo, Pin, HDSD, Hộp đựng
Đồng hồ vạn năng tương tự Hioki 3030-10
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
DC voltage range | 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V) Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V |
---|---|
AC voltage range | 12 V (9 kΩ/V) Accuracy: ±4 % f.s. 30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s. Average rectifier effective value, Max. rated voltage: 600 V |
DC current range | 60 µA/30 m/300 mA (300 mV internal voltage drop) Accuracy: ±3 % f.s. |
Resistance range | 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k Accuracy: ±3 % of scale length |
Battery check | 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s. |
Temperature scale | Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers. |
Power supply | For resistance measurement range, R6P (AA) ×2 batteries |
Dimensions and mass | 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz) |
Accessories | Test Lead L9207-30 ×1, Spare fuse ×1, R6P (AA) manganese batteries ×2, Instruction manual ×1, Carrying case 9390 ×1 |
*The L9207-30 and the 9390 are bundled
HIGH VOLTAGE PROBE 9017
HIGH-VOLTAGE PROBE 9017 Up to 30kV DC, 1.4 m (4.59 ft) length, not CE marked
CARRYING CASE 9390
Plastic type
TEST LEAD L9207-30
70 cm (2.30 ft) length
