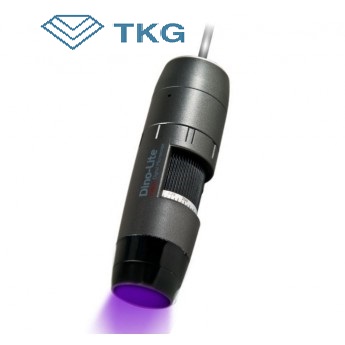

Kính hiển vi Anmo AM4115T-CFVW Dino-lite
Model: AM4115T-CFVW
Hãng sản xuất: Anmo
Xuất xứ: TAIWAN
Bảo hành: 12 tháng
Thông số kỹ thuật Kính hiển vi Anmo AM4115T-CFVW Dino-lite:
Kết nối: USB 2.0
Độ phân giải: 1.3M pixels (SXGA)
Độ phóng đại: 20~220x
Cảm biến: Color CMOS
Tốc độ ghi hình: Up to 30fps
Đèn: 7 filtered 400nm excitation lighting with 430nm emission filter and one white light switched by software.
Hệ điều hành: Windows 8, 7, Vista, XP MAC OS 10.4 or later
Trọng lượng: 100(g)
Kích thước: 10.5cm (H) x 3.2cm (D)
AM4115T-CFVW
Applicable for research with cyan and a wide range of fluorescence, the Dino-Lite EDGE AM4115T-CFVW digital microscope is one of the world smallest fluorescence microscopes with near UV excitation LEDs integrated. With its small form factor, it impacts the microscopy world by change how the fluorescence microscope can be used for research by no longer needing to be bulky, heavy, expensive, or delicate.
Model | AM4115T-CFVW Dino-Lite Edge |
Interface | USB 2.0 |
Product Resolution | 1.3M pixels (SXGA) |
Magnification Rate | 20x~220x |
Sensor | Color CMOS |
Frame Rate | Up to 30fps |
Save Formats | Image: DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM DinoXcope: PNG, JPEG Movie: DinoCapture2.0: WMV, FLV, SWF DinoXcope: MOV |
Microtouch | Touch sensitive trigger on the microscope for taking pictures |
Lighting | Using 7 violet LEDs for excitation lighting and has a 430nm emission filter/1 white LED switched by software |
Measurement Function | Yes |
Calibration Function | Yes |
Operating System Supported | Windows 10, 8, 7, Vista, XP MAC OS 10.4 or later |
Unit Weight | 100g |
Unit Dimension | 10.5cm (H) x 3.2cm (D) |
Package Dimensions | 16cm (L) x 16cm (W) x 6cm (H) |
Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
---|---|---|---|---|---|---|---|---|
Working Distance | 60.2 | 33.5 | 20.9 | 13.9 | 4.1 | 5.6 | 9.9 | 11.9 |
Field of View | 19.5 x 15.6 | 13 x 10.4 | 9.8 x 7.8 | 7.8 x 6.3 | 3.9 x 3.1 | 2.6 x 2.1 | 2 x 1.6 | 1.8 x 1.4 |
Depth of Field | 2.5 | 1.8 | 1.5 | 0.1 |
