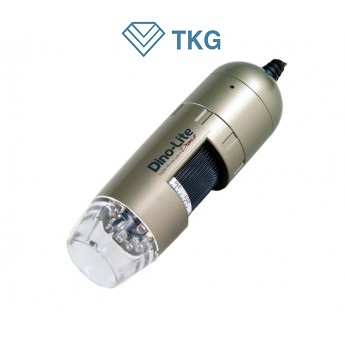

Kính hiển vi điện tử Anmo AM4113T Dino-liteModel: AM4113T
Hãng sản xuất: Anmo
Xuất xứ: Taiwan
Bảo hành: 12 tháng
Thông số kỹ thuật Kính hiển vi điện tử Anmo AM4113T Dino-lite:
Giao tiếp: USB 2.0
Độ phân giải: 1.3M pixels (SXGA)
Mức phóng đại: 20x~50x. 250x
Cảm biến: Color CMOS
Đèn: 8 led
Tốc độ lấy hình: Up to 30fps
đo lường, hiệu chuẩn: có
Kính hiển vi điện tử Anmo AM4113T Dino-lite
Highlights
10x - 50x, 220x
Optical magnification power
1280 × 1024 pixels
Capture in full detail with resolution up to 1280 × 1024 pixels
USB 2.0
Simple setup
Windows and Mac
Compatible with Windows 7, 8, 10 & Mac OS 10.5+ including 32-bit and 64-bit systems.
Annotate & Measure
Use simple tools to draw lines, shapes, and text on the image. Calibrate and measure lines, circles, angles & more.
Two-year warranty & free tech support
All Dino-Lite microscopes feature a two-year warranty and include free U.S. based tech support for the life of the product.
Language options
Software interface defaults to English and can be changed to any of 25 additional translations.
Barcode reader
Software feature to use camera for reading from QR codes and over 20 other types of barcodes.
| LEDs | White (8) |
|---|---|
| Polarization | No |
| Dimensions | 10.5cm (L) x 3.2cm (D) (4.13" x 1.26") |
| Weight | 105g (3.7 oz) |
| Cable Length | 182cm (71.65 in) |
| Magnification Range | 10x - 50x, 220x |
| Working Distance | Standard |
| Lens Type | Glass |
| Megapixels | 1.3 MP |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 pixels |
| Frame Rate (max) | 30 FPS |
| Image Save Formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
| Image Save Formats (Mac OS) | JPEG, PNG |
| Video Save Formats (Windows) | WMV, FLV, SWF |
| Video Save Formats (Mac OS) | MOV |
| Connection Type | USB 2.0 |
|---|---|
| Included Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Imaging Standards | UVC |
| Flexible LED Control | No |
| Measurement | Yes |
| Automatic Magnification Reading | No |
| Extended Depth of Field | No |
| Enhanced Dynamic Range | No |
| Magnification Lock | Yes |
| Body Material | ABS Plastic |
| Microtouch Sensor | Yes |
| Package Includes | Microscope, Carry Pouch, Software CD, Standard Calibration Target |
| Warranty Period | 2 years |
| Manufactured in | Taiwan |
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
| Regulatory Approval | CE, FCC |
| Magnification | 20 | 30 | 40 | 50 | 60 | 220 | 230 | 240 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 48.7 | 21.7 | 9.0 | 1.9 | -2.3 | -0.1 | 1.0 | 2.1 |
| Field of View | 19.6 x 15.6 | 13.0 x 10.4 | 9.8 x 7.8 | 7.8 x 6.3 | 6.5 x 5.2 | 1.8 x 1.4 | 1.7 x 1.4 | 1.6 x 1.3 |
| Depth of Field |
| Magnification | 20 | 30 | 40 | 50 | 60 | 220 | 230 | 240 |
|---|---|---|---|---|---|---|---|---|
| Working Distance | 1.917 | 0.854 | 0.354 | 0.075 | -0.091 | -0.004 | 0.039 | 0.083 |
| Field of View | 0.772 x 0.614 | 0.512 x 0.409 | 0.386 x 0.307 | 0.307 x 0.248 | 0.256 x 0.205 | 0.071 x 0.055 | 0.067 x 0.055 | 0.063 x 0.051 |
| Depth of Field |
