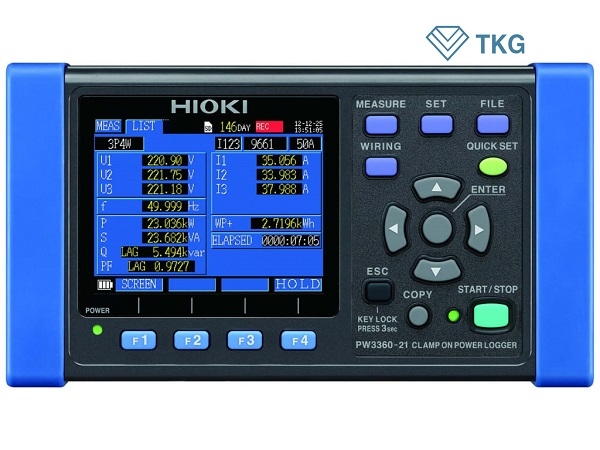

Máy đo công suất HIOKI PW3360-21
Model: PW3360-21
Hãng sản xuất: Hioki
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
- Kiểu đo: 1 pha 2 dây, 1 pha 3 dây, 3 pha 3 dây, 3 pha 4 dây. 3 kênh đo dòng, 50/60 Hz
- Các thông số đo:
+ Điện áp/dòng điện hiệu dụng (RMS)Voltage/current RMS.
+ Giá trị sóng dòng điện điện áp.
+ Góc pha sóng dòng điện/ điện áp voltage /current fundamental wave phase angle,
+ Tần số frequency,
+ Đỉnh dạng sóng dòng điện/ điện áp (giá trị tuyệt đối) voltage/current waveform peak (absolute value).
+ Công suất hữu công, công suất vô công, biểu kiến, công suất tiêu thụ.
+ Hệ số công suất.
+ Đánh giá nhu cầu năng lượng ,. . .
+ Xung đầu vào
- Chức năng kiểm tra Sóng hài
- Dải đo điện áp: 600 V AC
- Dải đo dòng điện: Phụ thuộc kìm đo (chọn mua thêm kìm đo dòng)
+ 500.00 mA tới 5.0000 kA AC (tùy thuộc vào loại kẹp dòng).
+ 50.000 mA tới 5.0000 A AC (chỉ với kẹp dòng dò).
- Dải đo công suất: 300.00 W tới 9.0000 MW.
- Sai số cơ bản.
+ Điện áp AC: ±0.3% rdg. ±0.1% f.s
+ Dòng điện AC: ±0.3% rdg. ±0.1% f.s. + sai số của kẹp dòng.
+ Công suất hữu công: ±0.3% rdg. ±0.1% f.s. + sai số của kẹp dòng (với hệ số công suất = 1).
- Sai số của kẹp dòng: ±0.3% rdg. ±0.01% f.s.
- Bộ nhớ: Thẻ nhớ SD, bộ nhớ trong (khoảng 320 KB).
- Chu kỳ ghi: Từ 1 tới 30 giây, từ 1 phút tới 60 phút, 14 lựa chọn.
- Giao diện: LAN, USB.
- Nguồn cấp: AC ADAPTER Z1006: (12 V, 1.25 A), điện áp vào từ 100 VAC tới 240 VAC, 50/60 Hz, BATTERY PACK 9459: (Ni-MH DC7.2 V 2700 mAh)
- Kích thước: 180 mm W × 100 mm H × 48 mm D.
- Trọng lượng: 550g (không bao gồm PW9002).
Phụ kiện: Dây đo điện áp L9438-53 ×1 set, AC ADAPTER Z1006 ×1, Cáp USB ×1, sách hướng dẫn ×1, hướng dẫn đo ×1
Máy đo công suất HIOKI PW3360-21
CLAMP ON POWER LOGGER PW3360
Portable Power Loggers for Energy Audits and Energy Conservation
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Measurement line & number of circuits | 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels |
|---|---|
| Measurement items | Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power (with lag/lead display), apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand, pulse input [PW3360-21 only]: Harmonic voltage level, harmonic current level, harmonic power level, content percentage, phase angle, total harmonic distortion (THD-F or THD-R), up to 40th order |
| Voltage ranges | 600 V AC (Effective measurement range: 90.00 V to 780.00 V) |
| Current ranges | 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only) |
| Power ranges | 300.00 W to 9.0000 MW (depends on voltage/current combination and measured line type) |
| Basic accuracy | Voltage : ±0.3% rdg. ±0.1% f.s Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy (at power factor = 1) |
| Display update rate | 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication) |
| Save destination | SD memory card, or internal memory at real time |
| Data save interval | 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections |
| Save items | Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data |
| Interfaces | SD/SDHC memory card LAN 100BASE-TX: HTTP server function, remote settings via communication program, data download USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download Pulse output: proportional to active power consumption when measuring integral power consumption, Isolated open-collector signal |
| Functions | Connection check, Quick Set navigation guide, clock, pulse input |
| Power supply | AC Adapter Z1006: (100 to 240 V AC, 50/60 Hz), 40 VA (including AC adapter) Battery Pack 9459: (DC 7.2 V, 3 VA, charging time 6 hr 10 m), 8 hours of continuous use (with back light off) |
| Dimensions and mass | 180 mm (7.09 in) W × 100 mm (3.94 in) H × 48 mm (1.89 in) D, 550 g (19.4 oz) without PW9002 180 mm (7.09 in) W × 100 mm (3.94 in) H × 67.2 mm (2.65 in) D, 830 g (29.3 oz) with PW9002 |
| Accessories | Voltage cord L9438-53 ×1 set, AC adapter Z1006 ×1, USB cable ×1, Instruction manual ×1, Measurement guide ×1, Color clip ×1 set: red, yellow, blue, white/two each, for color-coding clamp sensors, Spiral tubes for grouping clamp sensor cords ×5 |
Current measurement
For power or load current measurement
(1 sensor necessary for single-phase measurements, and 2 or 3 sensors required for 3-phase measurements)
CLAMP ON SENSOR 9660
• 40Hz to 5kHz • 100 A AC rated input • φ 15 mm (0.59 in) core dia.
CLAMP ON SENSOR 9661
• 40Hz to 5kHz • 500 A AC rated input • φ 46 mm (1.81 in) core dia.
CLAMP ON SENSOR 9669
• 40Hz to 5kHz • 1000 A AC rated input • φ 55 mm (2.17 in) Core dia.
CLAMP ON SENSOR 9694
• 40Hz to 5kHz • 5A AC rated input • φ 15 mm (0.59 in) core dia.
CLAMP ON SENSOR 9695-02
• 40Hz to 5kHz • 50 A AC rated input • φ 15 mm (0.59 in) core dia.
CLAMP ON SENSOR 9695-03
• 40Hz to 5kHz • 100 A AC rated input • φ 15 mm (0.59 in) core dia.
AC FLEXIBLE CURRENT SENSOR CT9667
• 10 Hz to 20 kHz (±3dB) • 5000 A/ 500 A AC rated input
CONNECTION CABLE 9219
Connect with the 9695-02/ -03, Output BNC terminal, 3m (9.84ft) length
Leak current
For leak current measurement (not capable of power measurement)
Caution: Up to 5 A on Model PW3360
CLAMP ON LEAK SENSOR 9657-10
• 40 Hz to 5 kHz • Rated 5 A AC • φ 40 mm (1.57 in) core dia.
CLAMP ON LEAK SENSOR 9675
• 40 Hz to 5 kHz • Rated 5 A AC • φ 30 mm (1.18 in) core dia.
Adapter
For clamp sensor
CLAMP ON ADAPTER 9290-10
• Primary 1000A, secondary 100A (1/10 ratio) output • Superior phase angle characteristics for power
Voltage input
*L9438-53 is bundled with the PW3360-20/-21
MAGNETIC ADAPTER 9804-01
Attaches to the tip of cord, red ×1, φ11 mm (0.43 in)
MAGNETIC ADAPTER 9804-02
Attaches to the tip of cord, black ×1, φ11 mm (0.43 in)
VOLTAGE CORD L9438-53
Black/ Red/ Yellow/ Blue, 3 m (9.84 ft) length, Alligator clip ×4
PATCH CORD L1021-01
Banana branch-banana, Red: 1, Cable length: 0.5 m, For branching from the L9438s or L1000s, CAT IV 600 V, CAT III 1000 V
PATCH CORD L1021-02
Banana branch-banana, Black: 1, Cable length: 0.5 m, For branching from the L9438s or L1000s, CAT IV 600 V, CAT III 1000 V
Storage media
SD Card Precaution
Use only SD Cards sold by HIOKI. Compatibility and performance are not guaranteed for SD cards made by other manufacturers. You may be unable to read from or save data to such cards.
SD MEMORY CARD 2GB Z4001
2 GB capacity
SD MEMORY CARD Z4003
8 GB capacity
Power supply
*Z1006 is bundled with the PW3360-20/-21.
Model 9459 is a replacement battery pack included with the Battery Set PW9002.
BATTERY PACK 9459
NiMH, Charges while installed in the main unit
BATTERY SET PW9002
Battery case and Battery Pack 9459 Set
VOLTAGE LINE POWER ADAPTER PW9003
For PW3360, supplies power from measurement lines, up to 240V AC
AC ADAPTER Z1006
100 to 240 V AC
Other options
CARRYING CASE C1005
For PW3360/3365 series, for storing options
PC peripherals
POWER LOGGER VIEWER SF1001
• Easy graphical processing of measurement data saved with the PW3360/3365 series, 3169 series on a PC
GENNECT CROSS SF4000
• Software automatically recognizes LAN-connected measuring instrument • Display acquired data as graphs in real-time • Windows compatible
LAN CABLE 9642
Straight Ethernet cable, supplied with straight to cross conversion adapter, 5 m (16.41 ft) length.
