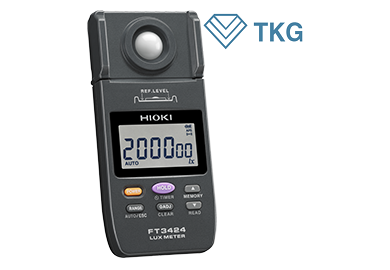

Máy đo cường độ ánh sáng HIOKI FT3424
Model: FT3424
Hãng sản xuất: Hioki
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
- Thang đo:
+ 20 lx: 0.00 lx đến 20.00 lx /1 count step
+ 200 lx: 0.0 lx đến 200.0 lx
+ 2000 lx: 0 lx đến 2000 lx
+ 20.000 lx: 0(0) lx to 2000(0) lx /10 count step
+ 200.000 lx: 0(00) lx〜2000(00) lx /100 count step
- Chế độ chọn giải: Tự động/ bằng tay
- Độ tuyến tính: ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx)
- Thời gian hồi đáp: Auto range: within 5 seconds, Manual range: within 2 seconds
- D/A output: Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded)
- Độ chính xác đầu ra: ±1% rdg. ±5 mV (at display count)
- Chức năng: Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off function, Buzzer sound, Backlight, Zero adjustment
- Nguồn: pin LR6 Alkaline battery ×2 (continuous use 300 hours), Max. rated
- Kích thước: 78 mm W × 170 mm H × 39 mm D
- Trọng lượng: 310 g
- Phụ kiện kèm theo: HDSD×1, pin LR6 Alkaline×2, túi đựng ×1, dây đeo ×1, Cáp USB (0.9 m/2.95 ft) ×1, CD ×1
Máy đo cường độ ánh sáng HIOKI FT3424
LUX METER
FT3424
Light Meter with Broad Coverage from Low to High Illuminance
Basic specifications (Accuracy guaranteed for 2 years, Post-adjustment accuracy guaranteed for 2 years)
| Standards | DIN 5032-7: 1985 class B, JIS C 1609-1: 2006 general AA class |
|---|---|
| Light receiving element | Silicon photo diode |
| Range selection | Auto/ Manual |
| Linearity | ±2% rdg. (Multiply by 1.5 for display values in excess of 3000 lx.) |
| Accuracy guarantee for temperature and humidity | 21 °C to 27 °C (69.8 °F to 80.6 °F), 75% rh or less (non-condensing) |
| Response time | Auto range: within 5 seconds, Manual range: within 2 seconds |
| D/A output | Output level: 2 V/range f.s. (2.5 V is output when the range f.s. is exceeded.) Output accuracy: ±1% rdg. ±5 mV (at display count) |
| Functions | Timer hold function, Memory function (Up to 99 measured data can be saved.), Hold, Auto power off function, Buzzer sound, Backlight, Zero adjustment |
| Power supply | LR6 Alkaline battery ×2 (continuous use 300 hours), Max. rated power 500 mVA, or R6 Manganese battery ×2, or USB bus power (5 VDC) |
| Dimensions and mass | 78 mm (3.07 in)W × 170 mm (6.69 in)H × 39 mm (1.54 in)D, 310 g (10.9 oz) (including the batteries) |
| Accessories | Instruction Manual ×1, LR6 Alkaline battery ×2, Sensor cap (with strap) ×1, Carrying case (soft) ×1, Strap (for instrument) ×1, USB cable (0.9 m/2.95 ft) ×1, CD (USB driver, dedicated computer application software, and communications specifications) ×1 |
| Range | Measurement range | Display steps |
|---|---|---|
| 20 lx | 0.00 lx to 20.00 lx | 1 count step |
| 200 lx | 0.0 lx to 200.0 lx | |
| 2000 lx | 0 lx to 2000 lx | |
| 20000 lx | 0(0) lx to 2000(0) lx | 10 count step |
| 200000 lx | 0(00) lx〜2000(00) lx | 100 count step |
Options
C0202: For storing the instrument with the L9820, L9094, and USB Cable
C0201: For storing the instrument with the L9094 and USB Cable
CARRYING CASE C0201
CARRYING CASE C0202
CONNECTION CABLE L9820
Use when positioning the FT3424 sensor unit and display unit separately during use.
OUTPUT CORD L9094
φ 3.5 mm (0.14 in) dia. mini plug to banana, 1.5 m (4.92 ft) length
