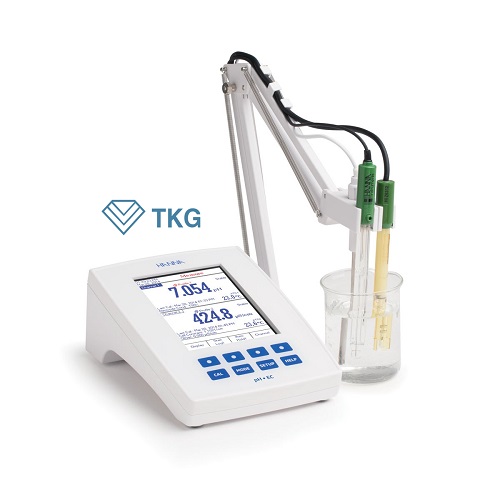

Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 (pH/ORP/ EC/TDS/Độ Mặn/Trở Kháng)

Model: HI5521-02
Hãng sản xuất: Hanna
Xuất xứ: Rumani.
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02

Model: HI5521-02
Hãng sản xuất: HANNA
Xuất xứ: RUMANI
Bảo hành: 12 tháng
Thông số kỹ thuật:
pH
 - Thang đo: -2.000 to 20.000 pH
 - Độ phân giải: 0.1, 0.01, 0.001 pH
 - Độ chính xác: ±0.1 pH, ±0.01 pH, ±0.002 pH ±1 LSD
 - Hiệu chuẩn: Tự động, 5 điểm với 8 bộ đệm có sẵn và 5 đệm
 - Bù nhiệt: Tự động hoặc bằng tay từ -20 đến 120 độ C
mV
 - Thang đo: ±2000 mV
 - Độ phân giải: 0.1 mV
 - Độ chính xác: ±0.2 mV ±1 LSD
 - Relative mV Offset: ±2000 mV
EC
 - Thang đo: 0.000 to 9.999 μS/cm, 10.00 to 99.99 μS/cm, 100.0 to 999.9 μS/cm, 1.000 to 9.999 mS/cm, 10.00 to 99.99 mS/cm, 100.0 to 1000.0 mS/cm EC thực tế*
 - Độ phân giải: 0.001 μS/cm, 0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
 - Độ chính xác: ±1% giá trị (±0.01 μS/cm)
 - Hiệu chuẩn: Nhận chuẩn tự động (0.000 μS/cm, 84.00 μS/cm, 1.413 mS/cm, 5.000 mS/cm, 12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm) hoặc chuẩn người dùng; hiệu chuẩn 1 điểm hoặc đa điểm
TDS
 - Thang đo: 0.000 to 9.999 ppm, 10.00 to 99.99 ppm, 100.0 to 999.9 ppm, 1.000 to 9.999 ppt, 10.00 to 99.99 ppt, 100.0 to 400.0 ppt TDS thực tế* (với hệ số 1.00)
 - Độ phân giải: 0.001 ppm, 0.01 ppm, 0.1 ppm, 1 ppm, 0.001 ppt, 0.01 ppt, 0.1 ppt
 - Độ chính xác: ±1% giá trị (±0.01 ppm)
Trở kháng
 - Thang đo: 1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 KΩ•cm; 10.0 to 99.9 KΩ•cm; 100 to 999 KΩ•cm; 1.00 to 9.99 MΩ•cm; 10.0 to 100.0 MΩ•cm
 - Độ phân giải: 0.1 Ω•cm; 1 Ω•cm; 0.01 KΩ•cm; 0.1 KΩ•cm; 1 KΩ•cm; 0.01 MΩ•cm; 0.1 MΩ•cm*
 - Độ chính xác: ±2% giá trị (± 1 Ω•cm)
Độ mặn
  Thang đo: - Tỉ lệ thực hành: 0.00 to 42.00 psu;
            - Tỷ lệ nước biển tự nhiên: 0.00 to 80.00 ppt;
            - Tỷ lệ %: 0.0 to 400.0%
  Độ phân giải: 0.01 cho tỉ lệ thực hành và nước biển tự nhiên ; 0.1% cho tỷ lệ %
  Độ chính xác: ± 1 % giá trị
  Hiệu chuẩn: Tỷ lệ %: 1 điểm (chuẩn HI7037)
Nhiệt độ
 - Thang đo: -20.0 to 120.0 ºC, -4.0 to 248.0 °F ; 253.15 to 393.15 K**
 - Độ phân giải: 0.1 °C, 0.1 °F; 0.1 K
 - Độ chính xác: ±0.2 °C, ±0.4 °F; ±0.2 K (không đầu dò)
 - Bù nhiệt: Không kích hoạt, tuyến tính hoặc phi tuyến tính (nước tự nhiên)
 - Hệ số nhiệt độ: 0.00 đến 10.00 %/oC
 - Nhiệt độ tham khảo: 5.0 đến 30.0oC
Hằng số cell: 0.0500 to 200.00
Loại cell: 4 cells
Điện cực: điện cực pH HI1131B thân thủy tinh với đầu nối BNC cáp 1 m (3.3') (bao gồm); đầu dò EC/TDS HI76312 bạch kim, 4 vòng với cáp 1m (3.3') (bao gồm)
Đầu dò nhiệt độ: HI7662-T thép không gỉ với cáp 1m (3.3') (bao gồm)
USP ⟨645⟩; có
Cổng kết nối PC: USB
Kênh đầu vào: 1 pH/ORP + 1 EC/TDS/Độ mặn/Trở kháng
GLP: Hằng số cell/offset đầu dò, nhiệt độ tham khảo, hệ số bù nhiệt, điểm chuẩn, thời gian chuẩn
Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 Nguồn điện: Adapter 12V (bao gồm)
Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 Môi trường: 0 đến 50°C, RHmax 95% không ngưng tụ
Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 Kích thước: 160 x 231 x 94 mm
Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 Khối lượng: 1.2 Kg
Bảo hành: 12 tháng cho máy và 06 tháng cho điện cực đi kèm
Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 Cung cấp gồm: HI5521 được cung cấp kèm đầu dò pH HI1131B, đầu dò nhiệt độ HI7662-T, đầu dò độ dẫn HI76312, giá đỡ điện cực, gói dung dịch chuẩn pH4.01 và pH7.01, gói dung dịch vệ sinh điện cực HI700601, 30mL dung dịch châm điện cực HI7082, adapter 12V và HDSD
              HI5521-01: 115V
              HI5521-02: 230V
Lưu ý: * Độ dẫn chưa bù nhiệt (hoặc TDS) là giá trị độ dẫn điện (hoặc TDS) không cần bù nhiệt. ** Giảm đến giới hạn đầu dò thực tế

TÍNH NĂNG NỔI BẬT Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02
- Giao diện tương tác người dùng - Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 cho phép hiển thị các phép đo trong các chế độ khác nhau: phép đo cơ bản có hoặc không có thông tin GLP, thời gian thực, và ghi dữ liệu. Chỉ số ổn định hiệu chuẩn có thể được điều chỉnh từ nhanh, trung bình, và chính xác. Giới hạn báo động có thể được cài đặt bên trong hoặc bên ngoài giới hạn cho phép.
- Màn hình đồ họa LCD màu - Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 có màn hình LCD đồ họa màu sắc với trợ giúp trên màn hình, đồ họa, và cấu hình tùy chỉnh màu sắc. Màn hình hiển thị cho phép thời gian thực và các phím ảo hỗ trợ trực quan cho người dùng.
- Bàn phím cảm ứng điện dung - Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 cung cấp bàn phím cảm ứng điện dung để điều hướng chính xác cho menu và màn hình. Có 4 phím chuyên dụng được sử dụng thường xuyên bao gồm hiệu chuẩn và chuyển đổi chế độ đo và 4 phím ảo thay đổi khi sử dụng. Công nghệ cảm ứng điện dung đảm bảo các nút bấm không bao giờ bị kẹt.
-Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02  Đầu dò độ dẫn 4 vòng - Tất cả các phép đo được thực hiện với đầu dò độ dẫn 4 vòng HI76312 được tích hợp cảm biến nhiệt độ để bù nhiệt độ tự động. 4 vòng được làm từ bạch kim và thân điện cực được làm bằng nhựa Polyetherimide (PEI) có khả năng kháng nhiều hóa chất mạnh. Thiết kế 4 vòng cho phép đo trong nhiều thang đo rộng.
-Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02  Lựa chọn Hiệu chuẩn – Hiệu chuẩn pH có các tùy chọn nhận đệm tự động, bán tự động, trực tiếp và nhập bằng tay trực tiếp có sẵn cho hiệu chuẩn đến năm điểm, với tám bộ đệm tiêu chuẩn và lên đến năm bộ đệm tùy chỉnh. Đối với hiệu chuẩn độ dẫn có thể được thiết lập để nhận chuẩn tự động hoặc nhập bằng tay chuẩn người dùng cùng với một lựa chọn đơn hoặc đa điểm. Hiệu chuẩn có thể được thực hiện đến 4 điểm khi đa điểm được chọn.
- Dữ liệu GLP - Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 bao gồm một tính năng GLP cho phép người dùng xem dữ liệu hiệu chuẩn và thông tin hết hạn hiệu chuẩn chỉ với một phím. Dữ liệu hiệu chuẩn bao gồm ngày, giờ, đệm/chuẩn sử dụng cho hiệu chuẩn.
- CAL Check™ - cảnh báo người dùng về lỗi trong thời gian hiệu chuẩn của điện cực pH. Các thông báo gồm "điện cực bẩn/hỏng", "đệm bị nhiễm," tình trạng điện cực.
- Tùy chọn đơn vị nồng độ ISE - Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 cho phép hiệu chuẩn và đọc kết quả theo tùy chọn đơn vị nồng độ. Đơn vị nồng độ tùy chọn ppt, g/L, mg/ml, ppm, µg/L, mg/L, ppb, M, mol/L, mmol/L,% w/v và một đơn vị người dùng.
- Phương pháp đo ISE – Cộng đã biết, Trừ đã biết, Cộng phân tích, và Trừ phân tích được lập trình sẵn trong Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02. Đơn giản chỉ cần làm theo các hướng dẫn trên màn hình và máy sẽ tự động tính toán với độ chính xác cao hơn.
- Ghi dữ liệu - Ba chế độ ghi có sẵn trên Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 là: tự động, bằng tay, và AutoHold. Ghi bằng tay và tự động lên đến 100 lô với tối đa 50 000 bản ghi/lô, với tổng số lên đến 100 000 điểm dữ liệu. Tính năng ghi tự động để lưu dữ liệu theo thời gian và khoảng thời gian lấy mẫu.
- Chuyển đổi dữ liệu - Dữ liệu có thể được chuyển cho một máy tính với cáp USB và phần mềm HI92000 (cả hai được bán riêng).
- Máy Đo đa chỉ tiêu để bàn Hanna HI5521-02 Trợ giúp theo ngữ cảnh - thông qua phím chuyên dụng "HELP". Thông điệp hướng dẫn rõ ràng và hướng dẫn hiển thị trên màn hình một cách nhanh chóng và dễ dàng hướng dẫn người dùng cài đặt và hiệu chuẩn. Các thông tin trợ giúp hiển thị là tương đối so với tùy chọn đang được xem.

Details

The HI5521 is an advanced research grade benchtop pH/ORP and EC/TDS/Salinity/Resistivity meter that is completely customizable with a large color LCD, capacitive touch keys, and USB port for computer connectivity.

The HI5521 is a two-channel meter that allows for simultaneous measure of pH or ORP on one channel and EC or related parameters on the other.  Channel 1 has a BNC connection for use with the expansive line of pH and ORP electrodes that Hanna Instruments offers. The meter is supplied with the HI1131B glass body, double junction, combination pH electrode that operates over a wide temperature range from 0 to 100 °C.   All readings are automatically compensated for temperature variations with the separate HI7662-T temperature probe or from the built in temperature sensor of the conductivity probe on Channel 2.  The HI5521 is supplied with the HI76312 four-ring conductivity probe that operates over a wide range from 0.000 μS/cm to 1000.0 mS/cm*. The meter can be set to auto-ranging in which the meter chooses the appropriate conductivity range from seven ranges or fixed range in which the meter will only display reading in μS/cm or mS/cm.  All readings are automatically compensated for temperature variations with a built in temperature sensor. The temperature correction coefficient is adjustable from 0.00 to 10.00 %/°C.

As a pH meter the HI5521 can be calibrated up to five points with a choice of eight pre-programmed buffers or five custom buffers. The HI5521 features Hanna’s exclusive CAL Check™ to alert the user of potential problems during the pH calibration process.  Indicators displayed during calibration include “Electrode Dirty/Broken” and “Buffer Contaminated.” The overall probe condition based on the offset and slope characteristic of the electrode is displayed as a percentage after calibration is complete.  The calibration data including date, time, buffers used, offset and slope can be accessed at any time along with the current measurement by selecting the Good Laboratory Practice (GLP) display option.

As an EC/TDS/Salinity/Resistivity meter the HI5521 can be calibrated up to four points with a choice of six pre-programmed conductivity standards or user defined custom standards. Resistivity, TDS, Practical Salinity (PSU) and Natural Seawater Scale are calibrated through conductivity. The  % NaCl is calibrated to single point with the HI7037 salinity standard. The calibration data including date, time, and standards used, offset and cell factor can be accessed at any time along with the current measurement by selecting the Good Laboratory Practice (GLP) display option.

For the measurement of high purity water used in pharmaceutical manufacturing, the HI5521 is programmed with the three stages of the USP <645> method.  Once a stage is met a report is generated and can be saved. Up to 200 reports can be stored and with the USB port be transferred to a Windows® compatible computer.

Three selectable logging modes are available: automatic, manual and AutoHold logging. Up to 100,000 data points can be recorded in 100 lots with 50,000 records max/lot on each channel and exported to a computer for data review and storage.


Features at-a-glance

Highly Customizable User Interface – The user interface of the HI5521 allows the user to show measurements in various modes: basic measurement with or without GLP information, real-time graphing, and logging data. Calibration stability criteria can be adjusted from fast, moderate, and accurate. Programmable alarm limits can be set to inside or outside allowable limits.

Color Graphic LCD – The HI5521 features a color graphic LCD with on-screen help, graphic, and custom color configurations. The display allows for real-time graphing and the use of virtual keys provide for an intuitive user interface.

Capacitive Touch – The HI5521 features sensitive capacitive touch buttons for accurate keystrokes when navigating menus and screens. There are four dedicated keys that are used for routine operations including calibration and switching measurement modes and four virtual keys that change based upon use. The capacitive touch technology ensures the buttons never get clogged with sample residue.

Four Ring Conductivity Probe – Conductivity readings are performed with the HI76312 four-ring conductivity probe that has a built in temperature sensor for automatic temperature correction.  The four rings are made with platinum and the body of the electrode is made of Polyetherimide (PEI) plastic that is resistant to many harsh chemicals.  The four-ring design allows for this probe to be used over a wide range of measurements.

Choice of Calibration – Automatic buffer recognition, semiautomatic, and direct manual entry pH calibration options are available for calibrating up to five points, from a selection of eight standard buffers and up to five custom buffers.  For the conductivity channel the calibration can be set to automatic standard recognition or user entry along with a choice of single or multi-point. Calibration can be performed up to four points when multi-point is selected.

CAL Check™ – CAL Check™ alerts users to potential problems during the calibration of the pH electrode. Indicators include “Electrode Dirty/Broken,” “Buffer Contaminated,” electrode response timeand the overall probe condition as a percentage that is based on the offset and slope characteristics.

GLP Data – HI5521 includes a GLP Feature thatallows users to view calibration data and calibration expiration information at the touch of a key. Calibration data include date, time, standards used for calibration.

Data Logging – Three selectable logging modes are available on the HI5521: automatic, manual, and AutoHold logging. Automatic and manual logs up to 100 lots with 50,000 records max/lot, with up to 100,000 total data points. Automatic logging features the option to save data according to sampling period and interval.

Data Transfer – Data can be transferred to a PC with USB cable and HI92000 software (both sold separately).

Contextual Help – Contextual help is always available through a dedicated “HELP” key. Clear tutorial messages and directions are available on-screen to quickly and easily guide users through setup and calibration.  The help information displayed is relative to the setting/option being viewed.

pH Specifications

pH Range-2.000 to 20.000 pH
pH Resolution0.1, 0.01, 0.001 pH
pH Accuracy (@25ºC/77ºF)±0.1 pH, ±0.01 pH, ±0.002 pH ±1 LSD
pH Calibrationautomatic, up to five point calibration, eight standard buffers available (1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01,12.45) and five custom buffers
pH Temperature Compensationautomatic or manual from -20.0 to 120.0 °C
mV Range±2000 mV
mV Resolution0.1 mV
mV Accuracy±0.2 mV ±1 LSD
Relative mV Offset Range±2000 mV

EC Specifications

EC Range0.000 to 9.999 μS/cm, 10.00 to 99.99 μS/cm, 100.0 to 999.9 μS/cm, 1.000 to 9.999 mS/cm, 10.00 to 99.99 mS/cm, 100.0 to 1000.0 mS/cm actual EC*
EC Resolution0.001 μS/cm, 0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
EC Accuracy (@25ºC/77ºF)±1% of reading (±0.01 μS/cm)
EC Calibrationautomatic standard recognition (0.000 μS/cm, 84.00 μS/cm, 1.413 mS/cm, 5.000 mS/cm, 12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm) or user standard; single point or multi-point calibration

TDS Specifications

TDS Range0.000 to 9.999 ppm, 10.00 to 99.99 ppm, 100.0 to 999.9 ppm, 1.000 to 9.999 ppt, 10.00 to 99.99 ppt, 100.0 to 400.0 ppt actual TDS* (with 1.00 factor)
TDS Resolution0.001 ppm, 0.01 ppm, 0.1 ppm, 1 ppm, 0.001 ppt, 0.01 ppt, 0.1 ppt
TDS Accuracy (@25ºC/77ºF)±1% of reading (±0.01 ppm)

Resistivity Specifications

Resistivity Range1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 KΩ•cm; 10.0 to 99.9 KΩ•cm; 100 to 999 KΩ•cm; 1.00 to 9.99 MΩ•cm; 10.0 to 100.0 MΩ•cm
Resistivity Resolution0.1 Ω•cm; 1 Ω•cm; 0.01 KΩ•cm; 0.1 KΩ•cm; 1 KΩ•cm; 0.01 MΩ•cm; 0.1 MΩ•cm*
Resistivity Accuracy±2% of reading (±1 Ω•cm)

Salinity Specifications

Salinity Rangepractical scale: 0.00 to 42.00 psu; natural seawater scale: 0.00 to 80.00 ppt; percent scale: 0.0 to 400.0%
Salinity Resolution0.01 for practical scale/natural seawater scale; 0.1% for percent scale
Salinity Accuracy (@25ºC/77ºF)±1% of reading
Salinity Calibrationpercent scale—one-point (with HI7037 standard)

Temperature Specifications

Temperature Range-20.0 to 120.0 ºC**; -4.0 to 248.0 ºF**; 253.15 to 393.15 K**
Temperature Resolution0.1 °C, 0.1 °F, 0.1 K
Temperature Accuracy±0.2 °C; ±0.4 °F; ±0.2 K (without probe)
Temperature Compensationdisabled, linear and non-linear (natural water)
Temperature Coefficient0.00 to 10.00 %/°C
Reference Temperature5.0 to 30.0 °C

Additional Specifications

Cell Constant0.0500 to 200.00
Cell Type4 cells
Electrode/ProbeHI1131B glass body pH electrode with BNC connector and 1 m (3.3’) cable (included); HI76312 platinum, four-ring EC/TDS probe with and 1 m (3.3’) cable (included)
Temperature ProbeHI7662-T stainless steel temperature probe with 1 m (3.3’) cable (included)
Profilesup to 10, 5 each channel
USP ⟨645⟩ Compliantyes
GLPcalibration data including date, time, buffers used, offset and slope for pH. Cell constant, reference temperature, temperature coefficient, calibration points, calibration time stamp, probe offset for conductivity
Loggingrecord: 100,000 data point storage, up to 100 lots with max. 50,000 records/lot; interval: settable between 1 second and max log time of 180 minutes; type: automatic, manual, AutoHOLD; additional: 200 records USP
Input Channels1 pH/ORP + 1 EC/TDS/Salinity/Resistivity
Displaycolor graphic LCD with on-screen help, graphing, and custom color configuration
ConnectivityUSB
Environment0 to 50°C (32 to 122°F; 273 to 323 K), RH max 95% non-condensing
Power Supply12 VDC adapter (included)
Dimensions160 x 231 x 94 mm (6.3 x 9.1 x 3.7”)
Weight1.2 kg (2.64 lbs.)
Ordering InformationHI5521 is supplied with HI1131 pH electrode, HI7662-T temperature probe, HI76312 conductivity probe, HI76404W electrode holder, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachet (2), HI7082 3.5M KCl electrolyte solution (30 mL), 12 VDC power adapter and instructions.
Warranty2 years (probe 6 months)
Notes*Uncompensated conductivity (or TDS) is the conductivity (or TDS) value without temperature compensation. **Reduced to actual probe limits
