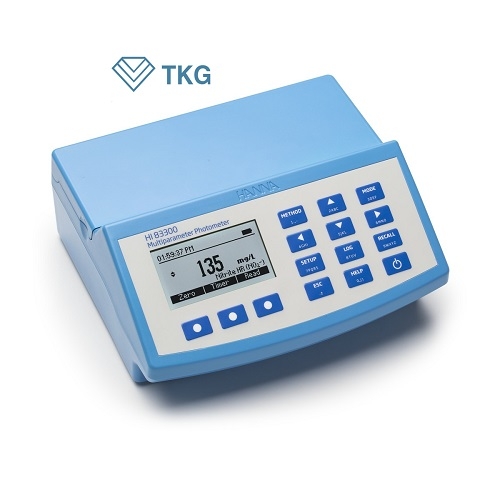

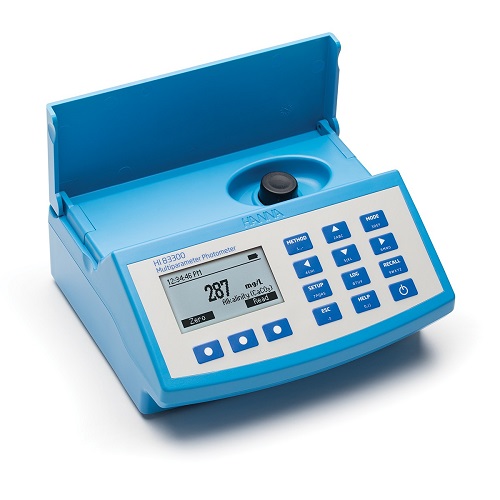

Máy đo đa chỉ tiêu Hanna HI83300-02

Multiparameter Benchtop Photometer and pH meter - HI83300

HI83300 is a compact, multiparameter photometer for use in the lab or in the field. The meter is one of the most advanced photometers available with a innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and from imperfections in the glass cuvette. This meter has 60 different programmed methods measuring 37 key water quality parameters and also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves.

To save valuable laboratory benchtop space, the HI83300 doubles as a professional pH meter with its digital pH/temperature electrode input. Now one meter can be used for both photometric and pH measurements.

pH Range	Photometer: 6.5 to 8.5 pH pH electrode: -2.00 to 16.00 pH
pH Resolution	Photometer: 0.1 pH pH electrode: 0.1 pH
pH Accuracy	Photometer: ±0.1 pH pH electrode: ±0.01 pH
pH Calibration	Automatic one or two point calibration with one set of standard buffers available (4.01, 6.86, 7.01, 9.18, 10.01)
pH Temperature Compensation	Automatic (-5.0 to 100.0 oC; 23.0 to 212.0 oF); limits reduced based on the pH electrode used
pH CAL Check (electrode diagnostics)	clean electrode and check buffer/check probe displayed during calibration
pH Method	Photometer: phenol red
pH-mV Range	±1000 mV
pH-mV Resolution	0.1 mV
pH-mV Accuracy	±0.2 mV

Oxygen, Dissolved Range	0.0 to 10.0 mg/L (as O2)
Oxygen, Dissolved Resolution	0.1 mg/L
Oxygen, Dissolved Accuracy	±0.4 mg/L ±3% of reading
Oxygen, Dissolved Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method

Absorbance Range	0.000 to 4.000 Abs
Absorbance Resolution	0.001 Abs
Absorbance Accuracy	+/-0.003Abs @ 1.000 Abs

Alkalinity Range	Freshwater: 0 to 500 mg/L (as CaCO3) Seawater: 0 to 500 mg/L (as CaCO3)
Alkalinity Resolution	1 mg/L
Alkalinity Accuracy	±5 mg/L ±5% of reading
Alkalinity Method	Colorimetric method

Aluminum Range	0.00 to 1.00 mg/L (as Al3+)
Aluminum Resolution	0.01 mg/L
Aluminum Accuracy	±0.04 mg/L ±4% of reading
Aluminum Method	Adaptation of the aluminon method

Ammonia Range	Low Range: 0.00 to 3.00 mg/L (as NH3-N) Medium Range: 0.00 to 10.00 mg/L (as NH3-N) High Range: 0.0 to 100.0 mg/L (as NH3-N)
Ammonia Resolution	0.01 mg/L; 0.1 mg/L
Ammonia Accuracy	Low Range: ±0.04 mg/L ±4% of reading Medium Range: ±0.05 mg/L ±5% of reading High range: ±0.5 mg/L ±5% of reading at 25 °C
Ammonia Method	Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92, Nessler method

Anionic Surfactants Range	0.00 to 3.50 mg/L (as SDBS)
Anionic Surfactants Resolution	0.01 mg/L
Anionic Surfactants Accuracy	±0.04 mg/L ±3% of reading
Anionic Surfactants Method	Adaptation of the USEPA method 425.1 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 5540C, Anionic Surfactants as MBAS.

Bromine Range	0.00 to 8.00 mg/L (as Br2)
Bromine Resolution	0.01 mg/L
Bromine Accuracy	±0.08 mg/L ±3% of reading
Bromine Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method.

Calcium Range	Freshwater: 0 to 400 mg/L (as Ca2+) Seawater: 200 to 600 mg/L (as Ca2+)
Calcium Resolution	1 mg/L
Calcium Accuracy	Freshwater: ±10 mg/L ±5% of reading Seawater: ±6% of reading
Calcium Method	Freshwater: Adaptation of the Oxalate method Seawater: Adaptation of the Zincon method

Chloride Range	0.0 to 20.0 mg/L (as Cl⁻)
Chloride Resolution	0.1 mg/L
Chloride Accuracy	±0.5 mg/L ±6% of reading at 25 °C

Chlorine Dioxide Range	0.00 to 2.00 mg/L (as ClO2)
Chlorine Dioxide Resolution	0.01 mg/L
Chlorine Dioxide Accuracy	±0.10 mg/L ±5% of reading
Chlorine Dioxide Method	Adaptation of the Chlorophenol Red method.

Free Chlorine Range	0.00 to 5.00 mg/L (as Cl2) Ultra Low Range: 0.000 to 0.500 mg/L (as Cl2)
Free Chlorine Resolution	0.01 mg/L Ultra Low Range: 0.001 mg/L
Free Chlorine Accuracy	±0.03 mg/L ±3% of reading Ultra Low Range: ±0.020 mg/L ±3% of reading
Total Chlorine Range	0.00 to 5.00 mg/L (as Cl2) Ultra Low Range: 0.000 to 0.500 mg/L (as Cl2) Ultra High Range: 0 to 500 mg/L (as Cl2)
Total Chlorine Resolution	0.01 mg/L Ultra Low Range: 0.001 mg/L Ultra High Range:1 mg/L
Total Chlorine Accuracy	±0.03 mg/L ±3% of reading Ultra Low Range: ±0.020 mg/L ±3% of reading Ultra High Range: ±3 mg/L ±3% of reading
Chlorine Method	Adaptation of the EPA 330.5 DPD method Free Chlorine (ULR) & Total Chlorine (UHR): Adaptation of the Standard Methods for Examination of Water and Wastewater, 20th edition, 4500-Cl

Chromium, Hexavalent Range	Low Range: 0 to 300 μg/L (as Cr6+) High Range: 0 to 1000 μg/L (as Cr6+)
Chromium, Hexavalent Resolution	1 μg/L
Chromium, Hexavalent Accuracy	Low Range: ±1 μg/L ±4% of reading High Range: ±5 μg/L ±4% of reading
Chromium, Hexavalent Method	Adaptation of the ASTM Manual of Water and Environmental Technology, D1687-92, Diphenylcarbohydrazide method.

Color, Water Range	0 to 500 PCU (Platinum Cobalt Units)
Color, Water Resolution	1 PCU
Color, Water Accuracy	±10 PCU ±5% of reading
Color, Water Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Colorimetric Platinum Cobalt method.

Copper Range	Low Range: 0.000 to 1.500 mg/L (as Cu2+) High range: 0.00 to 5.00 mg/L (as Cu2+)
Copper Resolution	0.001 mg/L; 0.01 mg/L
Copper Accuracy	Low Range: ±0.01 mg/L ±5% of reading High Range ±0.02 mg/L ±4% of reading
Copper Method	Adaptation of the EPA bicinchoninate method

Cyanuric Acid Range	0 to 80 mg/L (as CYA)
Cyanuric Acid Resolution	1 mg/L
Cyanuric Acid Accuracy	±1 mg/L ±15% of reading
Cyanuric Acid Method	Adaptation of the turbidimetric method

Fluoride Range	Low Range: 0.00 to 2.00 mg/L (as F-) High range: 0.0 to 20.0 mg/L (as F-)
Fluoride Resolution	0.01 mg/L; 0.1 mg/L
Fluoride Accuracy	Low Range: ±0.03 mg/L ±3% of reading High Range: ±0.5 mg/L ±3% of reading
Fluoride Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method

Hardness, Total Range	Low Range: 0 to 250 mg/L (as CaCO3) Medium Range: 200 to 500 mg/L (as CaCO3) High Range: 400 to 750 mg/L (as CaCO3)
Hardness, Total Resolution	1 mg/L
Hardness, Total Accuracy	Low Range: ±5 mg/L ±4% of reading Medium Range: ±7 mg/L ±3% of reading High Range: ±10 mg/L ±2% of reading
Hardness, Total Method	Adaptation of the EPA recommended method 130.1

Hardness, Calcium Range	0.00 to 2.70 mg/L (as CaCO3)
Hardness, Calcium Resolution	0.01 mg/L
Hardness, Calcium Accuracy	±0.11 mg/L ±5% of reading
Hardness, Calcium Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Calmagite method

Hardness, Magnesium Range	0.00 to 2.00 mg/L (as CaCO3)
Hardness, Magnesium Resolution	0.01 mg/L
Hardness, Magnesium Accuracy	±0.11 mg/L ±5% of reading
Hardness, Magnesium Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, EDTA Colorimetric method

Hydrazine Range	0 to 400 μg/L (as N2H4)
Hydrazine Resolution	1 μg/L
Hydrazine Accuracy	±4% of full scale reading
Hydrazine Method	Adaptation of the ASTM Manual of Water and Environmental Technology, method D1385-88, p-Dimethylaminobenzaldehyde method

Iodine Range	0.0 to 12.5 mg/L (as I2)
Iodine Resolution	0.1 mg/L
Iodine Accuracy	±0.1 mg/L ±5% of reading
Iodine Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method

Iron Range	Low Range: 0.000 to 1.600 mg/L (as Fe) High Range: 0.00 to 5.00 mg/L (as Fe)
Iron Resolution	0.001 mg/L; 0.01 mg/L
Iron Accuracy	Low Range: ±0.01 mg/L ±8% of reading High Range: ±0.04 mg/L ±2% of reading
Iron Method	Low Range: Adaptation of the TPTZ Method High Range: Adaptation of Standard Methods for the Examination of Water and Wastewater, 3500-Fe B., Phenanthroline Method

Magnesium Range	0 to 150 mg/L (as Mg2+)
Magnesium Resolution	1 mg/L
Magnesium Accuracy	±5 mg/L ±3% of reading
Magnesium Method	Adaptation of the Calmagite method

Manganese Range	Low Range: 0 to 300 μg/L (as Mn) High Range: 0.0 to 20.0 (as Mn)
Manganese Resolution	1 μg/L; 0.1 mg/L
Manganese Accuracy	Low Range: ±10 μg/L ±3% of reading High Range: ±0.2 mg/L ±3% of reading
Manganese Method	Low Range: Adaptation of the PAN Method High Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method

Molybdenum Range	0.0 to 40.0 mg/L (as Mo6+)
Molybdenum Resolution	0.1 mg/L
Molybdenum Accuracy	±0.3 mg/L ±5% of reading
Molybdenum Method	Adaptation of the mercaptoacetic acid method

Nickel Range	Low Range: 0.000 to 1.000 mg/L (as Ni) High Range: 0.00 to 7.00 g/L (as Ni)
Nickel Resolution	0.001 mg/L; 0.01 g/L
Nickel Accuracy	Low range: ±0.010 mg/L ±7% of reading High Range: ±0.07 g/L ±4% of reading
Nickel Method	Low Range: Adaptation of the PAN method High Range: Adaptation of the photometric method

Nitrate Range	0.0 to 30.0 mg/L (as NO3-- N)
Nitrate Resolution	0.1 mg/L
Nitrate Accuracy	±0.5 mg/L ±10% of reading
Nitrate Method	Adaptation of the cadmium reduction method

Nitrite Range	Freshwater Low Range: 0 to 600 μg/L (as NO2--N) High Range: 0 to 150 mg/L (as NO2-) Seawater Ultra Low Range: 0 to 200 μg/L (as NO2--N)
Nitrite Resolution	Freshwater: 1 μg/L; 1 mg/L Seawater: 1 μg/L
Nitrite Accuracy	Freshwater Low Range: ±20 μg/L ±4% of reading High Range: ±4 mg/L ±4% of reading Seawater ±10 μg/L ±4% of reading
Nitrite Method	Adaptation of the EPA Diazotization method 354.1

Oxygen, Scavenger Range	0 to 1000 μg/L (as DEHA) 0.00 to 1.50 mg/L (as Carbohydrazide) 0.00 to 2.50 mg/L (as Hydroquinone) 0.00 to 4.50 mg/L (as ISO-ascorbic acid)
Oxygen, Scavenger Resolution	1 μg/L (DEHA); 0.01 mg/L
Oxygen, Scavenger Accuracy	±5 μg/L ±5% of reading (DEHA)
Oxygen, Scavenger Method	Adaptation of the iron reduction method

Ozone Range	0.00 to 2.00 mg/L (as O3)
Ozone Resolution	0.01 mg/L
Ozone Accuracy	±0.02 mg/L ±3% of reading
Ozone Method	Colorimetric DPD Method

Phosphate Range	Freshwater Low Range: 0.00 to 2.50 mg/L (as PO43-) High range: 0.0 to 30.0 mg/L (as PO43-) Seawater Ultra Low Range: 0 to 200 μg/L (as P)
Phosphate Resolution	Freshwater: 0.01 mg/L; 0.1 mg/L Seawater: 1 μg/L
Phosphate Accuracy	Freshwater Low Range: ±0.04 mg/L ±4% of reading High Range: ±1 mg/L ±4% of reading Seawater Ultra Low Range: ±5 μg/L ±5% of reading
Phosphate Method	Freshwater Low Range: Adaptation of the Ascorbic Acid method Freshwater High Range and Seawater Ultra Low Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method

Potassium Range	0.0 to 20.0 mg/L (as K)
Potassium Resolution	0.1 mg/L
Potassium Accuracy	±3.0 mg/L ±7% of reading
Potassium Method	Adaptation of the Turbidimetric Tetraphenylborate method

Silica Range	Low Range: 0.00 to 2.00 mg/L (as SiO2) High Range: 0 to 200 mg/L (as SiO2)
Silica Resolution	0.01 mg/L; 1 mg/L
Silica Accuracy	Low Range: ±0.03 mg/L ±3% of reading High Range: ±1 mg/L ±5% of reading
Silica Method	Low Range: Adaptation of the ASTM Manual of Water and Environmental Technology, D859, Heteropoly Molybdenum Blue method High Range: Adaptation of the USEPA Method 370.1 and Standard Method 4500-SiO2

Silver Range	0.000 to 1.000 mg/L (as Ag)
Silver Resolution	0.001 mg/L
Silver Accuracy	±0.020 mg/L ±5% of reading
Silver Method	Adaptation of the PAN method

Sulfate Range	0 to 150 mg/L (as SO42-)
Sulfate Resolution	1 mg/L
Sulfate Accuracy	±5 mg/L ±3% of reading
Sulfate Method	Turbidimetric - Sulfate is precipitated with barium chloride crystals

Zinc Range	0.00 to 3.00 mg/L (as Zn)
Zinc Resolution	0.01 mg/L
Zinc Accuracy	±0.03 mg/L ±3% of reading
Zinc Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method

Input Channels	1 pH electrode input and 5 photometer wavelengths
pH Electrode	digital pH electrode (not included)
Photometer/Colorimeter Light Source	5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Photometer/Colorimeter Light Detector	silicon photodetector
Bandpass Filter Bandwidth	8 nm
Bandpass Filter Wavelength Accuracy	±1 nm
Cuvette Type	round, 24.6 mm
Number of Methods	128 max.
GLP	calibration data for connected pH electrode
Display	128 x 64 pixel LCD with backlight
Logging Type	log on demand with user name and sample ID optional input
Logging Memory	1000 readings
Connectivity	USB-A host for flash drive; micro-USB-B for power and computer connectivity
Power Supply	5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Battery Type/Life	3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Environment	0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing
Weight	1.0 kg (2.2 lbs.)
Dimensions	206 x 177 x 97 mm (8.1 x 7.0 x 3.8")
Ordering Information	HI83300 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.

Hướng Dẫn Sử Dụng nhấn tải về HI83300-02

Catalog nhấn tải về HI83300-02
