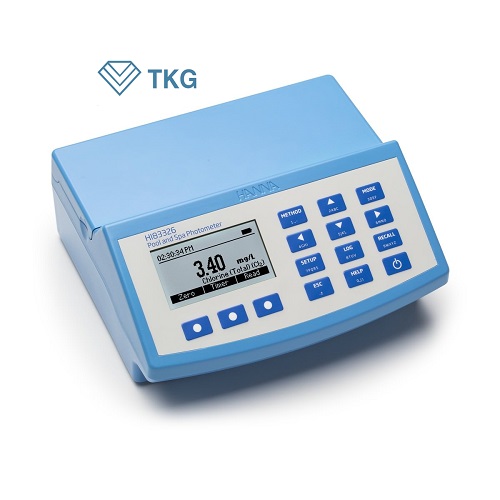

Pool and Spa Photometer - HI83326

HI83326 is a compact, multiparameter photometer for use in pool and spa applications. The meter is one of the most advanced photometers available with an innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and from imperfections in the glass cuvette. This meter has 12 different programmed methods measuring 11 key water quality parameters and also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves. Pool and spa parameters include alkalinity, free chlorine, nitrite, and phosphate which are critical to maintaining a healthy system.

To save valuable laboratory benchtop space, the HI83326 doubles as a professional pH meter with its digital pH/temperature electrode input. Now one meter can be used for both photometric and pH measurements.

Advanced optical system

Unparalleled performance from a benchtop photometer

Digital pH electrode input

Save valuable bench space with one meter that works both as a photometer and as a laboratory pH meter

Absorbance measuring mode

pH Range	Photometer: 6.5 to 8.5 pH pH electrode: -2.00 to 16.00 pH
pH Resolution	Photometer: 0.1 pH pH electrode: 0.01 pH
pH Accuracy	Photometer: ±0.1 pH pH electrode: ±0.01 pH
pH Calibration	Automatic one or two point calibration with one set of standard buffers available (4.01, 6.86, 7.01, 9.18, 10.01)
pH Temperature Compensation	Automatic (-5.0 to 100.0 oC; 23.0 to 212.0 oF); limits reduced based on the pH electrode used
pH CAL Check (electrode diagnostics)	clean electrode and check buffer/check probe displayed during calibration
pH Method	Photometer: phenol red
pH-mV Range	±1000 mV
pH-mV Resolution	0.1 mV
pH-mV Accuracy	±0.2 mV

Absorbance Range	0.000 to 4.000 Abs
Absorbance Resolution	0.001 Abs
Absorbance Accuracy	+/-0.003Abs @ 1.000 Abs

Alkalinity Range	Freshwater: 0 to 500 mg/L (as CaCO3)
Alkalinity Resolution	1 mg/L
Alkalinity Accuracy	±5 mg/L ±5% of reading
Alkalinity Method	Colorimetric method

Bromine Range	0.00 to 8.00 mg/L (as Br2)
Bromine Resolution	0.01 mg/L
Bromine Accuracy	±0.08 mg/L ±3% of reading
Bromine Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method.

Free Chlorine Range	0.00 to 5.00 mg/L (as Cl2)
Free Chlorine Resolution	0.01 mg/L
Free Chlorine Accuracy	±0.03 mg/L ±3% of reading
Total Chlorine Range	0.00 to 5.00 mg/L (as Cl2)
Total Chlorine Resolution	0.01 mg/L
Total Chlorine Accuracy	±0.03 mg/L ±3% of reading
Chlorine Method	Adaptation of the EPA 330.5 DPD method

Copper Range	High range: 0.00 to 5.00 mg/L (as Cu2+)
Copper Resolution	0.01 mg/L
Copper Accuracy	High Range ±0.02 mg/L ±4% of reading
Copper Method	Adaptation of the EPA bicinchoninate method

Cyanuric Acid Range	0 to 80 mg/L (as CYA)
Cyanuric Acid Resolution	1 mg/L
Cyanuric Acid Accuracy	±1 mg/L ±15% of reading
Cyanuric Acid Method	Adaptation of the turbidimetric method

Hardness, Calcium Range	0.00 to 2.70 mg/L (as CaCO3)
Hardness, Calcium Resolution	0.01 mg/L
Hardness, Calcium Accuracy	±0.11 mg/L ±5% of reading
Hardness, Calcium Method	Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Calmagite method

Iron Range	High Range: 0.00 to 5.00 mg/L (as Fe)
Iron Resolution	0.01 mg/L
Iron Accuracy	High Range: ±0.04 mg/L ±2% of reading
Iron Method	Adaptation of Standard Methods for the Examination of Water and Wastewater, 3500-Fe B., Phenanthroline Method

Nitrate Range	0.0 to 30.0 mg/L (as NO3-- N)
Nitrate Resolution	0.1 mg/L
Nitrate Accuracy	±0.5 mg/L ±10% of reading
Nitrate Method	Adaptation of the cadmium reduction method

Ozone Range	0.00 to 2.00 mg/L (as O3)
Ozone Resolution	0.01 mg/L
Ozone Accuracy	±0.02 mg/L ±3% of reading
Ozone Method	Colorimetric DPD Method

Phosphate Range	Freshwater Low Range: 0.00 to 2.50 mg/L (as PO43-)
Phosphate Resolution	Freshwater: 0.01 mg/L
Phosphate Accuracy	Freshwater Low Range: ±0.04 mg/L ±4% of reading
Phosphate Method	Freshwater Low Range: Adaptation of the Ascorbic Acid method

Input Channels	1 pH electrode input and 3 photometer wavelengths
pH Electrode	digital pH electrode (not included)
Photometer/Colorimeter Light Source	3 LEDs with 525 nm, 575 nm, and 610 nm narrow band interference filters
Photometer/Colorimeter Light Detector	silicon photodetector
Bandpass Filter Bandwidth	8 nm
Bandpass Filter Wavelength Accuracy	±1 nm
Cuvette Type	round, 24.6 mm
Number of Methods	128 max.
GLP	calibration data for connected pH electrode
Display	128 x 64 pixel LCD with backlight
Logging Type	log on demand with user name and sample ID optional input
Logging Memory	1000 readings
Connectivity	USB-A host for flash drive; micro-USB-B for power and computer connectivity
Power Supply	5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Battery Type/Life	3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Environment	0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing
Weight	1.0 kg (2.2 lbs.)
Dimensions	206 x 177 x 97 mm (8.1 x 7.0 x 3.8")
Ordering Information	HI83226 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.
