Máy đo điện đa năng Hioki 3237 (RS-232C)

Model: 3237
Hãng sản xuất: HIOKI
Xuất xứ: Japan
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: 3237
Hãng sản xuất: Hioki
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
- Điện áp DC: 199.999 mV to 1000.00 V, 5 ranges, Basic accuracy: ±0.025% rdg. ±2 dgt.
- Điện áp AC: 1999.99 mV to 750.00 V, 4 ranges, Frequency characteristics: 10 Hz to 30 kHz, Basic accuracy: ±0.2% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.)
- Điện trở (2 thiết bị đầu cuối): 199.999 Ω - 100.000 MΩ, 7 ranges, Basic accuracy: ±0.05% rdg. ±2 dgt.
- Điện trở thấp (2 thiết bị đầu cuối): 1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.05% rdg. ±6 dgt.
- Kiểm tra liên tục: Beep sound 50.00 Ω or less at 1999.99 Ω range, Testing current 100 μA
- Kiểm tra Diode: With 1999.99 mV range, Testing current 1 mA
- Chức năng: So sánh, xuất máy in, Save/Load of settings
- Màn hình: Digital LED, max. 199999 digits
- Thời gian lấy mẫu: 300 times/s (Fast), 8 to 9 times/s (Medium), 1 time/s (Slow)
- Nguồn: 100/120/220/240V AC, 50/60Hz
- Kích thức sản phẩm: 215*80*265mm
- Trọng lượng: 2.6 kg
- Phụ kiện đi kèm: Test Lead L9170-10 × 1, Hướng dẫn sử dụng x1, Dây nguồn ×1, Spare fuse each ×1.

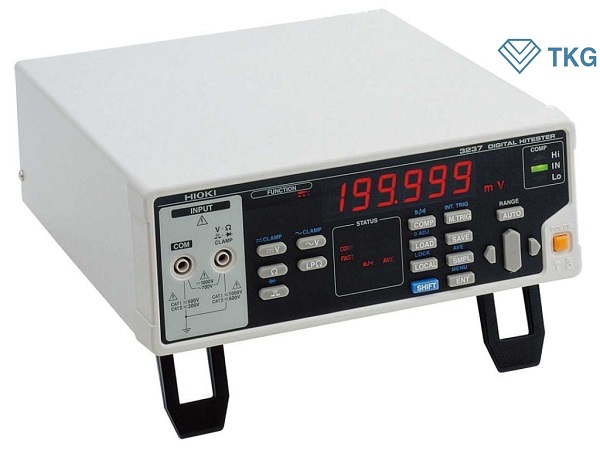

DIGITAL HiTESTER 3237

Low-Cost Digital Multimeter with ±0.025% DCV Accuracy and Basic Measurement Capabilities for General Bench Testing

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) Basic accuracy is when sampling rate “Slow”Regarding DMM Accuracy : Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.

DC Voltage range 199.999 mV to 1000.00 V, 5 ranges, Basic accuracy: ±0.025% rdg. ±2 dgt.
AC Voltage range 1999.99 mV to 750.00 V, 4 ranges, Frequency characteristics: 10 Hz to 30 kHz, Basic accuracy: ±0.2% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.)
Resistance range (2-terminals) 199.999 Ω - 100.000 MΩ, 7 ranges, Basic accuracy: ±0.05% rdg. ±2 dgt.
Low-power Resistance range (2-terminals) 1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.05% rdg. ±6 dgt.
Continuity test Beep sound 50.00 Ω or less at 1999.99 Ω range, Testing current 100 μA
Diode test With 1999.99 mV range, Testing current 1 mA
Other functions Comparator, Save/Load of settings, Printer output, Current measurement with clamp-on probes and scaling, External control I/O
Display Digital LED, max. 199999 digits
Sampling rate 300 times/s (Fast), 8 to 9 times/s (Medium), 1 time/s (Slow)
Power supply 100/ 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz
Dimensions and mass 215 mm (8.46 in) W × 80 mm (3.15 in) H × 265 mm (10.43 in) D, 2.6 kg (91.7 oz)
Accessories Test Lead L9170-10 × 1, Instruction manual × 1, Power cord × 1, Spare fuse each 1

Input Probes

*L9170-10 is a bundled accessory. *Requires the 9704 to connect a Clamp-on probe

TEST LEAD L9170-10

70 cm (2.30 ft) length



CONVERSION ADAPTER 9704

Receiving end: Female BNC; Output end: Male banana-plug *Not compatible with older generation Memory Hicorders with banana input terminals



CLAMP ON PROBE 9132-50

• Use for level measurement • 40 Hz to 1 kHz • 20 to 1000A AC • φ 55 mm (2.17 in) core dia.

Learn more



CLAMP ON PROBE 9010-50

• Use for level measurement • 40 Hz to 1 kHz • 10 to 500 A AC • φ 46 mm (1.81 in) core dia.

Learn more

CLAMP ON PROBE 9018-50

• Excellent phase characteristics • 40 Hz to 3 kHz • 10 to 500A AC • φ 46 mm (1.81 in) core dia.

Learn more

Printer options

RECORDING PAPER 1196

For the Printer 9442, 112 mm (4.41 in) × 25 m (82.03 ft), 10 rolls/set



PRINTER 9442

For printing numerical values 112 mm (4.41 in) paper width, not CE marked



AC ADAPTER 9443-02

For the Printer 9442, EU type



CONNECTION CABLE 9444

9 pin - 9 pin straight, 1.5 m (4.92 ft) length

PC communication

GP-IB CONNECTOR CABLE 9151-02

2 m (6.56 ft) length



RS-232C CABLE 9637

9 pin - 9 pin, cross, 1.8 m (5.91 ft) length
