Máy đo điện đa năng Hioki 3239 (RS-232C)

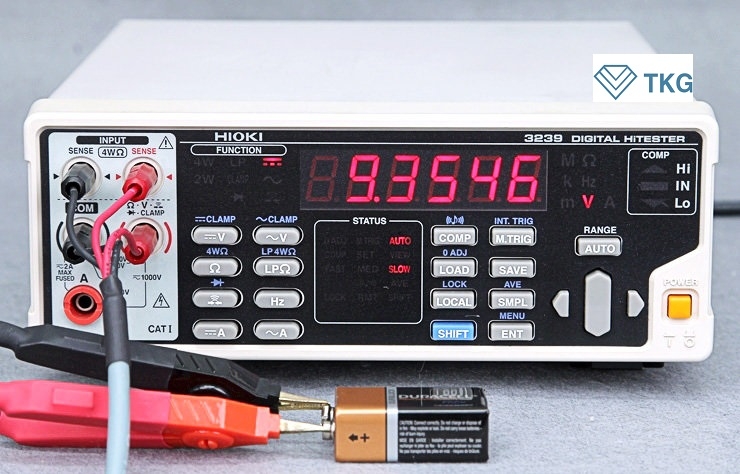

DIGITAL HiTESTER 3239

4-Terminal Measurement Digital Multimeter with ±0.01% DCV Accuracy for High Precision Bench Testing

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year) Basic accuracy is when sampling rate “Slow”.Regarding DMM Accuracy : Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information.

DC Voltage range	199.999 mV to 1000.00 V, 5 ranges, Basic accuracy: ±0.01% rdg. ±2 dgt.
AC Voltage range	1999.99 mV to 750.00 V, 4 ranges, Frequency characteristics: 10 Hz to 300 kHz, Basic accuracy: ±0.1% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.)
DC Current range	199.999 mA/1999.99 mA, 2 ranges, Basic accuracy: ±0.1% rdg. ±6 dgt.
AC Current range	199.999 mA/1999.99 mA, 2 ranges, Frequency characteristics: 10 Hz to 30 kHz, Basic accuracy: ±0.3% rdg. ±100 dgt., (True RMS rectified, Crest factor addition error: 1 < C.F. ≤ 2: +200 dgt.)
Resistance range (2-terminals)	199.999 Ω - 100.000 MΩ, 7 ranges, Basic accuracy: ±0.02% rdg. ±2 dgt.
Low-power Resistance range (2-terminals)	1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.02% rdg. ±6 dgt.
Resistance range (4-terminals)	199.999 Ω - 1999.99 kΩ, 5 ranges, Basic accuracy: ±0.02% rdg. ±2 dgt.
Low-power Resistance range (4-terminals)	1999.99 Ω - 1999.99 kΩ, 4 ranges, Basic accuracy: ±0.02% rdg. ±6 dgt.
Hz range (Frequency)	99.9999 Hz - 300.000 kHz, 5 ranges, Accuracy: ±0.015% rdg. ±2 dgt., Attenuator: 2 V to 700 V, 4 ranges (Input sensitivity: 10 % of range)
Continuity test	Beep sound 50.00 Ω or less at 1999.99 Ω range, Testing current 100 μA
Diode test	With 1999.99 mV range, Testing current 1 mA
Other functions	Comparator, Save/Load of settings, Printer output, Current measurement with clamp-on probes and scaling, External control I/O
Display	Digital LED, max. 199999 digits
Sampling rate	300 times/s (Fast), 8 to 9 times/s (Medium), 1 time/s (Slow)
Power supply	100/ 120/ 220/ 240 V AC (specify when ordering), 50/60 Hz
Dimensions and mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 265 mm (10.43 in) D, 2.6 kg (91.7 oz)
Accessories	Test Lead L9170-10 × 1, Instruction manual × 1, Power cord × 1, Spare fuse each 1

About probe length

A: From junction to probe
B: Probe part
L: Whole length

Input Probes

*L9170-10 is a bundled accessory. *Requires the 9704 to connect a Clamp-on probe

CONVERSION ADAPTER 9704

Receiving end: Female BNC; Output end: Male banana-plug *Not compatible with older generation Memory Hicorders with banana input terminals

TEST LEAD L9170-10

70 cm (2.30 ft) length

CLAMP ON PROBE 9132-50

• Use for level measurement • 40 Hz to 1 kHz • 20 to 1000A AC • φ 55 mm (2.17 in) core dia.

Learn more

CLAMP ON PROBE 9010-50

• Use for level measurement • 40 Hz to 1 kHz • 10 to 500 A AC • φ 46 mm (1.81 in) core dia.

Learn more

CLAMP ON PROBE 9018-50

• Excellent phase characteristics • 40 Hz to 3 kHz • 10 to 500A AC • φ 46 mm (1.81 in) core dia.

Learn more

4-Terminal measurement probes

About probe length
A: From junction to probe
B: Probe part
L: Whole length

CLIP TYPE LEAD 9452

A:220 mm (8.66 in), B:197 mm (7.76 in), L:1360 mm (4.46 ft)

FOUR TERMINAL LEAD 9453

A:280 mm (11.02 in), B:118 mm (4.65 in), L:1360 mm (4.46 ft), 60V DC

ZERO ADJUSTMENT BOARD 9454

For the L2100, 9465-10, 9465, 9461

PIN TYPE LEAD 9455

A:260 mm (10.24 in), B:136 mm (5.35 in), L:890 mm (2.92 ft), Not CE marked. Note: The 9455 is a precision instrument. Exercise appropriate care when handling it.

PIN TYPE LEAD 9461

A:240 mm (9.45 in), B:132 mm (5.20 in), L:804 mm (2.64 ft)

CLIP TYPE LEAD L2107

A: 130 mm (5.12 in), B:84 mm (3.31 in), L:1.1 m (3.61 ft), 70 V DC

Printer options

RECORDING PAPER 1196

For the Printer 9442, 112 mm (4.41 in) × 25 m (82.03 ft), 10 rolls/set

PRINTER 9442

For printing numerical values 112 mm (4.41 in) paper width, not CE marked

CONNECTION CABLE 9444

9 pin - 9 pin straight, 1.5 m (4.92 ft) length

AC ADAPTER 9443-02

For the Printer 9442, EU type

PC communication

GP-IB CONNECTOR CABLE 9151-02

2 m (6.56 ft) length

RS-232C CABLE 9637

9 pin - 9 pin, cross, 1.8 m (5.91 ft) length
