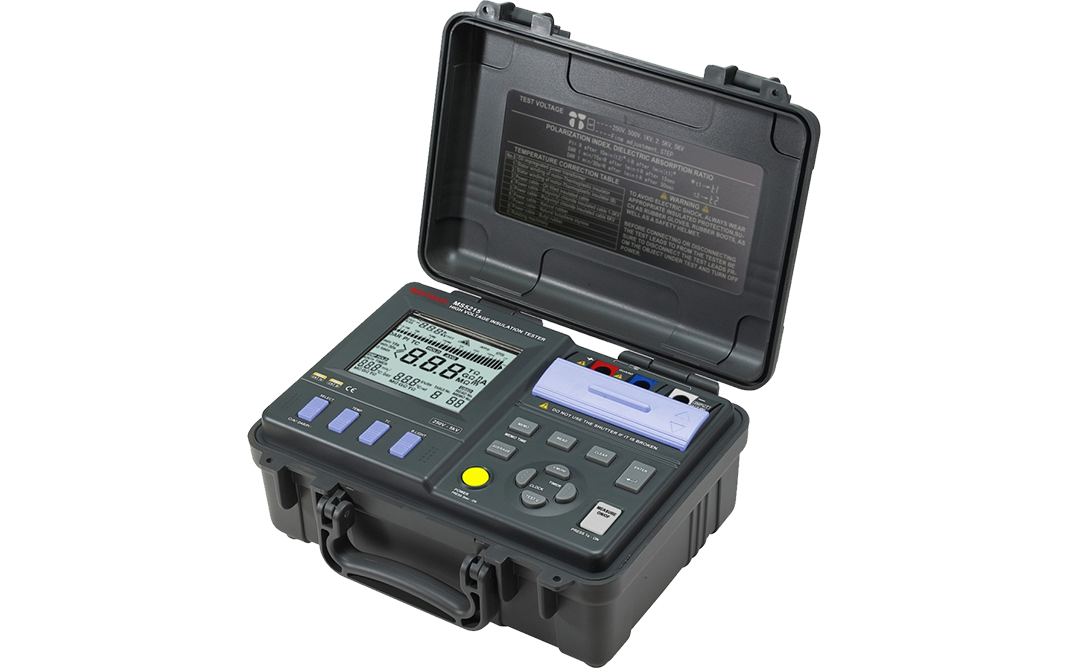

Model:MS5215
Hãng sản xuất: Mastech
Bảo hành: 12 tháng
Thông số kỹ thuật:
Điện áp hoạt động: 250V DC đến 5KV DC
Dải đo điện trở cách điện: 0.01MΩ đến 5TΩ
Độ chính xác: ±(5%+5) ~ ±(30%+40)
-Đo dòng rò
Dải đo: 1 nA đến 3mA
Độ chính xác: ±(15%+1nA)
-Điện áp DC
Phạm vi kiểm tra: ±50V đến 1000V
Lỗi chính xác: ±(5%+5)
Kháng đầu vào: Approx. 10MΩ
-Điện xoay chiều
Phạm vi kiểm tra: ±50V đến 750V (50Hz~60Hz)
Lỗi chính xác: ±(5%+5)
Kháng đầu vào: 10MΩ
-Nhiệt độ
Dải đo: -10℃ đến 70℃
Do độ chính xác: ±1.5℃ ~ ±2.0℃
-Nguồn điện: Pin 6xLr14(2#), hoặc Pin AA 6×1.2V (Bộ sạc: Điện áp đầu vào 100V~240V)
-Kích thước sản phẩm : 284mmx230mmx125mm
-Trọng lượng sản phẩm: 2426g
-Giấy chứng nhận: CE/ETL/RoHS
-Đánh giá an toàn : CAT III 1000V CAT IV 600V
-Phụ kiện: Dây dẫn đầu dò của máy kiểm tra: 3m x 3 (Đỏ, Đen, Xanh)
+Kẹp cá sấu x 3 (Đỏ, Đen, Xanh)
+Cảm biến nhiệt độ
+Dây dữ liệu USB (1m)
+CD phần mềm phân tích dữ liệu
+Ba lô dụng cụ
+Bộ pin sạc (để sạc pin Ni-Hy) (Tùy chọn)
+Bộ sạc AC x 1″ (Tùy chọn)
+Pin kiềm LR14 và Hướng dẫn sử dụng
Features |
|
● |
Broad Range of Testing Voltage : |
- |
Testing voltages with broad range can be generated (from 250 V to 5 KV). |
- |
Testing voltage can be preset as 250 V, 500 V, 1 KV, 2.5 KV, or 5 KV, or as a voltage increasing or decreasing in steps of 25 V or 100 V. |
● |
Insulation Diagnosis : |
- |
PI and DAR can be automatically calculated and displayed |
- |
Step-voltage measurements and temperature compensation is carried out. |
● |
Large Storage Memory : |
- |
Up to 100 manually tested data and 10 groups of log-test data can be saved. |
- |
Test data can be read on LCD, or uploaded to PC |
● |
Clear Display : |
- |
Large-screen display. Test result is displayed with indication through a graduation bar. |
- |
LCD screen is backlit, which is suitable for viewing when it is dark. |
● |
PC Communication : |
- |
The meter is equipped with a USB interface, through which the saved test data can be uploaded to a PC for further table/figure making and report generating with convenience. |
● |
Robust and Durable : |
- |
With a compact structure, the tester is robust, durable and portable. |
● |
Powered by Batteries : |
- |
With a selection switch, the tester can be powered by an alkaline battery. |
- |
This tester can be continuously operated for a longer period of time than similar meters if a LR14 alkaline battery is used. |
Specifications |
||
Operating Voltage |
Measuring Range |
Accuracy |
250V DC |
0.01MΩ~2.5GΩ |
±(5%+5) |
2.51GΩ~250GΩ |
±(20%+10) |
|
500V DC |
0.01MΩ~5.0GΩ |
±(5%+5) |
5.01GΩ~500GΩ |
±(20%+10) |
|
1000V DC |
0.01MΩ~10GΩ |
±(5%+5) |
10.01GΩ~500GΩ |
±(20%+10) |
|
501GΩ~999GΩ |
±(30%+20) |
|
2.5KV DC |
0.01MΩ~25GΩ |
±(5%+5) |
25.1GΩ~500GΩ |
±(20%+10) |
|
501GΩ~999GΩ |
±(30%+20) |
|
1TΩ~2.5TΩ |
±(30%+40) |
|
5KV DC |
0.01MΩ~50GΩ |
±(5%+5) |
50.1GΩ~500GΩ |
±(20%+10) |
|
501GΩ~999GΩ |
±(30%+20) |
|
1TΩ~5TΩ |
±(30%+40) |
|
Leakage Current |
||
Range |
Measuring Range |
Accuracy |
10nA |
1.00nA~9.99nA |
±(15%+1nA) |
100nA |
9.0nA~99.9nA |
±(15%+5) |
1000nA |
100nA~999nA |
±(2.5%+5) |
10μA |
0.90μA~9.99μA |
|
100μA |
9.0μA~99.9μA |
|
1000μA |
90μA~999μA |
|
3mA |
0.90mA~3.00mA |
|
Resistance |
||
Range of insulation |
Range of humidity |
Range of temperature |
0Ω~100MΩ |
<85> |
23℃ ±5℃ |
101Ω~20GΩ |
<75> |
73℉ ±9℉ |
21GΩ~500GΩ |
<65> |
|
501GΩ~5TΩ |
<55> |
|
Voltage |
||
Test Mode |
DC Voltage |
AC Voltage |
Test Range |
±(50V~1000V) |
±50V~750V |
(50Hz~60Hz) |
||
Precision error |
±(5%+5) |
±(5%+5) |
Input Resistance |
Approx. 10MΩ |
Approx. 10MΩ |
Temperature |
||
Measuring Range |
Measuring Precision |
|
-10℃~0℃ |
±1.5℃ |
|
0℃~40℃ |
±2.0℃ |
|
40℃~70℃ |
±1.5℃ |
