Máy đo độ ẩm gỗ Delmhorst J2000 (6%-40%)

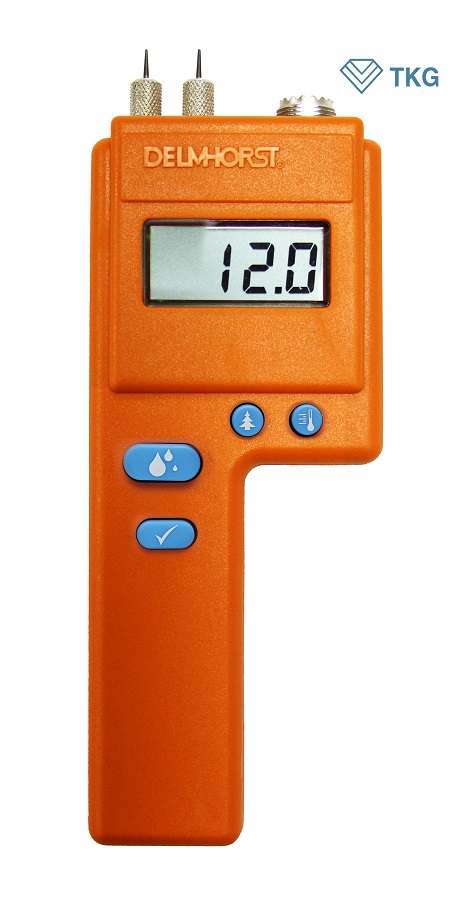

• Bright, clear digital display.
• Corrects for 50 individual wood species and temperature (°F and °C).
• Averages up to 100 accumulated readings.
• Moisture Range: 6%-40% on wood.
• Also available with 6%-60% MC range as J-2000/X.
• Built-in calibration check.

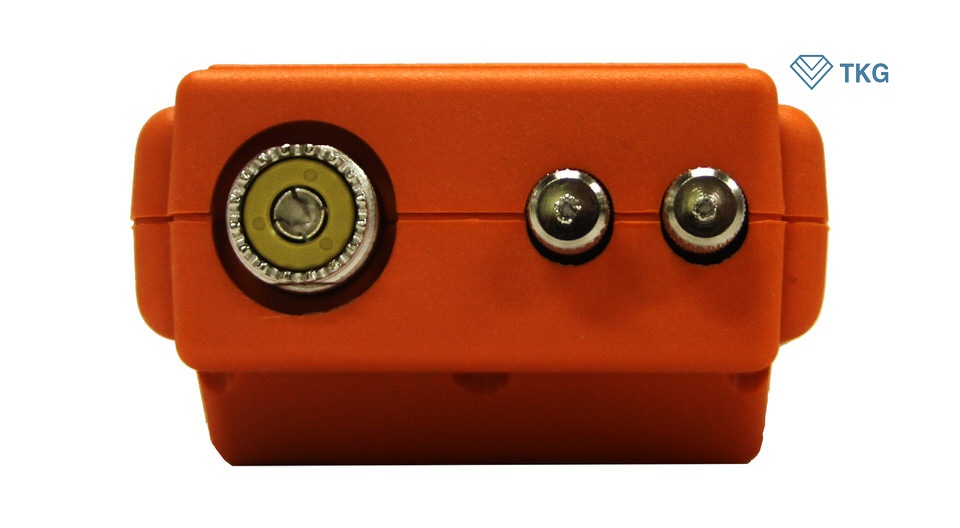

• Integral contact pins mounted on top of meter provide 5/16” penetration.
• Built-in connector accepts any Delmhorst electrode.
• Size: 8” x 3” x 1 5/8”.
• Weight: 10 oz.
• Rugged construction ensures years of reliable use.
• Sturdy plastic carrying case.
• 9V battery.
• 1-year warranty.

J-2000 ELECTRODES:

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

15-E

Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block. Used for veneer.

18-ES

Similar to 26-ES, the 18-ES has a 17" steel shaft. Comes with 608 insulated pins for 3 1/4" penetration. Ideal for timber, poles, and ties.

Also offered - 18-ED - with depth gauge to measure pin penetration.

18-ES:

18-ED:

22-E

Comes with A-111 uninsulated contact pins for 1 1/2" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.

22-E is also available as the 22- ET with a tapped handle for hard to reach areas.

26-ES

The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications:

• Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.
• Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
• Furniture manufacturers and craftsmen: Easily check high density hardwood that short pins are unable to penetrate.

Also available as the 26-ED, which includes gauge to measure pin penetration depth.

2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications:

• Home inspector: use on wood joists and drywall.
• Paper producer: use on curved surfaces such as cardboard and paper tubes.
• Woodworker: use on timber, poles, and veneer/

2-E is also available as the 2- ET with a tapped handle for hard to reach areas.

Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

42-E/B

T-handle electrode with 3/8" penetration and 3 ft. length to check moisture in stacks in or out of the kiln. Stickers must be at least 5/8". Also offered in a 4 1/2 ft. length as 42-EB/4-5.

42-EB:

42-EB/4-5:

4-E

Comes with 4 uninsulated 2497/A-100 contact pins for 5/16" penetration. Useful for:

• Dry-kiln operators: Use on kiln-dried boards up to 2" and on air-dried boards up to 5/4.
• Leather producers: Use for tough leather.

Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.
