Máy đo độ bóng Defelsko PosiTector GLS206085-3

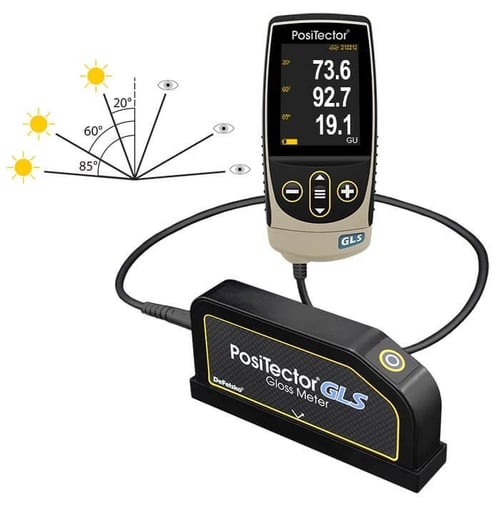

PosiTector® GLS

Gloss Meter

Portable gloss measurement for all surface finishes

• Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure
• Automatic Diagnosis and Auto Calibration performed upon power-on using the protective base plate with integrated calibration standard (tile)
• Fast measurement speeds of 60+ readings per minute
• 2 Powerful Scan Modes for quantifying large surfaces (Advanced models only)
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included

Features

Simple

• Fast measurement speed—60+ readings per minute

• Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings

Durable

• All-metal probe construction for long term stability

• Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure
• Ergonomic design with durable rubberized grip
• Rugged, indoor/outdoor instrument—ideal for field or shop use
• Shock-absorbing protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Powerful

• Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring

• Screen Capture—save 100 screen images for record keeping and review
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits—can be used as Pass/Fail for quick inspection
• Instant-on feature quickly powers up the gage if recently powered down
• Up to 30% longer battery life
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
• View pre-formatted reports and .csv data with PosiSoft USB Drive—no software installation required
• Every stored measurement is date and time stamped
• Includes PosiSoft Software for viewing and reporting data
• Software Updates via web keep your gage current

Accurate

• Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included

• Automatic Diagnosis and Auto Calibration upon power-on using the protective base plate with integrated calibration standard (tile)
• Store multiple calibration standards (tiles) for quick calibration adjustment
• Conforms to national and international standards including ISO and ASTM

Versatile

• PosiTector body accepts all PosiTector probes easily converting to a coating thickness gage, dew point meter, soluble surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage

• Selectable units for each geometry—Gloss and % Reflectance
• Auto rotating display with Flip Lock
• Selectable display languages

Specifications:

20°

60°

85°

Measurement Area:

10 x 10 mm

10 x 20 mm

4 x 45 mm

Measurement Range:

0 — 2,000 GU

0 — 1,000 GU

0 — 160 GU

Repeatability: ±0.2 GU (≤100 GU), ±0.2% (>100 GU)

Reproducibility: ±0.5 GU (≤100 GU), ±0.5% (>100 GU)

Resolution:

Gloss: ±0.1 GU (≤100 GU), ±1 GU (>100 GU)

% Reflectance: 0.1%

Haze: ±0.1 (≤100), ±1 (>100)

Operating Conditions: 0° to 45° C (32° to 113° F) - non-condensing

Probe Size: 165 x 73 x 32 mm (6.5" x 2.875" x 1.25")

Probe Weight: 555 g (19.6 oz.)
