Máy đo độ cứng Positector BHI1 (20-100 Barcol)

Model: BHI1
Hãng sản xuất: DeFelsko
Xuất xứ: USA.
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: BHI1
Hãng sản xuất: Defelsko
Xuất xứ: USA
Bảo hành: 12 tháng
Ứng dụng:
- Đo độ cứng của kim loại mềm như nhôm, hợp kim nhôm, đồng, đồng thau và các vật liệu khác nhựa cứng và nhựa gia cố bằng sợi
Tính năng:
- Lưu dữ liệu khoảng 250 kết quả đo
- Chống va đập bằng ốp lưng cao su
- Kết nối máy tính qua cổng USB, sử dụng phần mềm PosiSoft Desktop Manager
Thông số kỹ thuật:
- Giải đo: 20 - 100 Barcol
- Độ chính xác: ± 2 Barcol
  Độ phân giải: 0.1 Barcol
- Kích thước máy: 137 x 61 x 28 mm
- Trọng lượng: 185g
- Kích thước đầu đo: 145 x 97 x 64mm
- Trọng lượng: 400g
Cung cấp bao gồm :
- Máy chính PosiTector Standard
- Đầu dò rời BHI
- Đĩa thử, tấm kính
- Bọc cao su chống sốc
- Móc treo thắt lưng
- 03 pin AAA
- Chứng chỉ hiệu chuẩn nhà máy
- Cáp USB
- Hộp đựng
- Dây đeo tay
- Hướng Dẫn Sử Dụng

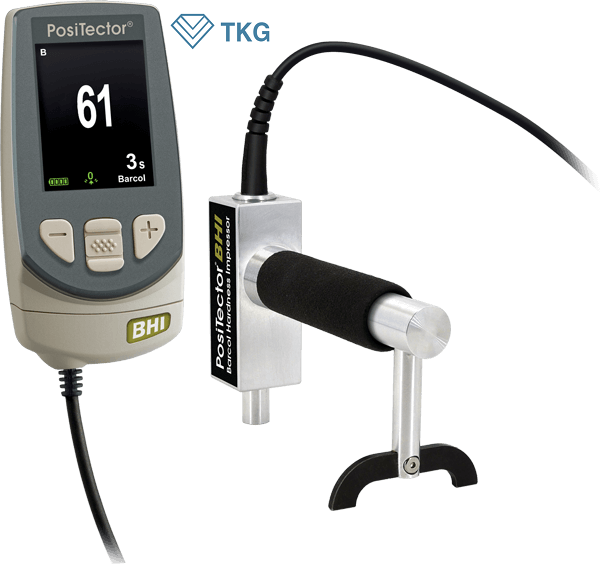

PosiTector® BHI

Barcol Hardness Impressor

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • Lightweight, portable device can be used in any orientation
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ASTM B648/D2583, DIN EN 59 and AS/NZS 3572.22


simple icon


  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • User-adjustable measurement time with onscreen countdown
  • Includes spare, field replaceable indentor with replacement tool
  • Lightweight, portable device can be used in any orientation
  • RESET feature instantly restores factory settings

durable icon


  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Shock-absorbing, protective rubber holster with belt clip
  • Hard-shell carrying case included
  • Two year warranty on gage body AND probe

accurate icon


  • Long Form Certificate of Calibration included
  • Hi-RES mode increases displayed resolution for use on applications that require greater precision
  • Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
  • Conforms to national and international standards including ASTM

versatile icon


  • PosiTector body accepts all PosiTector BHISHD6000200DPMIRTRTRSPGSST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage
  • 1 and 2 point calibration options with Cal Reset to restore factory settings
  • Selectable display languages
  • High contrast LCD with backlit display
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)

powerful icon


  • Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring
  • Screen Capture - save screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Sealed USB Port for fast, simple connection to a PC and to supply continuous power
  • PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Software Updates via web keep your gage current
  • Software Solutions for viewing, analyzing and reporting data
  • Every stored measurement is date and time stamped

specifications icon


PosiTector SHD specifications chart

View Dimensions

Standard Models

Includes ALL features as shown on left plus...

  • Storage of 250 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

  • Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Auto Sub-Batch—automatically create sub-batches after the required number of readings are taken
  • Live graphing of measurement data
  • Batch/Reading annotation—add notes and change batch names with onscreen QWERTY keyboard
  • Store thickness, profile, environmental, salt contamination, hardness and wall thickness measurements in individual batches
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

All gages come complete with test disks (2), leveling plate, replacement indentor with replacement tool, glass plate, protective rubber holster with belt clip, wrist strap, 3 AAA batteries, instructions, hard shell case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.

Probe Interchangeability

See probe compatibility chart for more information.
