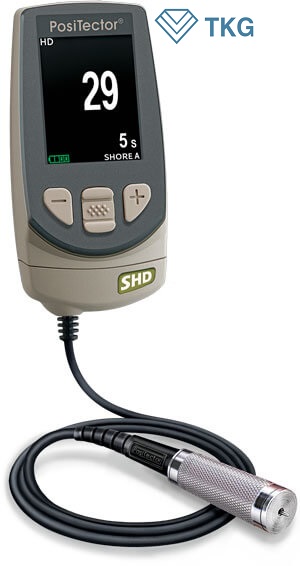

Máy đo độ cứng vật liệu PosiTector SHDA1 (0 - 100 Shore A)

PosiTector® SHD

Shore Hardness Durometers for the indentation hardness of non-metallic materials

Handheld electronic instrument measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges – Shore A and Shore D.

• User-adjustable measurement time with onscreen countdown to conform to national and international standards
• Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
• Solvent, acid, oil, water, and dust resistant – weatherproof
• PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505

Features

Simple

• Easy-to-read digital display
• User-adjustable measurement time with onscreen countdown to conform to national and international standards
• Enhanced one-handed menu navigation
• RESET feature instantly restores factory settings

Durable

• Solvent, acid, oil, water and dust resistant - weatherproof
• Shock-absorbing, protective rubber holster with belt clip
• Hardened steel indentor
• Two year warranty on gage body AND probe

Accurate

• Certificate of Calibration showing traceability to NIST included (Long Form)
• Auto Ignore mode disregards hardness readings below 20 and above 90 per international standards
• Hi-RES mode increases displayed resolution to 0.1
• Includes test block to verify operation
• Conforms to ASTM D2240, ISO 868/7267/7619 and DIN 53505

Versatile

• High contrast backlit display for bright or dark environments
• Selectable display languages
• Flip display enables right-side-up viewing
• Uses alkaline or rechargeable batteries (built-in charger)

Powerful

• Continually displays/updates average, standard deviation, min/max hardness and number of readings while measuring
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
• Software Updates via web keep your gage current
• Screen Capture – record and save image into USB flash memory for record keeping and review
• Software Solutions for viewing, analyzing & reporting data
• Every stored measurement is date and time stamped

Specifications

All gages come complete with test block, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, Long Form Certificate of Calibration traceable to NIST, protective lens shield, USB cable, PosiSoft Software, two (2) year warranty.

Standard Models

Includes ALL features as shown on left plus...

• Storage of 250 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

• Storage of 100,000 readings from multiple probes in up to 1,000 batches and sub-batches
• Auto Sub-Batch – automatically create sub-batches after the required number of readings are taken
• Live graphing of measurement data
• Batch/Reading annotation—add notes and change batch names with onscreen QWERTY keyboard
• Store thickness, profile, environmental, wall thickness and hardness measurements in individual batches
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

See probe compatibility chart for more information.
