Máy đo độ dày lớp phủ Wintact WT200A
Model: WT200A
Hãng sản xuất: Wintact
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Thông số kỹ thuật:
Dải đo: 0 đến 1,80mm
Độ phân giải chế độ ô tô: 0,05mm/2 triệu
Độ phân giải chế độ người dùng: 0,01mm/1 triệu
Độ chính xác: ± 0,1mm
Đường kính tối thiểu của chất nền: 50mm
Độ dày tối thiểu chất nền: 0,5mm
Nguồn cấp: Pin AAA 2*1.5V

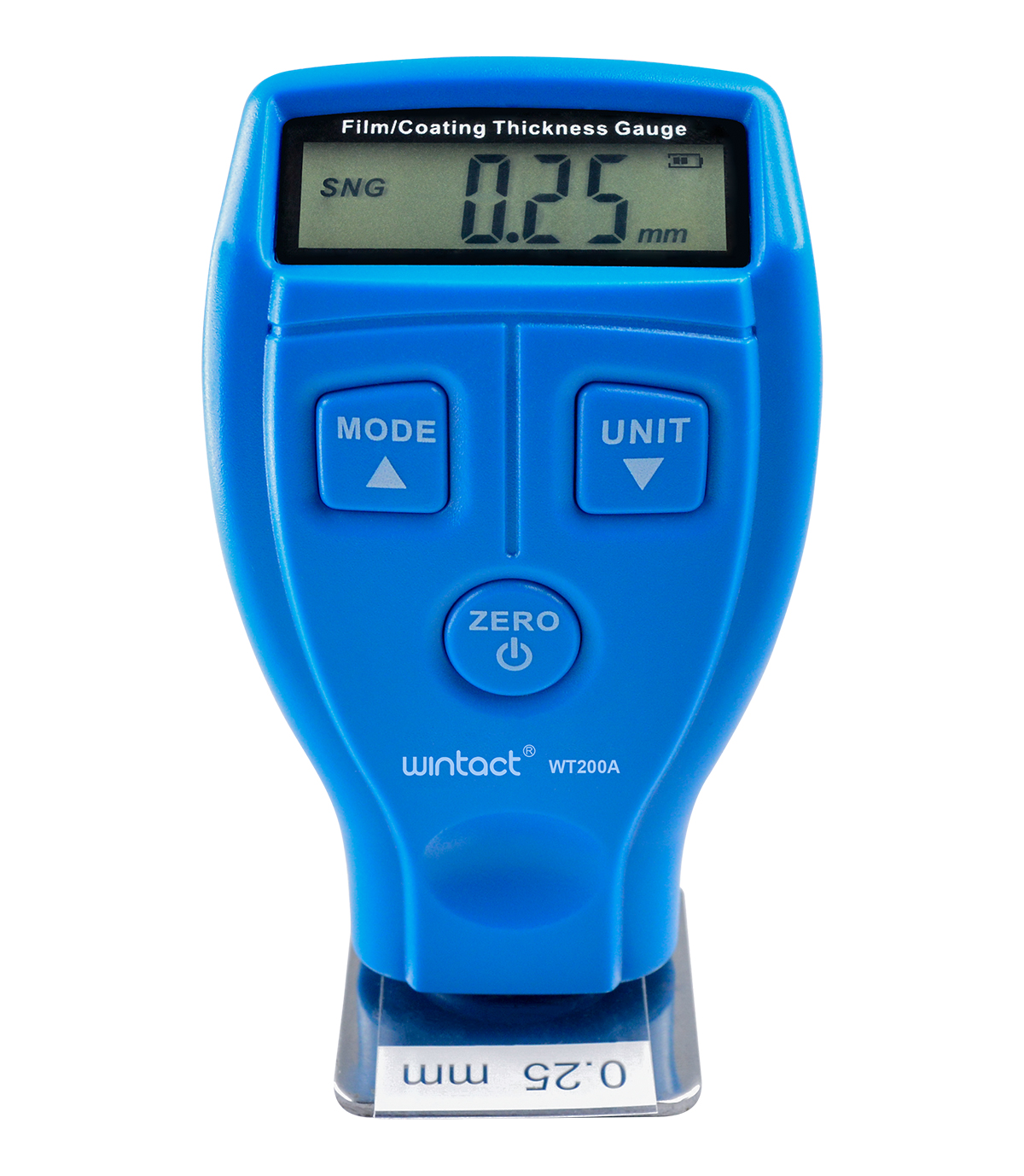

Máy đo độ dày lớp phủ Wintact WT200A
Coating film Thickness Gauge-colored display WT200A
This product is a portable coating thickness gauge,which can quickly, nondestructively, and accurately measure non-metallic coating thickness (such as paint,film, etc.) of metal substrate. It Is widely used in detection areas like manufacturing industry, Car washing industry, metal processing industry, chemical industry,and commodity inspection.
Measurement range |
0~1.80mm/0~71.0mil |
Car mode resolution |
0.05mm/2mil |
User mode resolution |
0.01mm/1mil |
Measurement error |
±0.1mm |
Minimum diameter of substrate |
50mm |
Minimum thickness of substrate |
0.5mm |
Temperature range |
18~30℃ |
Work humidity range |
10~80%RH |
Power |
2*1.5V AAA batteries |
