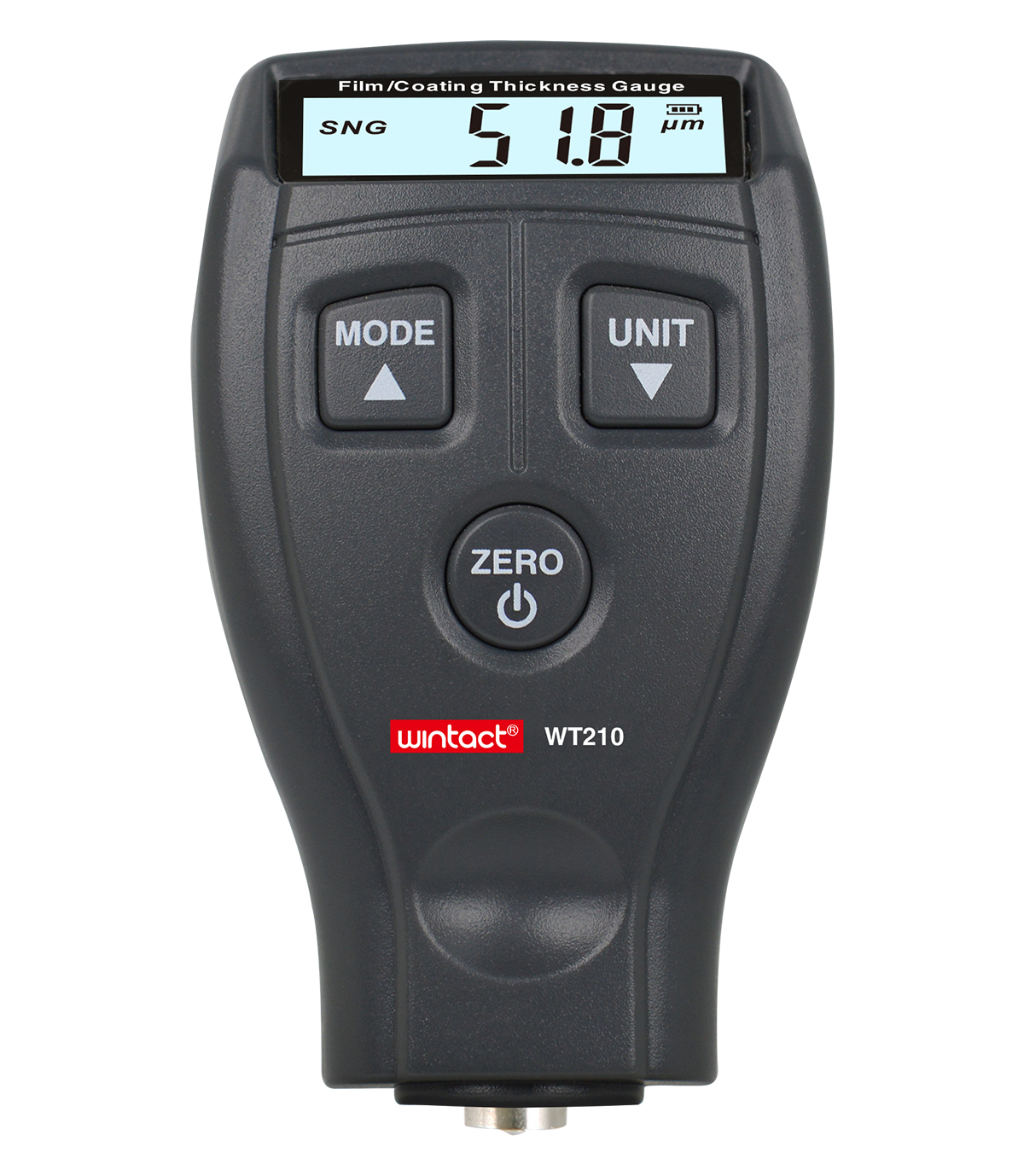

Máy đo độ dày lớp phủ Wintact WT210
Model: WT210
Hãng sản xuất: Wintact
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Thông số kỹ thuật:
Dải đo: 0 đến 1800μm
Độ phân giải: 0.1 μm/1μm/0.1mil
Độ chính xác: ±(3%H+1μm)
Đường kính tối thiểu của nền: φ12mm
Chiều dày tối thiểu của nền: 0.5mm
Bán kính cong lồi tối thiểu của nền: 2mm
Bán kính cong lõm tối thiểu của nền: 11mm
Nguồn cấp: 2 pin 1.5V AAA
Kích thước: 61.98*30.57*107.99mm
Trọng lượng: 64g
Máy đo độ dày lớp phủ Wintact WT210
Coating film Thickness Gauge-colored display WT210
This product is a portable coating thickness gauge for fast,accurate and nondestructive measurement of the thickness of non-magnetic coatings (such as paint, electroplated coating and film) on magnetic metal substrates. This product has seen wide application in manufacture, metal working, chemical industry,commodity inspection and other fields
Measurement ranges |
0~1800μm/0~70.9mil |
Resolution |
0.1 μm/1μm/0.1mil |
Measurement error |
±(3%H+1μm) |
Min. diameter of substrate |
φ12mm |
Min. thickness of substrate |
0.5mm |
Min. curvature radius of convex substrate |
2mm |
Min. curvature radius of concave substrate |
11mm |
Power supply |
2*1.5V AAA batteries |
Operating temperature range |
0 ~ 40℃ |
Operating humidity range |
10~95%RH |
Overall dimensions |
61.98*30.57*107.99mm |
Weight |
63.98g( excluding of batteries) |
