Máy đo độ dày lớp phủ Wintact WT2100
Model: WT2100
Hãng sản xuất: Wintact
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Thông số kỹ thuật:
Đo độ dày lớp phủ không từ tính trên bề mặt kim loại từ tính
bề mặt nền kim loại
Dải đo: 0 đến 1800μm
Độ phân giải: 0.1 μm/1μm/0.1mil
Độ chính xác: ±(3%H+1μm)
Đường kính tối thiểu của nền từ tính: 12mm
Chiều dày tối thiểu của nền từ tính: 0.5mm
Bán kính cong lồi tối thiểu của nền từ tính: 2mm
Bán kính cong lõm tối thiểu của nền từ tính: 11mm
Nguồn cấp: 3 pin 1.2V NiMH
Kích thước: 70.30*38.6*149.59mm
Trọng lượng: 137g
Máy đo độ dày lớp phủ Wintact WT2100

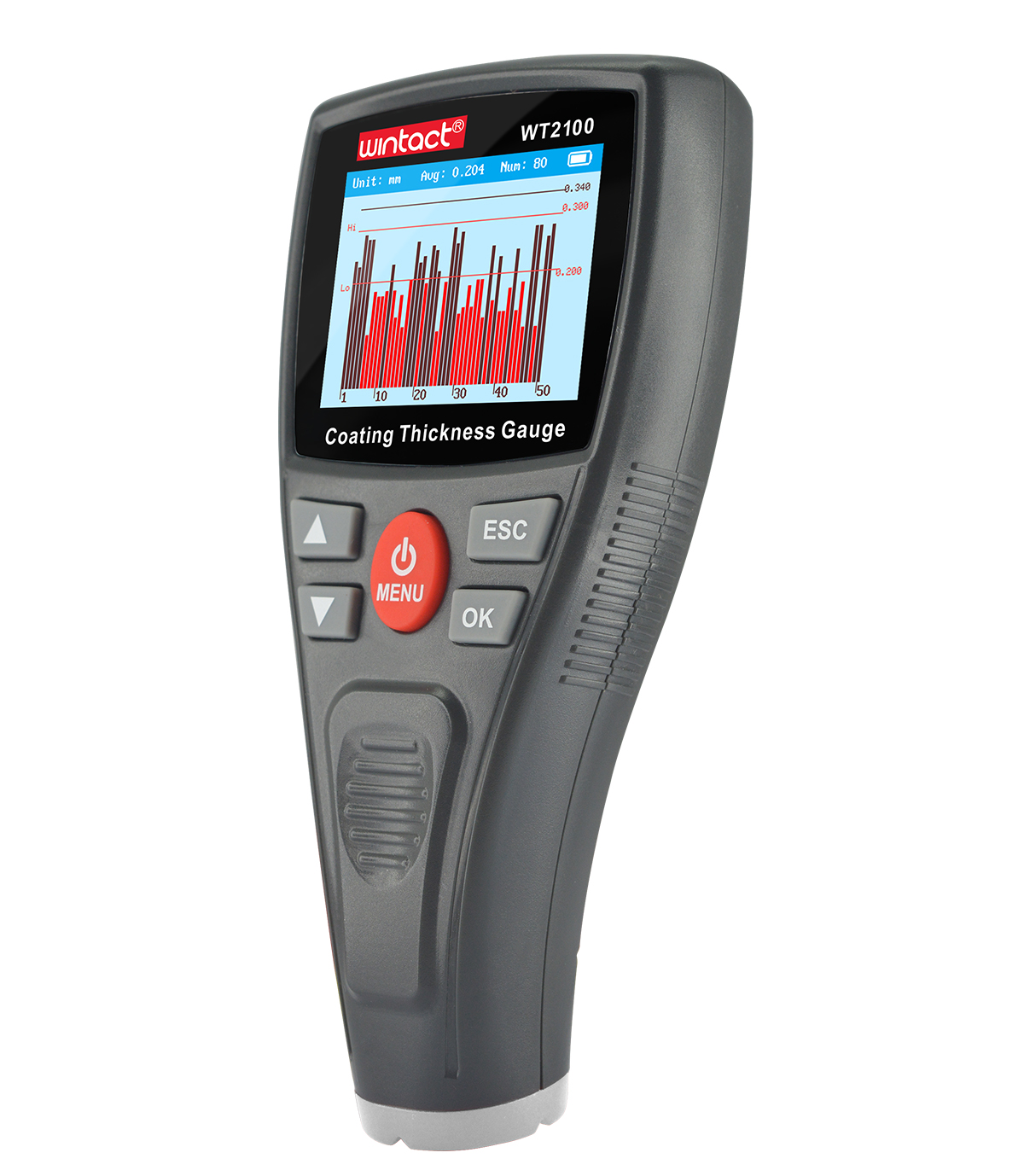

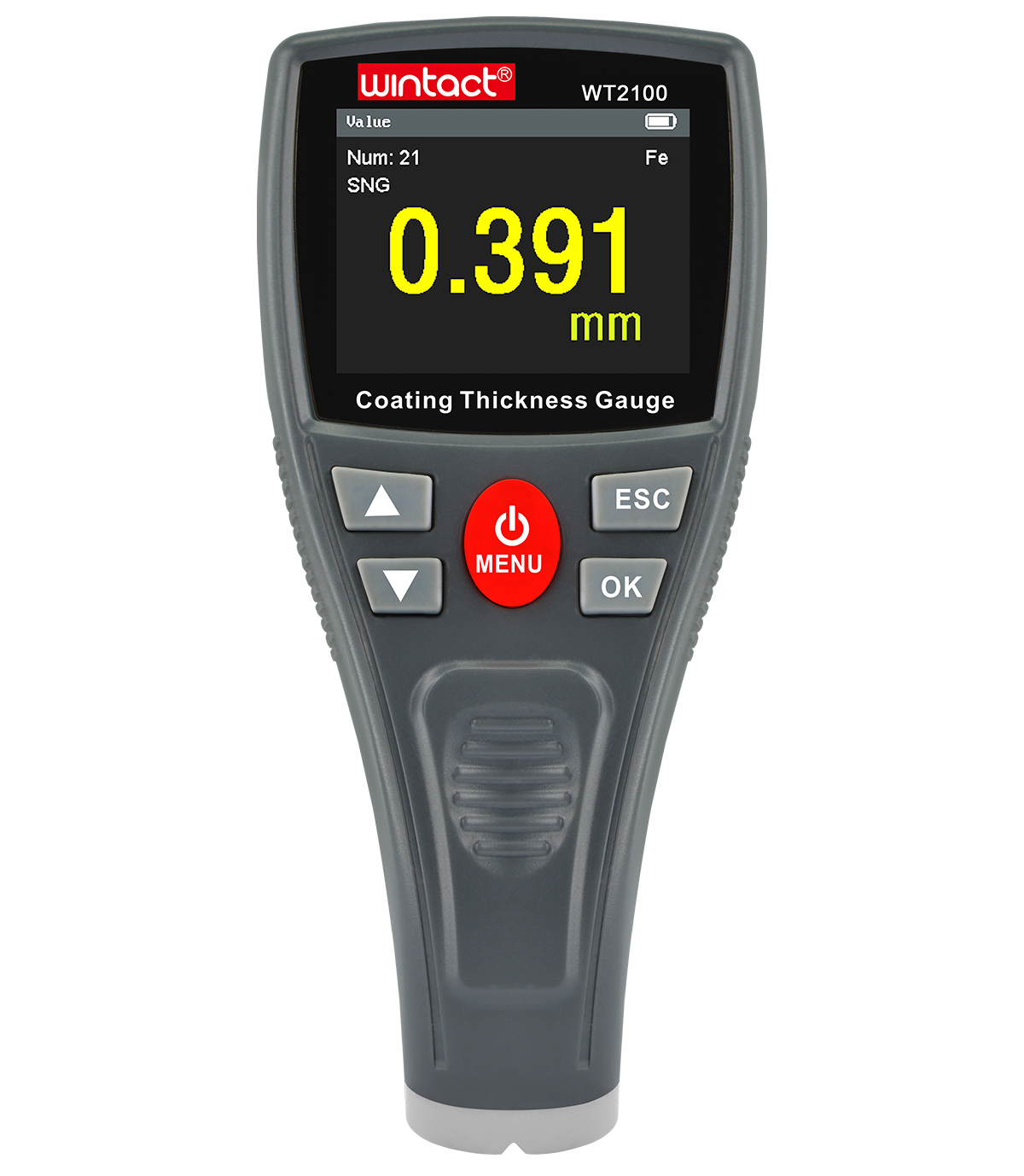

Coating film Thickness Gauge-colored display WT2100
This product is a color-screen portable coating thickness gauge with high-definition display. It can quickly, non-destructively and accurately measure the thickness of non-magnetic coating (such as paint, electroplate, thin film, etc.) on magnetic metal substrates. It is widely used in manufacturing, metal processing,chemical industry, commodity inspection and other testing areas
Measurement range |
0~1800um/0~70.9mil |
Resolution |
( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm |
Measurement error |
≤150μm ±5μm |
>150μm ±(3%H+1μm) |
|
Minimum diameter of magnetic metal substrate |
12mm |
Minimum thickness of magnetic metal substrate |
0.5mm |
Minimum radius of curvature for magnetic convex substrate |
2mm |
Minimum radius of curvature for magnetic concave substrate |
11mm |
Battery |
3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter |
Size |
70.30*38.6*149.59mm |
Weight |
136.9(including battery) |
