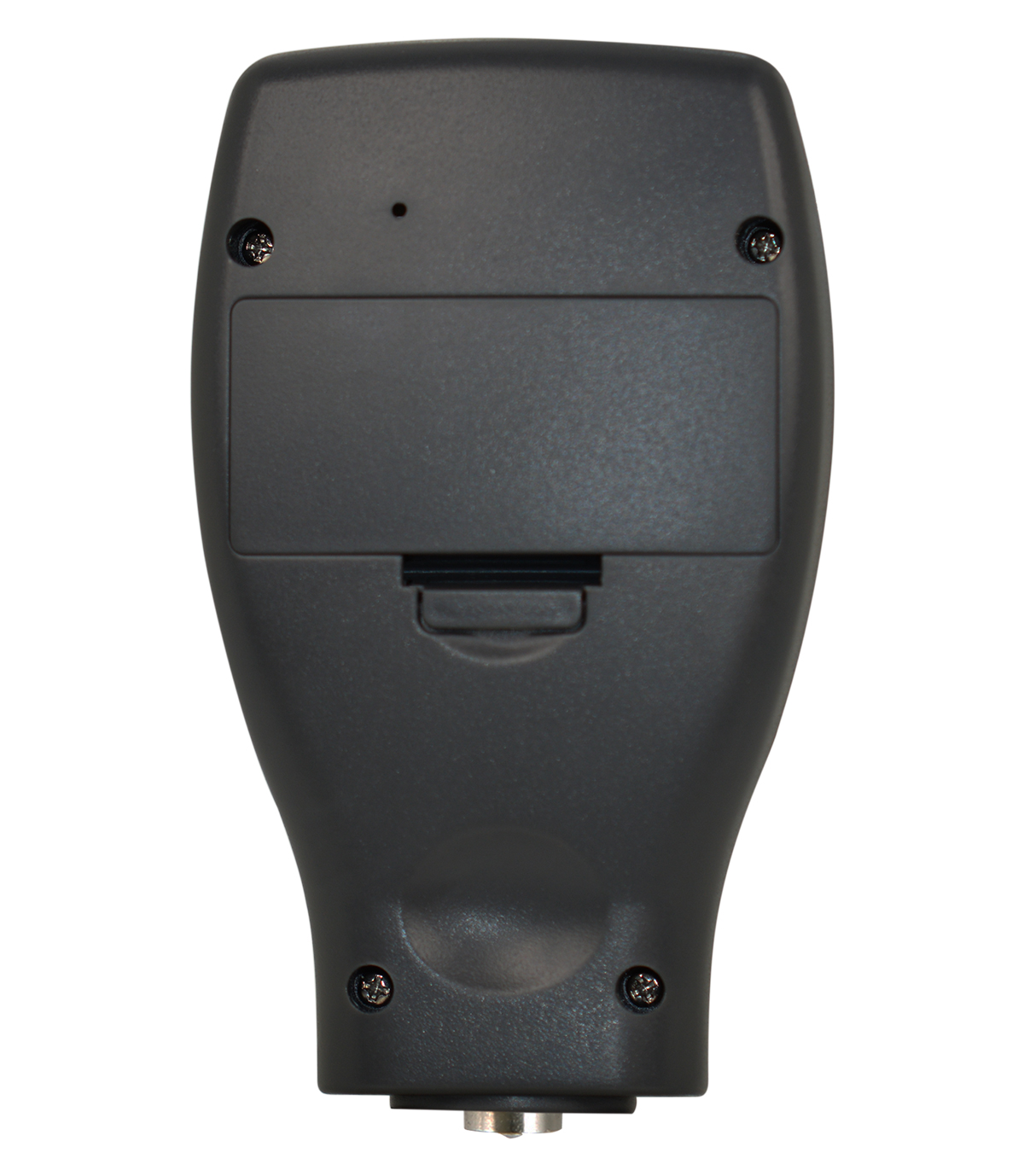

Máy đo độ dày lớp phủ Wintact WT211
Model: WT211
Hãng sản xuất: Wintact
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Thông số kỹ thuật:
Dải đo: 0 đến 1500μm
Độ phân giải: 0.1 μm/1μm/0.1mil
Độ chính xác: ±(3%H+1μm)
Đường kính tối thiểu của nền từ tính: 12mm
Chiều dày tối thiểu của nền từ tính: 0.5mm
Bán kính cong lồi tối thiểu của nền từ tính: 2mm
Bán kính cong lõm tối thiểu của nền từ tính: 11mm
Đường kính tối thiểu của nền không từ tính: 12mm
Chiều dày tối thiểu của nền không từ tính: 0.5mm
Nguồn cấp: 2 pin 1.5V AAA
Kích thước: 61.98*30.57*107.99mm
Trọng lượng: 64g
Máy đo độ dày lớp phủ Wintact WT211
Coating film Thickness Gauge-colored display WT211
This unit can make a quick and effective measurement of the thickness of the non- magnetic metal film on the nonmagnetic metal substrate and the non magnetic film of the magnetic metal substrate, be able to identify the magnetic or nonmagnetic metal substrate automatically, widely be applied in manufacturing industry, metal process, chemical industry, and business inspection.
Measurement ranges |
0~1500μm/0~59mil/0~1.5mm |
Resolution |
(0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm |
Measuring error |
≤150μm ±5μm |
>150μm ±(3%H+1μm) |
|
Minimum diameter of magnetic substrate |
12mm |
Minimum thickness of magnetic substrate |
0.5mm |
Minimum curvature radius of convex magnetic substrate |
2mm |
Minimum curvature radius of concave magnetic substrate |
11mm |
Minimum diameter of non-magneticsubstrate |
50mm |
Minimum thickness of non-magnetic substrate |
0.5mm |
Operating temperature range |
0~40℃ |
Operating humidity range |
10~95%RH |
Power supply |
2*1.5V AAA batteries |
Overall dimensions |
61.98*30.57*107.99mm |
Weight |
63.98g(excluding of batteries) |
