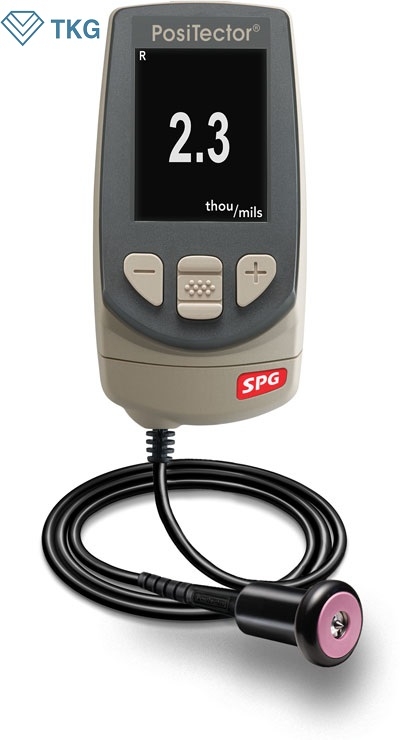

Máy đo độ nhám bề mặt PosiTector SPG S1 (0 – 500 μm)

Model: PosiTector SPG S1
Hãng sản xuất: DeFelsko
Xuất xứ: USA.
Bảo hành: 12 tháng
19.910.000₫
* Giá sản phẩm chưa bao gồm VAT
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: PosiTector SPG S1
Hãng sản xuất: Defelsko
Xuất xứ: USA
Bảo hành: 12 tháng
Ứng dụng:
- Đo độ nhám bề mặt (chuyện dụng cho bề mặt kim loại sắt)
- Đầu kim đo nhọn góc 60°
- Phương pháp tính độ nhám: tính giá trị trung bình của độ cao (peak-to-valley) của bề mặt (phương pháp Surface Profile)
Đặc tính:
- Tốc độ đo nhanh (50 kết quả đo/phút) - Thích hợp với việc kiểm tra độ nhám trên diện tích rộng mà vẫn đảm bảo độ chính xác cao và tiết kiệm thời gian.
- Màn hình LCD dễ đọc thông số và tương đối rộng
- Menu điều hướng sử dụng dễ dàng bằng một tay.
- Tính năng RESET đưa máy về cài đặt hiệu chuẩn tại nhà máy.
- Tích hợp chức năng bù nhiệt đảm bảo độ chính xác cao cho máy.
- Thân máy PosiTector chấp nhận nhiều loại đầu dò đo các chỉ tiêu khác như PosiTector 6000, 200, DPM,UTG, RTR và SPGvà dễ dàng chuyển đổi từ máy đo độ nhám sang máy đo độ dày lớp phủ hay máy đo độ dày vật liệu và nhiều máy khác
- Tính năng cảnh bảo "HiLo alarm" cho người dùng biết giá trị đo vượt quá cho phép bằng hiển thị trên màn hình và âm thanh phát ra từ thân máy.
- Chụp ảnh màn hình Screen Capture - ghi và lưu lại hình ảnh vào bộ nhớ USB trong máy.
- Lưu dữ liệu khoảng 250 kết quả đo
- Cổng USB cho phép kết nối nhanh và đơn giản tới máy tính và cung cấp nguồn điện cho máy. Cáp USB đã bao gồm theo máy.
- Giải pháp PosiSoft cho phép xem, phân tích và báo cáo dữ liệu.
- PosiSoft USB Drive - Kết quả đo và đồ thị đã lưu có thể được truy cập bằng các trình duyệt web hay trình file của máy tính Window hoặc Macmà không cần dùng thêm bất kỳ phần mềm nào khác.
Thông số kỹ thuật:
- Khoảng đo: 0-500 µm
- Độ chính xác: ± (5µm + 5%) toàn thang đo.
- Đầu đo: 60°
- Bán kính vật đo: 50 μm
- Kích thước: 137 x 61 x 28 mm
- Trọng lượng: 140g
Cung cấp bao gồm:
Thân máy chính PosiTector Standard, đầu dò kim nhọn, miếng chuẩn Zero, miếng chuẩn nhám 76 µm, ốp lưng cao su, túi đựng, móc treo thắt lưng, cáp USB, dây đeo tay, Hướng Dẫn Sử Dụng, chứng chỉ hiệu chuẩn NIST

PosiTector® SPG

Surface Profile Gages for Blasted Steel, Textured Coatings and Concrete Profile

Digital depth micrometer measures and records peak to valley surface profile heights
  • Solvent, acid, oil, water, and dust resistant – weatherproof
  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy – field replaceable
  • PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
  • Fast measurement rate of over 50 readings per minute – ideal for quickly and accurately measuring large surfaces
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to PTB included (Long Form)

Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30° tip), U.S. Navy NSI 009-32, SANS 5772 and others

Features

simple icon

Simple

  • Fast measurement rate of over 50 readings per minute – ideal for quickly and accurately measuring large surfaces
  • Enhanced one-handed menu navigation
  • RESET feature instantly restores factory settings

durable icon

Durable

  • Alumina wear face and tungsten carbide tip for long life and continuous accuracy – field replaceable tips
  • Solvent, acid, oil, water and dust resistant - weatherproof
  • Rugged, indoor/outdoor instrument - ideal for field or shop use
  • Shock-absorbing, protective rubber holster with belt clip
  • Two year warranty on gage body AND probe

accurate icon

Accurate

  • Certificate of Calibration showing traceability to PTB included (Long Form)
  • Built-in temperature compensation ensures measurement accuracy
  • Glass Zero Plate and metal check shim included
  • Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17

versatile icon

Versatile

  • 30º angle interchangeable probe tip available for special surface profile applications
  • Cabled probes available for blasted steel, textured coatings and concrete profile
  • Selectable display languages
  • High contrast LCD with backlit display
  • Flip display enables right-side-up viewing
  • Uses alkaline or rechargeable batteries (built-in charger)
  • Mils/Microns switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max depth and number of readings while measuring
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • FAST mode – faster measurement speed for quick inspection
  • Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • Software Updates via web keep your gage current
  • Screen Capture – record and save image into USB flash memory for record keeping and review
  • Software Solutions for viewing, analyzing & reporting data
  • Every stored measurement is date and time stamped

Probe Interchangeability

See probe compatibility chart for more information.

Standard Models

Includes ALL features as shown on left plus...

  • Storage of 250 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...

  • Storage of 100,000 readings in up to 1,000 batches and sub-batches
  • SmartBatch™ allows entry of user-defined parameters and criteria to comply with various standards and test methods
  • Live graphing of measurement data
  • Onscreen Batch Annotation—add notes, change batch names and more with built-in QWERTY keyboard
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

for Blasted Steel

MEASURING RANGE

0 – 500 μm        0 – 20 mils

ACCURACY

± (5 μm + 5%)
± (0.2 mil + 5%)

TIP

Angle: 60 Degree*
Radius: 50 μm (2 mils)

PosiTector SPG with Standard Body

SPG 1

View PDFPosiTector SPGS with Standard Body

SPG S1

View PDFPosiTector SPGOS with Standard Body

NEW SPG OS1^

View PDF

* 30 degree tips available for conformance to Australian standard AS3894.5-C

The PosiTector SPG OS is a surface profile gage ideal for measuring the peak-to-valley surface profile height of flat or convex surfaces with an OD above 3mm (0.125”) such as pipes and tanks.

for Textured Coatings

MEASURING RANGE

0 – 1500 μm       0 – 60 mils

ACCURACY

± (5 μm + 5%)
± (0.2 mil + 5%)

TIP

Angle: 60 Degree
Radius: 500 μm (20 mils)

PosiTector SPGCS with Standard Body

SPG CS1

View PDF

for Concrete Profile

MEASURING RANGE

0 – 6 mm       0 – 250 mils

ACCURACY

± (25 μm + 1%)
± (1 mil + 1%)

TIP

Angle: 60 Degree
Radius: 500 μm (20 mils)

PosiTector SPGTS with Standard Body

SPG TS1

View PDF

Accessories

PosiTector Probes

PosiTector bodies accept all PosiTector probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, hardness and ultrasonic thickness gage.

Learn MoreBluetooth Printer

Battery-operated and light weight, this Bluetooth Printer prints readings and statistical summaries via Bluetooth from Advanced models.

Learn MoreAC Power Kit

Use for continuous operation or battery charging. This kit supplies several alternate power solutions for your battery-operated PosiTector. Operate your gage without the need for batteries.

Learn MorePosiTector Case

Convenient hard shell case for carrying a PosiTector gage body and multiple probes

Learn MoreRechargeable Batteries

Precharged batteries ready to use with a considerably longer run time than conventional Nickel Cadmium batteries. High performance in low temperatures and no charger required.

Learn MoreProtective Lens Shield

Pack of 5 thin plastic lens shields to protect PosiTector display from paint overspray. One lens shield included in every PosiTector purchase.

Learn MoreNon-Certified Metal Shim & Glass Zero Plate

Provides a quick accuracy check of the instrument and allows the user to perform practice measurements

Learn MoreCertified SPG Standards

Used to verify the accuracy and operation of surface profile depth micrometers

Learn MoreReplacement Tungsten Carbide Probe Tips

Replacement probe tips - 2 angles available: 60° or 30°

Learn MorePelican Cases for PosiTector Inspection Kits

Heavy-duty, waterproof Pelican cases complete with a custom foam insert to securely hold your PosiTector instrument.

Learn MoreLarge V-groove Adaptor

For enhanced stability on 30 - 45 cm (12 - 18") OD pipes (for PosiTector SPG OS only).

PosiTector SPG - Basic Operation

PosiTector SmartLink
