Máy đo độ ồn EXTECH SL130W
Model: SL130W
Hãng sản xuất: Extech - Mỹ
Xuất xứ: China
Bảo hành: 12 tháng
Thông số kỹ thuật:
Màn hình: 4.6 x 3.125" (117x79mm) màn LCD đa chức năng
Tần số băng thông: 31.5 Hz đến 8 kHz
Microphone: 0.5" Micro tĩnh điện Electret (tháo rời được)
Dải đo: 30 đến 80dB, 60 đến 110dB, 80 đến 130dB
Độ phân giải: 0.1dB
Kiểu đo: 'A' and 'C'
Thời gian hồi đáp: Nhanh: 125ms / Chậm: 1s
Báo động đầu ra: 3.5mm phích cắm điện thoại đơn, Tối đa: 3.4mA @ 5 VDC
Đầu ra tối thiểu: Điện áp: 2.5 VDC
Nguồn điện: Bộ nguồn AC/DC đầy đủ chức năng; Pin 8xAA chỉ kiểm soát chức năng không có đèn báo LED
Kích thước: 22x18x3.2cm
Trọng lượng: 285g
Phụ kiện: Pin, 100-240V AC 50/60Hz adapto, HDSD.
Máy đo độ ồn EXTECH SL130W

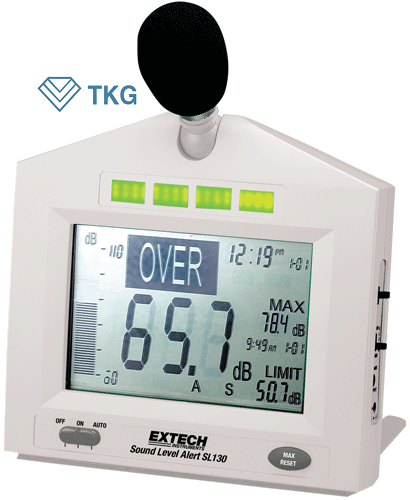

Extech SL130W: Sound Level Alert with Alarm
30-130dB Meter with built-in under/over-range LEDs indicators
The SL130W is a sound level alert with alarm for continuous monitoring of sound levels. Ideal for industrial, hospital, auditoriums, schools and other areas where there is a need for being alerted when sound level reaches set points. Bright LEDs (red flashing or green) alert user when sound level is too high or too low - LEDs can be read from 30m (100ft). You can set the SL130 so the RED LEDs flash when the sound level is below the"LO" set point where people in the audience may not be able to hear. When the sound level is above the "LO" set point, the GREEN LEDs indicate the sound level is acceptable. You can reverse the Red and Green LEDs activation per user color preference. Wall, desk or tripod mount with optional 15ft (5m) microphone extension cable for remote monitoring. User settable high or low limit (30 to 130dB) with output to drive external relay module. Meets ANSI Type 2 and EN 60651 accuracy specs - compliant to OSHA. Complete with 100-240V AC 50/60Hz adapter and microphone wind cover. 8 x AA batteries (not included) can be used for monitoring function only without LED alert.
Specifications | Range |
---|---|
Display | 4.6 x 3.125" (117x79mm) multifunction LCD |
Frequency bandwidth | 31.5 Hz to 8 kHz |
Microphone | 0.5" Electret Condenser Microphone (detachable) |
Measurement ranges | 30 to 80dB, 60 to 110dB, 80 to 130dB |
Frequency weighting | 'A' and 'C' |
Response time | Fast: 125ms / Slow: 1s |
Resolution | 0.1dB |
Alarm output | 3.5mm Mono Phone Plug, Maximum: 3.4mA @ 5 VDC |
Minimum Output | Voltage: 2.5 VDC |
Power | AC/DC Adaptor for full functions; 8xAA batteries for monitoring function only without LED alert |
Dimensions/Weight | 8.75x7.1x1.25" / 0.63 lbs. (22x18x3.2cm / 285g) |
