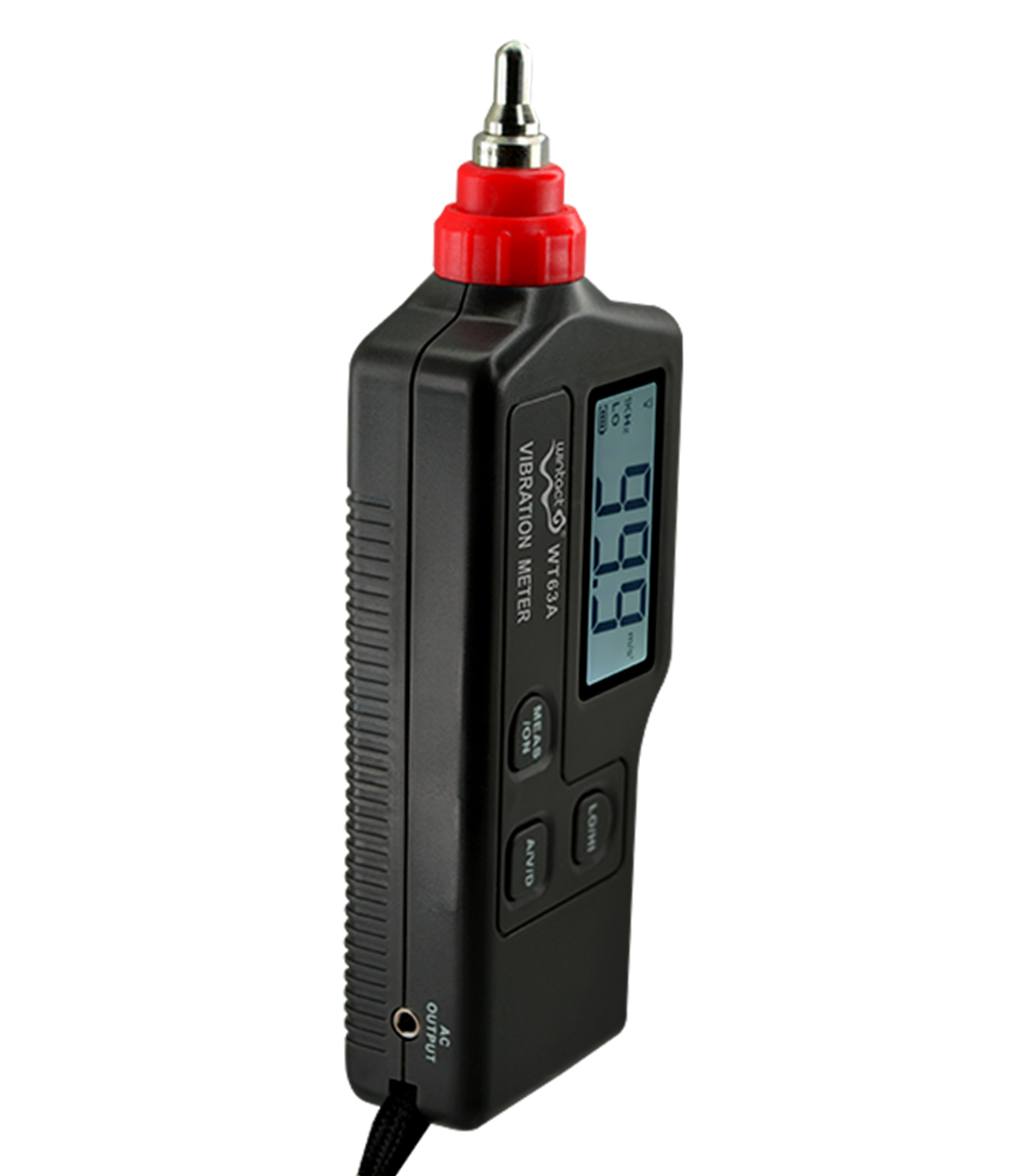

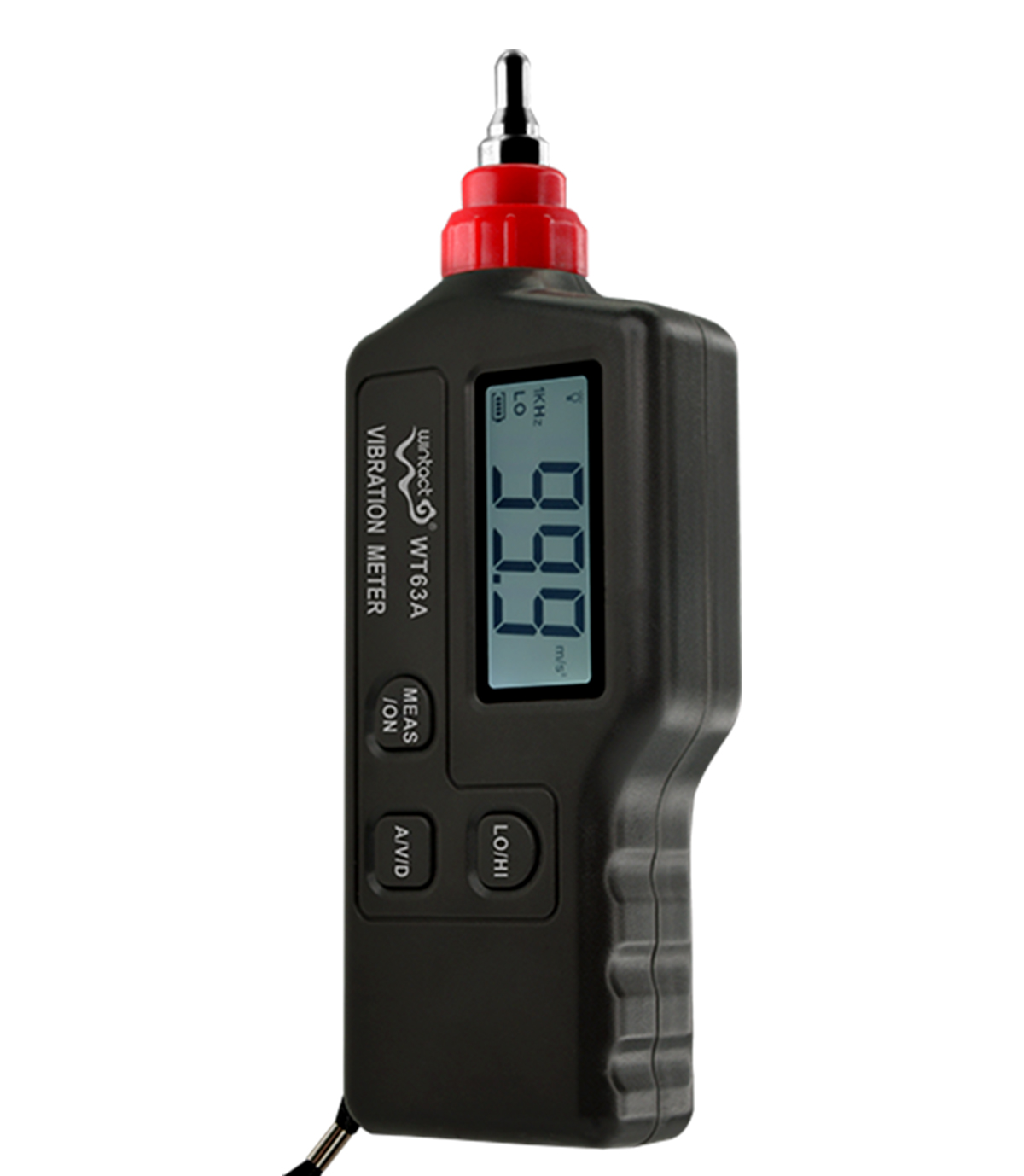

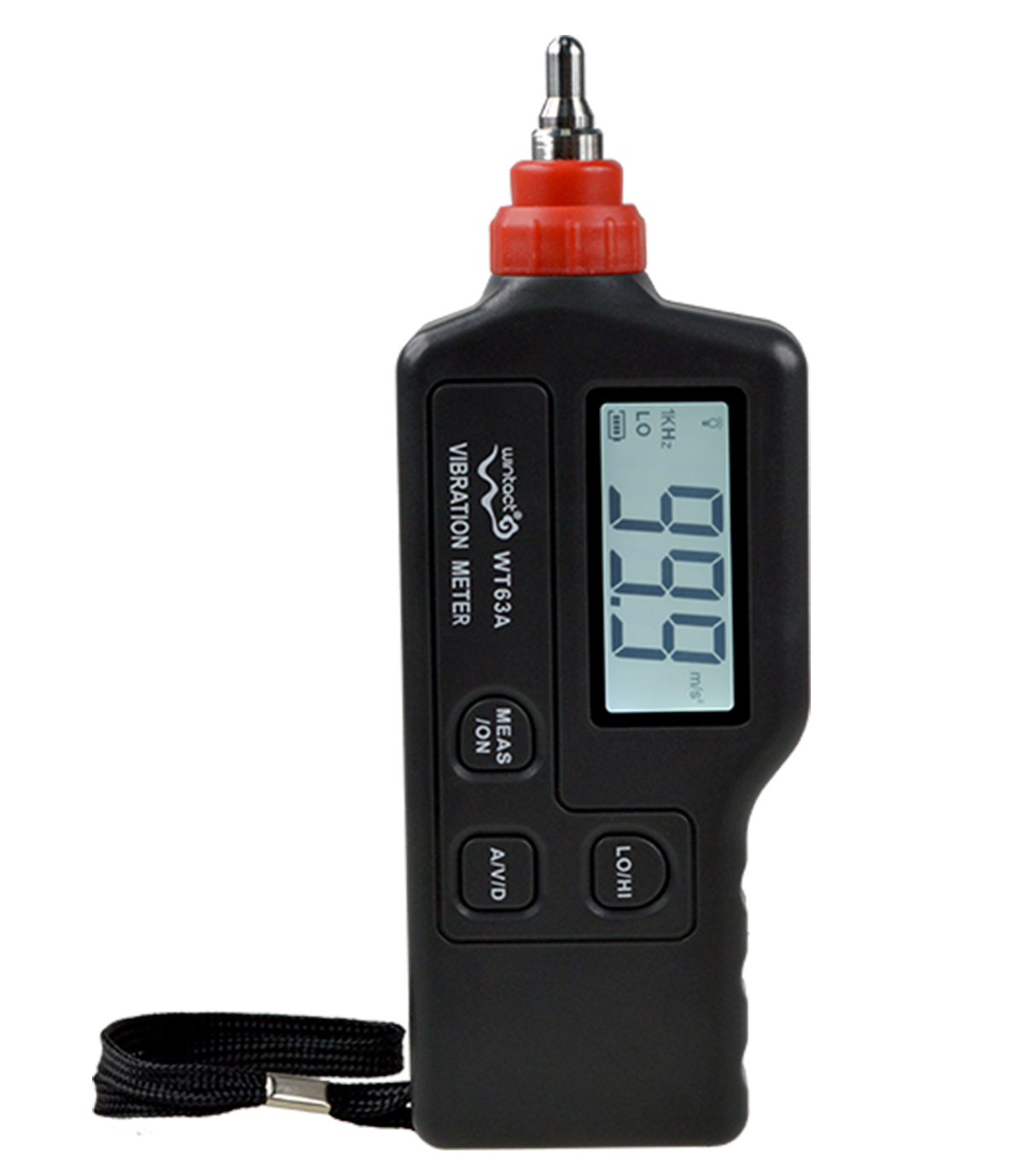

Máy đo độ rung Wintact WT63A

Model: WT63A
Hãng sản xuất: Wintact
Xuất xứ: China
Bảo hành: 12 tháng
2.800.000₫
* Giá sản phẩm chưa bao gồm VAT
Tình trạng: Còn hàng
Điện thoại: 0976595968

Máy đo độ rung Wintact WT63A

Model: WT63A
Hãng sản xuất: Wintact
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Thông số kỹ thuật:
Gia tốc: 0,1 đến 199,9m/s²
Vận tốc: 0,1 đến 199,9 mm/giây hiệu dụng
Độ dịch chuyển: 0,001 đến 1,999mm pp
Đo lường độ chính xác: ±5%±2 chữ số
Tần số đo phạm vi gia tốc: 10Hz đến 1KHz (LO) 1KHz đến 15KHz (HI)
Tần số đo phạm vi vận tốc: 10Hz đến 1KHz (LO)
Dải tần số dịch chuyển:10Hz đến 1KHz (LO)
Hiển thị chu kỳ cập nhật: 1 giây
màn hình LCD: Hiển thị 3 1/2 chữ số
Đầu ra đơn:
– Đầu ra AC đỉnh 2 V (hiển thị toàn thang đo)
– Trở kháng tải 10KΩ
Nguồn cấp: Pin kiềm 9V
Dòng tĩnh: 20μA
Dòng điện hoạt động: 25mA
Tuổi thọ pin: 20 giờ sử dụng liên tục
Tự động tắt nguồn: Tự động tắt sau 60 giây
LCD đèn nền: 7 giây
Chỉ báo pin yếu: 6,9V±0,2V
Kích thước: 67x30x183mm
Cân nặng: 182g (bao gồm pin)

Máy đo độ rung Wintact WT63A





Vibration Meter WT63A

This product adopts piezoelectric effect of artificial po-larized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc.

Technical parameter

Technical specification

Vibration pickup

Piezoelectric ceramic accelerometer (shear-type)

Measurement range

of acceleration

0.1~199.9m/s² peak

Measurement range

of velocity

0.1~199.9mm/s rms

Measurement range

of displacement

0.001~1.999mm p-p

Velocity and displacement range is limited by

2 acceleration199.9m/s²

Measurement accuracy

±5%±2digits

Measurement frequency

range of acceleration

10Hz~1KHz (LO) 1KHz~15KHz (HI)

Measurement frequency

range of velocity

10Hz~1KHz (LO)

Measurement frequency

range of displacement

10Hz~1KHz (LO)

Displays update cycle

1 second

LCD display

3 1/2 digits display

Single output

AC output 2 V peak (display full scale)

Load impedance 10KΩor more earphones

can be connected

Power supply

9V Alkaline battery

Static current

≤20μA

Operating current

≤25mA

Battery life

20 hours continuous use

Auto power-off

Turns off automatically in 60 seconds

LCD backlight

7 seconds

Operating temperature range

0~40℃

Operating humidity range

30~90%RH

Low battery indication

6.9V±0.2V

Dimensions

67x30x183mm

Weight

182g ( including battery)
