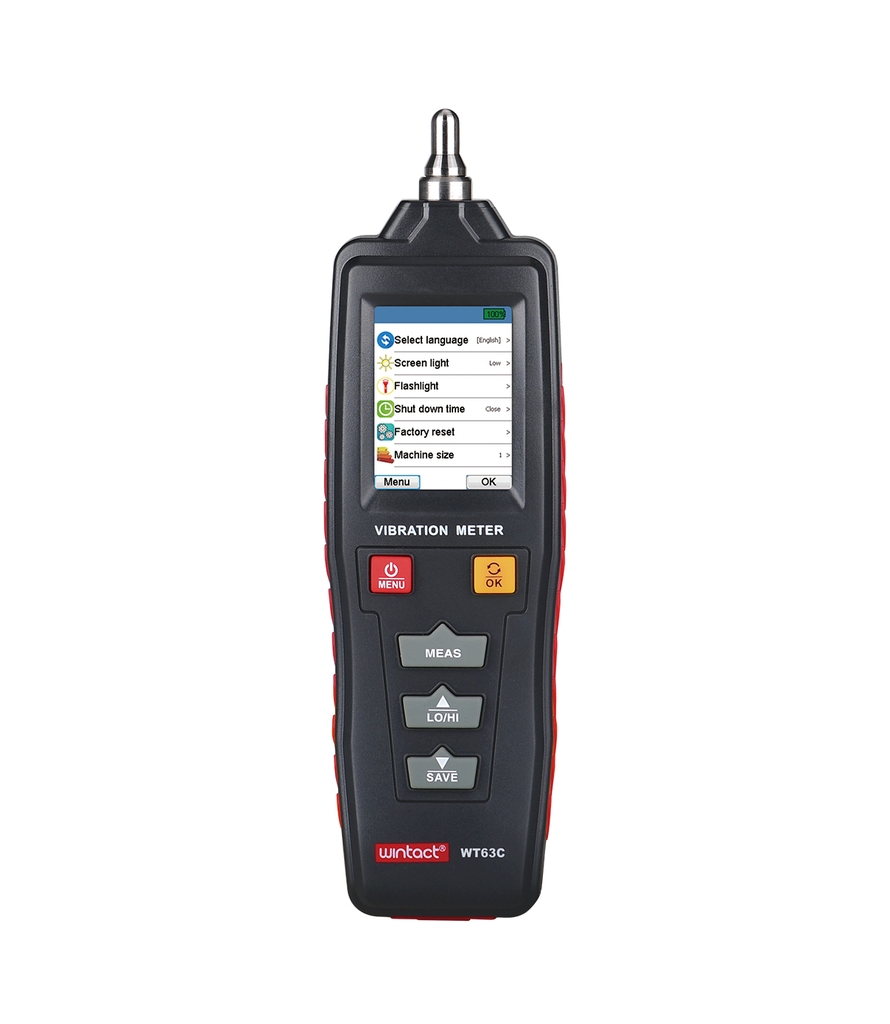

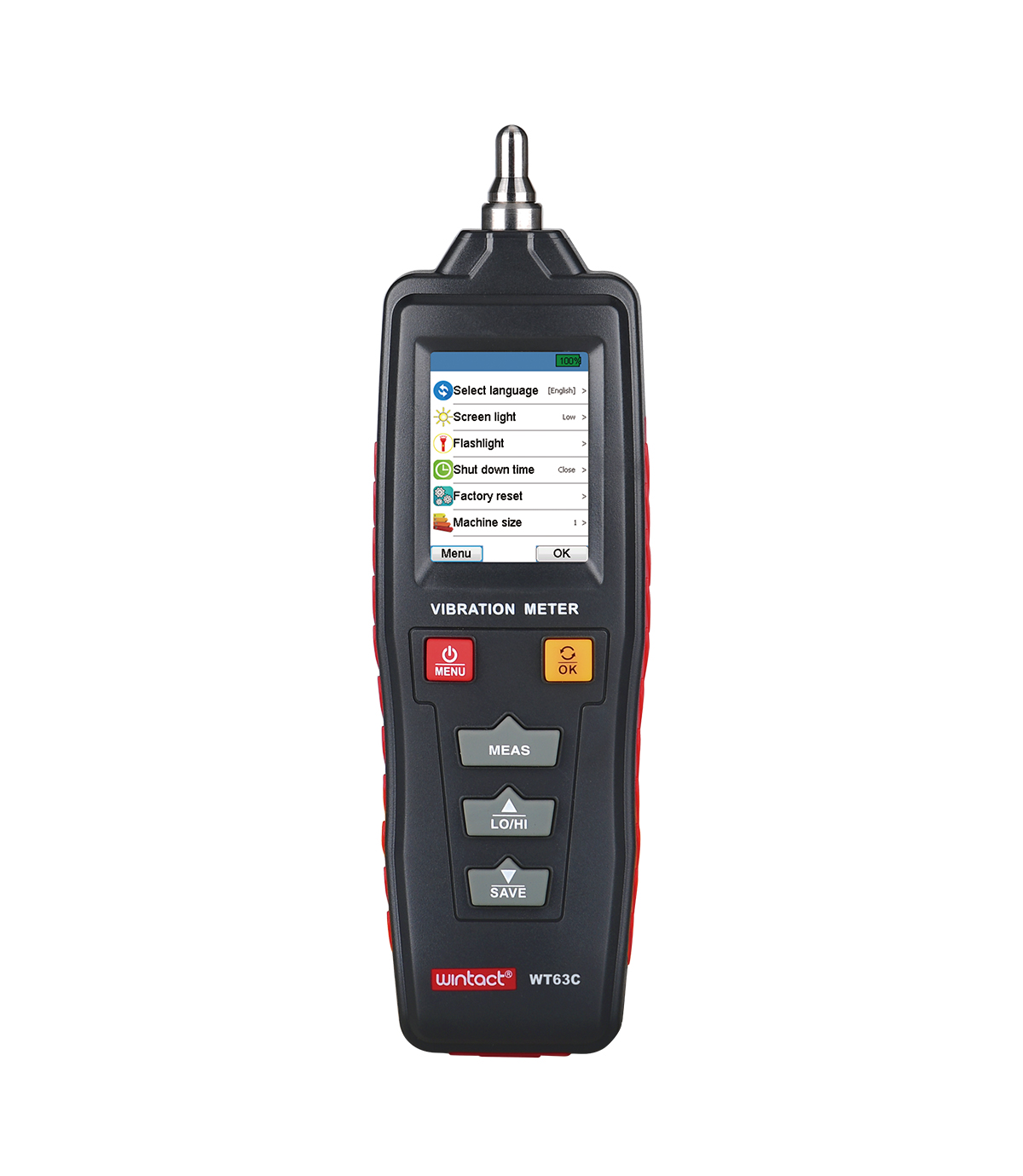

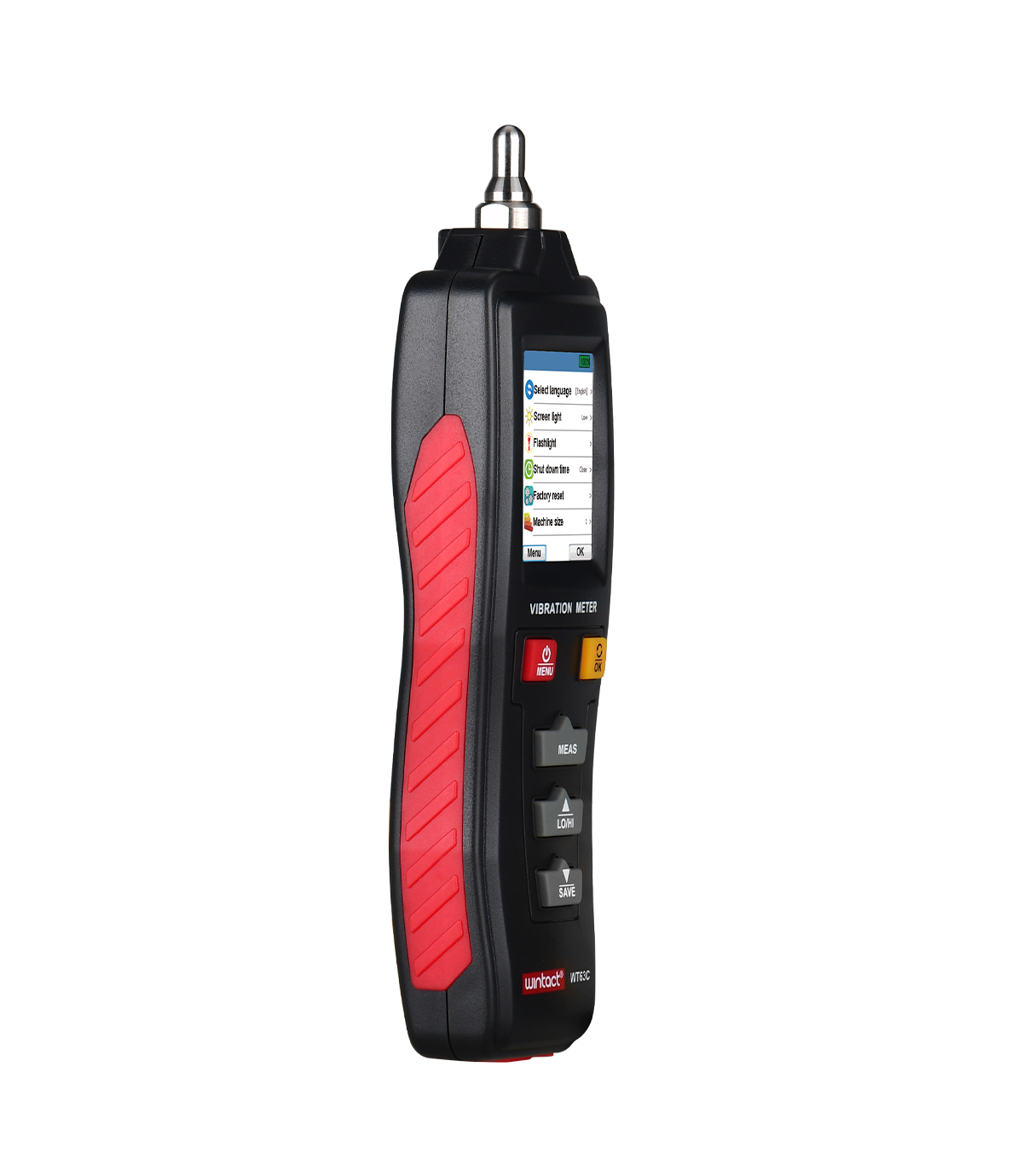

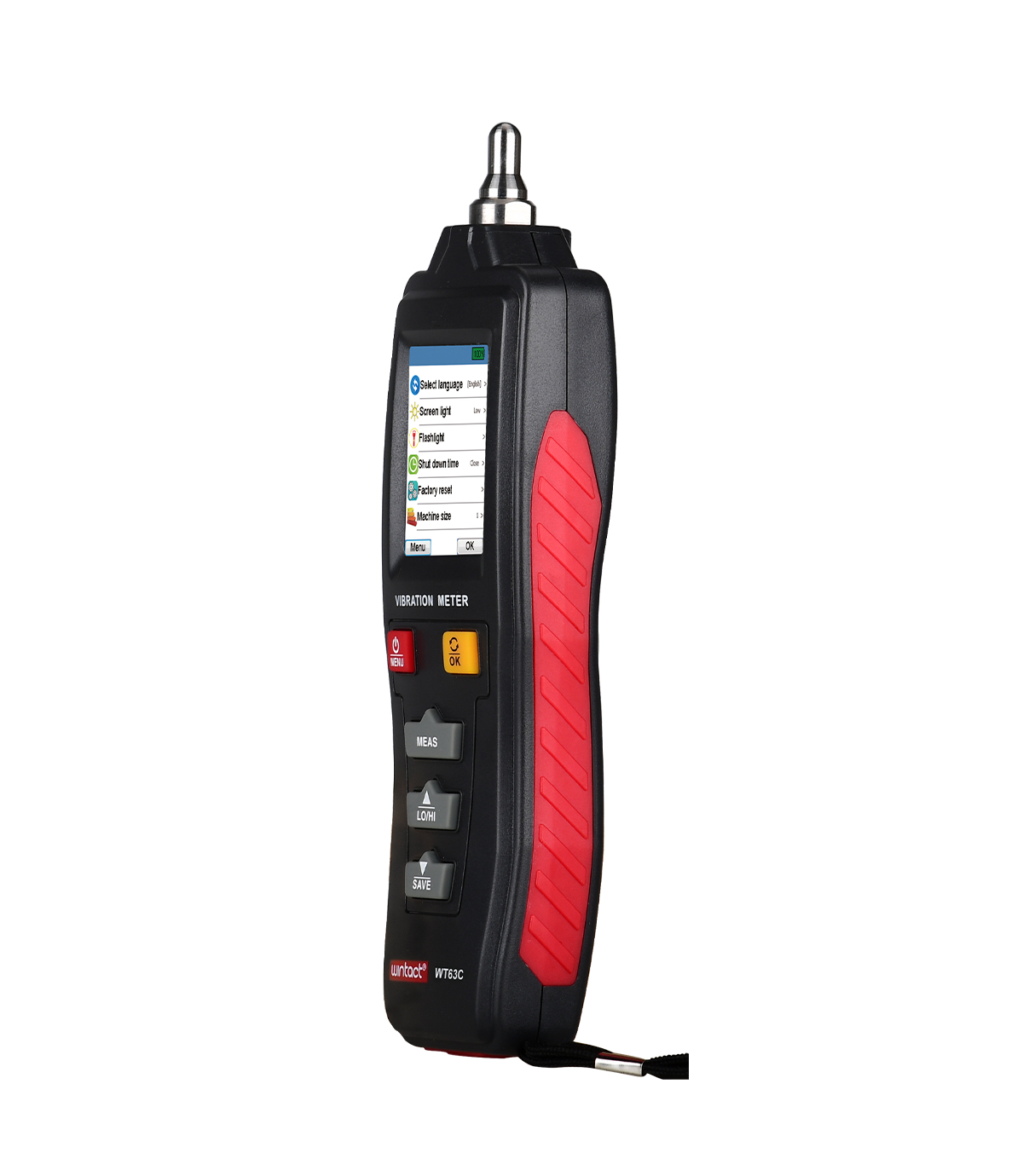

Máy đo độ rung Wintact WT63C
Model: WT63C
Hãng sản xuất: Wintact
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Thông số kỹ thuật:
Dải đo:
– Gia tốc: 0,1 đến 199,9m/s²
– Vận tốc: 0,1 đến 199,9 mm/giây
– Độ dịch chuyển: 0,001 đến 1,999mm
Độ chính xác: ±10%
Đo tần số:
– Gia tốc: Tần số cao: 1KHz đến 4KHz (HI), tần số thấp: 10Hz đến 1KHz
– Vận tốc: 10Hz đến 1KHz
– Độ dịch chuyển: 10Hz đến 1KHz
Màn hình: LCD màu
Tốc độ hiển thị dữ liệu: 1s
Lưu giữ liệu tối đa: 100 nhóm
Nguồn cấp: 2 pin AAA
Kích thước: 180x54x30mm
Trọng lượng: 250g
Máy đo độ rung Wintact WT63C
Vibration Meter WT63C
This product is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating and reciprocating machinery. It can measure vibration acceleration,velocity,displacement and frequency, and is widely used in fields like machinery manufacturing, electric metallurgy and general aerospace.
Technical parameters |
Technical indicators |
Vibration acquisition |
Piezoelectric ceramic accelerometer (shear type) |
Measurement range |
Acceleration:0.1~199.9m/s2 Velocity:0.1~199.9mm/s Displacement:0.001~1.999mm Frequency:0Hz~4KHz |
Measurement accuracy |
±10% |
Frequency range of acceleration measurement |
High frequency:1KHz~4KHz (HI) Low frequency:10Hz~1KHz ( LO) |
Frequency range of speed measurement |
10Hz~1KHz (LO) |
Frequency range of displacement measurement |
10Hz~1KHz (LO) |
Maximum groups of data storage |
500 pieces (5 groups * 100 pieces/group) |
Power supply |
1.5V AAA battery*2 |
Temperature range for operation |
0~40℃ |
Humidity range for operation |
30~90%RH |
Size |
180x54x30mm |
Weight |
>150g(with batteries) |
