Máy đo gió nhiệt độ độ ẩm và chênh áp Kanomax 6501

Model: 6501
Hãng sản xuất: KANOMAX
Xuất xứ:
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Máy đo gió nhiệt độ độ ẩm và chênh áp Kanomax 6501

Model: 6501
Hãng sản xuất: Kanomax
Bảo hành: 12 tháng
Ứng dụng:
- Dùng để Test và kiểm tra sự cân bằng trong đường ống thông gió của hệ thống HVAC, kiểm soát phòng thí nghiệm, kiểm tra các đặc tính của tủ hút, nghiên cứu về IAQ(Indoor Air Quality - Chất lượng không khí trong nhà) và Kiểm tra dòng khí trong môi trường công nghiệp
Thông số kỹ thuật:
- Đo tốc độ gió (Lựa chọn khi đặt hàng)
+ Dải đo: 10 tới 6,000 FPM (0.05 tới 30.0 m/s)
+ Độ chính xác: ±(2% giá trị đọc ± 0.0125) m/s
- Đo nhiệt độ (Lựa chọn khi đặt hàng)
+ Dải đo: -4 tới 158°F (-20 tới 70°C)
+ Độ chính xác: ± 1°F hoặc ± 0.5°C
- Đô độ ẩm tương đối (Lựa chọn khi đặt hàng)
+ 2 to 98%RH (Model 6531, 6533)
+ Độ chính xác: ± 2 %RH
- Đo chênh áp:
+ Dải đo: -5.00 tới +5.00 KPa
+ Độ chính xác: ± (3.0 % của giá trị đọc ± 0.01) KPa
- Cổng truyền thông:
+ Truyền thông số: USB
+ Truyền thông analog: DC 0 to 1 V (Phụ kiện tùy chọn)
- Khả năng lưu trữ dữ liệu: lên tới 20,000 kết quả đo.
- Khối lượng: 0.9 lbs (400 g)
- Nguồn cung cấp: 6 x AA pin hoặc AC Adapter (100 to 240 V)
Cung cấp báo gồm: Thân máy, HDSD, Hộp đựng, Cáp USB, Pin AA, Cáp điện cực 2m (Lưu ý lựa chọn mua thêm đầu đo theo yêu cầu sử dụng)

Máy đo gió nhiệt độ độ ẩm và chênh áp Kanomax 6501

CLIMOMASTER ANEMOMETER 6501 SERIES

THE CLIMOMASTER ANEMOMETER MODEL 6501 SERIES; WHY IT’S BECOMING THE FIRST CHOICE FOR MORE AND MORE HVAC, HEPA AND IAQ PROFESSIONALS

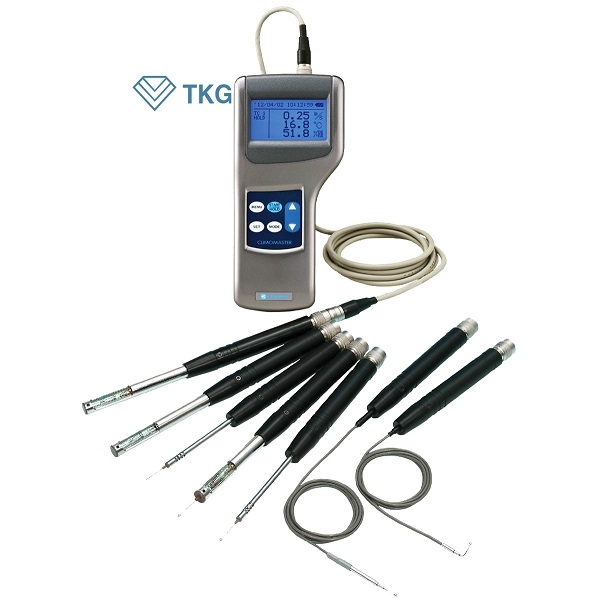

The Climomaster anemometer is a research grade hot-wire anemometer that promises level 2% m.v. accuracy, making it the most accurate hot-wire in the world. It offers a ton of flexibility and options. In fact, there are 8 different probes available for it: these probes are all interchangeable and can be used with a single main unit without any additional calibration.


The Climomaster Model 6501 probes can measure temperature and/or humidity along with air flow. Other probes are designed for use in turbulent or high-velocity airflows and some are miniaturized for use in really tight spaces like those encountered when checking the cooling profile of a circuit board.

The unit comes standard with 20,000 record storage capacity and advanced data logging capability. It can also be ordered with a pressure sensor and analog output if desired. Many additional accessories such as software, extension rods, hands-free case and special cable lengths are also available.  All of these advanced options and extremely well-crafted components have helped in making the Climomaster Model 6501 one of the top choices for some primary applications, including HVAC Testing, IAQ Investigations, Critical Environment Certification, HEPA Filter Performance Testing, Turbulent Air Testing, Manufacturing Process Controls, and more.

Special Note: We just upgraded this unit and the Anemomaster Professional with an automatic barometric pressure compensation feature. Now, all units come standard with this feature which helps maintain their excellent accuracy rating even in extreme altitudes.

Measurement Specifications
Differential Pressure
Range-5 to 5 kPa
Resolution0.01 kPa
Accuracy±3% of READING or ±0.01 kPa whichever is greater
General Specifications
Analog OutputDC 0 to 1 V
InterfaceUSB / Printer
DataloggingStores up to 20000 measurement data
Power Supply6 × AA Batteries or AC Adapter (AC 100 to 240 V , 50/60 Hz)
Weight0.9 lbs (400 g)
Operating Environment41 to 104°F (5 to 40°C) with no condensation
Storage Environment14 to 122°F (-10 to 50°C) with no condensation
StandardsCE-mark
Warranty2 year
What’s IncludedMeter, Operation manual, Carrying case, USB cable, AA batteries, 2m probe cable

6501-0E6501-CE
Differential Pressure
O
Analog Output
O
USB InterfaceOO
Printer InterfaceOO
PROBE PART #6531-2G6541-2G6561-2G6542-2G6533-2G6543-2G6551-2G6552-2G
Air Velocity Range (FPM)2 to 60002 to 60002 to 98402 to 60002 to 10002 to 10002 to 60002 to 6000
Airflow DirectivityUNIUNIUNIOmniOmniOmniOmniOmni
Probe TypeRodRodRodNeedleSphericalSphericalMiniatureMiniature
Air VelocityOOOOOOOO
TemperatureOOOOOO

Relative HumidityO


O
