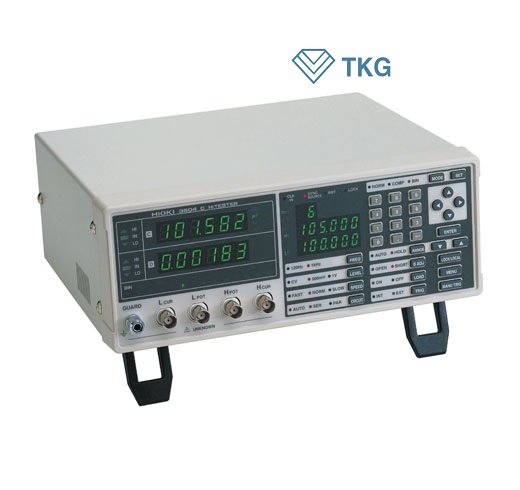

Máy đo LCR Hioki 3504-50 (120Hz, 1kHz, GP-IB, RS-232C)

Model: 3504-50
Hãng sản xuất: HIOKI
Xuất xứ: Japan
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: 3504-50
Hãng sản xuất: Hioki
Xuất sứ:Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
- Thông số đo: Cs, Cp , D
- Độ chính xác: C: ±0.09 % , D: ±0.0016
- Tần số thử: 120Hz, 1kHz
- Mức độ tín hiệu đo:
+ 500mV, 1V rms
+ Measurement range CV 100mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
+ Measurement range CV 500mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
+ Measurement range CV 1V: up to 70μF range (Source frequency 1kHz), up to 700μF range (Source frequency 120Hz)
- Điện trở đầu ra: 5Ω
- Hiển thị: LED (six digits, full scale count depends on measurement range)
- Thời gian đo: 2ms typical (1 kHz, FAST mode)
- Chức năng: BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C (all models standard)
- Nguồn: Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 110VA max.
- Kích thước: 260mm(10.24in)W × 100mm(3.94in)H × 220mm(8.66in)D
- Khối lượng: 3.8kg(134.0oz)
- Phụ kiện đi kèm: Power cord(1), Fuse(1).

LCR HiTESTER 3504

Dual-band 120Hz/1kHz Capacitance Meter for High Speed Inspection of Multi-Layer Ceramic Capacitors (MLCC) on Taping Machines

Basic specifications (Accuracy guaranteed for 6 months, Post-adjustment accuracy guaranteed for 6 months)

Measurement parameters C (capacitance), D (loss coefficient tan δ)
Measurement range C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999
Basic accuracy (Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
Measurement frequency 120 Hz, 1 kHz
Measurement signal level 100 mV (3504-60 only), 500 mV, 1 V rms
CV 100 mV Measurement range: up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)
CV 500 mV Measurement range : up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz)
CV 1V Measurement range : up to 70 μF range (Source frequency 1 kHz), up to 700 μF range (Source frequency 120 Hz)
Output impedance 5Ω (In open terminal voltage mode outside of the CV measurement range)
Display LED (six digits, full scale count depends on measurement range)
Measurement time 2 ms (Typ. value. Depends on measurement configuration settings)
Functions 4-terminal contact check function (3504-60 only)
BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C, GP-IB (3504-50, 3504-60)
Power supply Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz, 110 VA max.
Dimensions and mass 260 mm (10.24 in) W × 100 mm (3.94 in) H × 220 mm (8.66 in) D, 3.8 kg(134.0 oz)
Accessories Power cord ×1, Instruction manual ×1, Spare fuse ×1

Probe and Test fixtures

4-TERMINAL PROBE 9140

DC to 100 kHz, 1 m (3.28 ft) length, impedance characteristics of 75 Ω



TEST FIXTURE 9261

DC to 8 MHz, 1 m (3.28 ft) length, impedance characteristics of 75 Ω



TEST FIXTURE 9262

Direct connection type, DC to 8 MHz, measurable conductor diameter: ø0.3 (0.01 in) to 2 mm (0.08 in)



SMD TEST FIXTURE 9263

Direct connection type, DC to 8 MHz, Test sample dimensions:1 mm (0.04 in) to 10 mm (0.39 in)

SMD TEST FIXTURE 9677

Direct connection type, For measuring SMDs with electrodes on the side; DC to 120 MHz, test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)



SMD TEST FIXTURE 9699

Direct connection type, For measuring SMDs with electrodes on the bottom; DC to 120 MHz, test sample dimensions: 1.0 mm (0.04 in) to 4.0 mm (0.16 in) wide, max. 1.5 mm (0.06 in) high



CONTACT TIPS IM9901

To replace the tip on the L2001, regular size, bundled with the L2001



CONTACT TIPS IM9902

To replace the tip on the L2001, small size

PINCHER PROBE L2001

• DC〜8MHz • 50Ω • Tip electrode spacing: 0.3 (0.01 in) to 6 mm (0.24 in)

Learn more

PC communication

GP-IB CONNECTOR CABLE 9151-02

2 m (6.56 ft) length

Printer options

PRINTER 9442

For printing numerical values 112 mm (4.41 in) paper width, not CE marked



AC ADAPTER 9443-02

For the Printer 9442, EU type



CONNECTION CABLE 9444

9 pin - 9 pin straight, 1.5 m (4.92 ft) length



RECORDING PAPER 1196

For the Printer 9442, 112 mm (4.41 in) × 25 m (82.03 ft), 10 rolls/set

Bảo đảm chất lượng

Bảo đảm chất lượng

Sản phẩm bảo đảm chất lượng.
Hotline 24/7

Hotline 24/7

Hotline: 085 996 3888
Sản phẩm chính hãng

Sản phẩm chính hãng

Sản phẩm nhập khẩu chính hãng
