Model: 3504-60
Hãng sản xuất: Hioki
Xuất sứ:Japan
Bảo hành: 12 tháng
Thông số kỹ thuật:
- Thông số đo: Cs, Cp , D
- Độ chính xác: C: ±0.09 % , D: ±0.0016
- Tần số thử: 120Hz, 1kHz
- Mức độ tín hiệu đo:
+ 500mV, 1V rms
+ Measurement range CV 100mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
+ Measurement range CV 500mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
+ Measurement range CV 1V: up to 70μF range (Source frequency 1kHz), up to 700μF range (Source frequency 120Hz)
- Điện trở đầu ra: 5Ω
- Hiển thị: LED (six digits, full scale count depends on measurement range)
- Thời gian đo: 2ms typical (1 kHz, FAST mode)
- Chức năng: 4-terminal contact check function, BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C (all models standard)
- Nguồn: Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 110VA max.
- Kích thước: 260mm(10.24in)W × 100mm(3.94in)H × 220mm(8.66in)D
- Khối lượng: 3.8kg(134.0oz)
- Phụ kiện đi kèm: Power cord(1), Fuse(1).

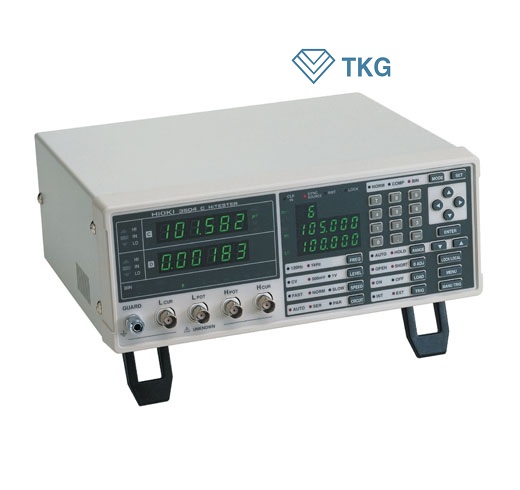

LCR HiTESTER 3504
Dual-band 120Hz/1kHz Capacitance Meter for High Speed Inspection of Multi-Layer Ceramic Capacitors (MLCC) on Taping Machines
Basic specifications (Accuracy guaranteed for 6 months, Post-adjustment accuracy guaranteed for 6 months)
| Measurement parameters | C (capacitance), D (loss coefficient tan δ) |
|---|---|
| Measurement range | C: 0.9400 pF to 20.0000 mF, D: 0.00001 to 1.99999 |
| Basic accuracy | (Typ.) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016 |
| Measurement frequency | 120 Hz, 1 kHz |
| Measurement signal level | 100 mV (3504-60 only), 500 mV, 1 V rms CV 100 mV Measurement range: up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz) CV 500 mV Measurement range : up to 170 μF range (Source frequency 1 kHz), up to 1.45 mF range (Source frequency 120 Hz) CV 1V Measurement range : up to 70 μF range (Source frequency 1 kHz), up to 700 μF range (Source frequency 120 Hz) |
| Output impedance | 5Ω (In open terminal voltage mode outside of the CV measurement range) |
| Display | LED (six digits, full scale count depends on measurement range) |
| Measurement time | 2 ms (Typ. value. Depends on measurement configuration settings) |
| Functions | 4-terminal contact check function (3504-60 only) BIN (measurement values can be classified by rank) (3504-50, 3504-60), Trigger-synchronous output, Setting configurations can be stored, Comparator, Averaging, Low-C reject (bad contact detection), Chatter detection, EXT. I/O, RS-232C, GP-IB (3504-50, 3504-60) |
| Power supply | Selectable from 100, 120, 220 or 240 V AC ±10 %, 50/60 Hz, 110 VA max. |
| Dimensions and mass | 260 mm (10.24 in) W × 100 mm (3.94 in) H × 220 mm (8.66 in) D, 3.8 kg(134.0 oz) |
| Accessories | Power cord ×1, Instruction manual ×1, Spare fuse ×1 |
Probe and Test fixtures
4-TERMINAL PROBE 9140
DC to 100 kHz, 1 m (3.28 ft) length, impedance characteristics of 75 Ω
TEST FIXTURE 9261
DC to 8 MHz, 1 m (3.28 ft) length, impedance characteristics of 75 Ω
TEST FIXTURE 9262
Direct connection type, DC to 8 MHz, measurable conductor diameter: ø0.3 (0.01 in) to 2 mm (0.08 in)
SMD TEST FIXTURE 9263
Direct connection type, DC to 8 MHz, Test sample dimensions:1 mm (0.04 in) to 10 mm (0.39 in)
SMD TEST FIXTURE 9677
Direct connection type, For measuring SMDs with electrodes on the side; DC to 120 MHz, test sample dimensions: 3.5 mm ±0.5 mm (0.14 in ±0.02 in)
SMD TEST FIXTURE 9699
Direct connection type, For measuring SMDs with electrodes on the bottom; DC to 120 MHz, test sample dimensions: 1.0 mm (0.04 in) to 4.0 mm (0.16 in) wide, max. 1.5 mm (0.06 in) high
CONTACT TIPS IM9901
To replace the tip on the L2001, regular size, bundled with the L2001
CONTACT TIPS IM9902
To replace the tip on the L2001, small size
PINCHER PROBE L2001
• DC〜8MHz • 50Ω • Tip electrode spacing: 0.3 (0.01 in) to 6 mm (0.24 in)
PC communication
GP-IB CONNECTOR CABLE 9151-02
2 m (6.56 ft) length
Printer options
PRINTER 9442
For printing numerical values 112 mm (4.41 in) paper width, not CE marked
AC ADAPTER 9443-02
For the Printer 9442, EU type
CONNECTION CABLE 9444
9 pin - 9 pin straight, 1.5 m (4.92 ft) length
RECORDING PAPER 1196
For the Printer 9442, 112 mm (4.41 in) × 25 m (82.03 ft), 10 rolls/set
