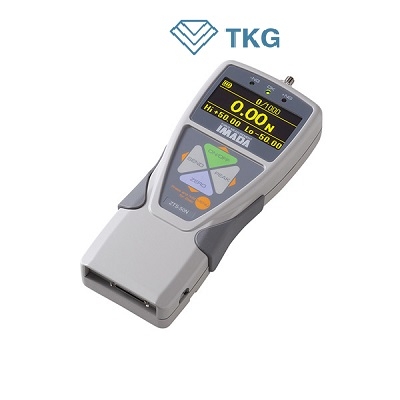

Máy đo lực điện tử IMADA ZTS-20N
Model: ZTS-20N
Hãng sản xuất: IMADA-JAPAN
Xuất xứ: Nhật Bản
Bảo hành: 12 tháng
Thông số kỹ thuật:
Giải đo [Max]: 20N
Độ phân giải: 0,01N
Đơn vị đo:N
Độ chính xác: +/-0.2%
Pin : 8 giờ hoạt động, 2 giờ sạc
Giao tiếp: RS232 ,USB
Nhiệt độ hoạt động: 0 – 40°C
Máy đo lực điện tử IMADA ZTS-20N Trọng lượng máy: 490 g
Kích thước: 191x75x34mm
Phụ kiện: Hộp đựng,hướng dẫn sử dụng,cáp USB,Adapter AC,đĩa CD
Máy đo lực điện tử IMADA ZTS-20N
| Model | ZTS | |
|---|---|---|
| Feature | Standard model with high performance and usability | |
| Accuracy | +/-0.2%F.S.+/-1digit | |
| Unit of measurement (*1) | N, kgf, lbf (*2) | |
| Display | 4-digit organic EL | |
| Display update | 16 times / sec. | |
| Sampling rate | 2000 data / sec at maximum | |
| Battery | 8 hours (2 hours charge) | |
| Safe overload rating | Approx.200%F.S. | |
| Operating environment | Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH | |
| Function | Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping,Time display, Setting lock | |
| Output | USB, RS232C, Mitutoyo digimatic (*3), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm | |
| Overload warning | Approx.110%F.S. (Warning message and alarm ) | |
| External connecting switch | SEND (a point of contact holding), Zero reset, Peak ON/OFF setting | |
| Weight | From 2N to 1000N model: Approx.490g (*4) | |
| Dimensions | Please refer to dimensions. | |
| Accessory | AC adapter, Inspection certificate, CD driver (including simple software for data logging), Attachments (The set of attachments varies according to range.), USB cable,Carrying case. | |
*1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model and international one.
*2 [N indication] The indication of 2N and 5N models is mN or N. The indication of 1000N,2500N and 5000N model is N or kN.
[kgf indication] The indication of 2N and 5N models is gf.
[lbf indication] The indication of 2N and 5N models is ozf.
*3 Not always available for Mitutoyo digimatic products.
*4 Weight is slightly different according to range.
| Model | Range | Display | Resolution | Thread |
|---|---|---|---|---|
| ZTS-2N | 2N (200gf) | 2.000N/2000mN (200.0gf) | 0.001N/1mN (0.1gf) | M6 |
| ZTS-5N | 5N (500gf) | 5.000N/5000mN (500.0gf) | 0.001N/1mN (0.1gf) | |
| ZTS-20N | 20N (2kgf) | 20.00N (2.000kgf) | 0.01N (0.001kgf) | |
| ZTS-50N | 50N (5kgf) | 50.00N (5.000kgf) | 0.01N (0.001kgf) | |
| ZTS-100N | 100N (10kgf) | 100.0N (10.00kgf) | 0.1N (0.01kgf) | |
| ZTS-200N | 200N (20kgf) | 200.0N (20.00kgf) | 0.1N (0.01kgf) | |
| ZTS-500N | 500N (50kgf) | 500.0N (50.00kgf) | 0.1N (0.01kgf) | |
| ZTS-1000N | 1000N (100kgf) | 1000N/1.000kN (100.0kgf) | 1N/0.001kN (0.1kgf) |
