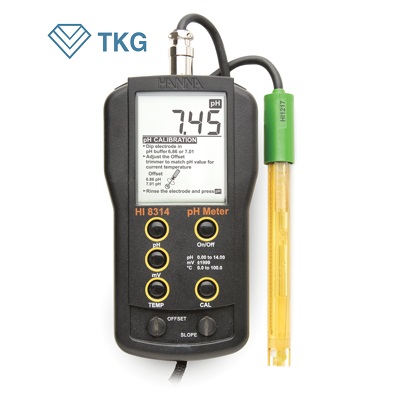

Máy đo pH/ORP/Nhiệt độ Hanna HI8314-1 (0.00 đến 14.00 pH)

HI8314-1

Analog pH/mV/°C Meter with HI1217-1 Electrode

Details

Manual calibration is performed at one or two points by adjusting the trimmers on the front panel. Capable of measuring pH/mV and °C, this meter are great for field work, providing one meter for multiple uses. This instrument is ideal for applications that require a custom calibration point. Manual calibration can be extremely useful in order to achieve better accuracy.

This meter can also be used for ORP measurements with the optional probes below: HI3618D or HI4619D

pH

pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy (@25ºC/77ºF)	±0.01 pH
pH Calibration	manual, two-point, via trimmers
pH Temperature Compensation	automatic, 0 to 70°C (32 to 158 °F)
pH Input impedence	1012 Ohm

mV

mV Range	±1999 mV
mV Resolution	1 mV
mV Accuracy (@25ºC/77ºF)	±1 mV

Meter Temperature

Temperature Range	0.0 to 100.0°C
Temperature Resolution	0.1°C
Temperature Accuracy	±0.4°C

General Meter

pH Electrode	HI1217-1 PEI body, preamplified pH electrode with internal temperature sensor, DIN connector and 1 m cable (included)
Slope/Offset Calibration	from 80 to 110%/±1 pH
Battery Type / Life	9V / approximately 100 hours of continuous use
Environment	0 to 50°C (32 to 122°F); RH max 100%
Dimensions	145 x 80 x 36 mm (5.7 x 3.1 x 1.4’’)
Weight	230 g (8.1 oz.)
Ordering Information	HI8314 is supplied with HI 1217D pH electrode, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachets (2), calibration screwdriver, battery, protective case and instructions.

Hướng Dẫn Sử Dụng nhấn tải về HI8314

Catalog nhấn tải về HI8314
