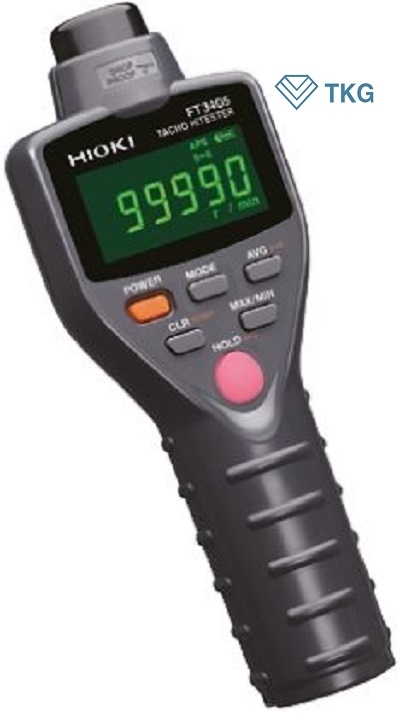

TACHO HiTESTER FT3405, FT3406

Wide Range Industrial-Grade Digital Tachometers for Non-Contact and Contact Rotation and Cycle Measurements

Basic specifications (Accuracy guaranteed for 1 year)

	FT3405	FT3406
Measurement method	Non-contact: Using red visible-spectrum light and reflective tape Contact: Using optional Contact Adapter
Measurement ranges Non-contact, AVG=ON	Rotation (r/min) : (30.00 to 199.99) to (20000 to 99990), Rotation (r/s) : (0.5000 to 1.9999) to (200.0 to 1600.0), Period (ms) : (0.6000 to 1.9999) to (200.0 to 1999.9), Count : 0 to 999999
Measurement ranges Contact, AVG=ON	Rotation (r/min) : (15.00 to 199.99) to (2000 to 19999), Rotation (r/s) : (0.2500 to 1.9999) to (200.0 to 333.00), Period (ms) : (3.000 to 19.999) to (200.0 to 3999.9), Count : 0 to 999999
Measurement ranges Contact, AVG=ON	Straight-line speed (meter/min) : (1.500 to 19.999) to (200.0 to 1999.9) Straight-line speed (meter/s) : (0.0250 to 1.9999) to (20.00 to 33.30) *Using with the Peripheral ring 9212 (option)
Accuracy	Up to 9999 counts: ±1 dgt. (AVG=ON), ±10 dgt. (AVG=OFF) 10000 counts or more: ±2 dgt. (AVG=ON), ±20 dgt. (AVG=OFF) 20000 counts or more (r/min mode only) : ±20 dgt. (AVG=ON), ±100 dgt. (AVG=OFF) Straight-line speed measurement only: ±0.5 % rdg. add to above-mentioned accuracy
Non-contact measuring detection range	50 mm (1.97 inch) to 500 mm (19.7 inch)
Display refresh rate	Approx. 0.5 to 10 times/s
Functions (FT3406 only)	N/A	[Analog output] 0 to 1 V f.s., Accuracy: ±2 % f.s., Output resistance: 1 kΩ [Pulse output] 0 to 3.3 V, Output resistance: 1 kΩ Can use with the AC adapter for power supply
Dust and water proof	IP50 (EN60529)	IP50 (EN60529)
Common functions	MAX/MIN display, Display hold, Average, Auto power save, Buzzer sound, Drop-proof (1 m distance onto concrete surface)
Power supply	LR6 (AA) alkaline battery ×2, Max. rated consumption 0.5 VA
Operating time	Continuous use 30 hr	Continuous use 25 hr
AC power supply	N/A	AC adapter Z1004
Dimensions and mass	71 mm (2.80 in)W × 186 mm (7.32 in)H × 38 mm (1.50 in)D, 230 g (8.1 oz) (including batteries)
Accessories	Instruction manual ×1, Reflective tape 9211 ×1 sheet (30 pieces/ 12 mm (0.47 in) × 12 mm (0.47 in) per piece), Carrying case C0202 ×1, LR6 (AA) alkaline battery ×2	Instruction manual ×1, Reflective tape 9211 ×1 sheet (30 pieces/ 12 mm (0.47 in) × 12 mm (0.47 in) per piece), Carrying case C0202 ×1, LR6 (AA) alkaline battery ×2, *FT3406 only: Output cord L9094 ×1

*Carrying case C0202 is bundled

METAL CONTACT TIP 9032

RUBBER CONTACT TIP 9033

PERIPHERAL RING 9212

CONTACT ADAPTER Z5003

(includes 9212 ×1, 9033 ×2, 9032 ×1), set model

CARRYING CASE C0202
