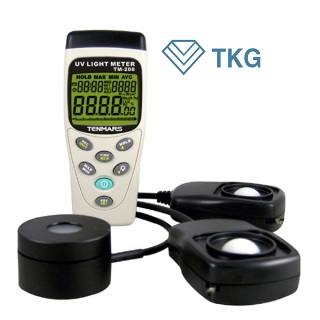

TM-208 _ Solar, UVA & Light Meter (3 in 1)
- 3 3/4 digits backlit LCD with max. reading 3999.
- 3 in 1 design, UV Power, Solar Power and Illumination(light) measurement.
- USB datalogging capacity: 45,000 records.
- Real time clock with calendar.
- Rel (relative) function / Zero Adjustment
M-208 is a 3 in 1 Meter, it measure the following sources:
- Highly reliable direct reading Instrument designed expressly for measuring light intensity at
- the wafer plane of mask aligners.
- UV curing light sources, and any other UV light source.
Solar Power Features:
- The accuracy is +/-3% at 1,000 Watts/m2 .
- Solar power research.
- Physics and optical laboratories.
- Just point the calibrated PV cell at the sun and read the irradiance in Watts/m2 or Btu/ft2.h.
- It's great for those who test PV modules or arrays in the field.
- According to JISC1609: 1993 and CNS 5119 general A class spec.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Silicon photodiode and filter. Cosine angular corrected.T
his model is very useful in the warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, video, parking garages, museums, art galleries, stadiums, building security and so on.
