Máy ghi nhiệt độ Testo 176 T3 ( -195 đến +1000°C, 4 kênh)

Model: 176 T3
Hãng sản xuất: TesTo
Xuất xứ: China
Bảo hành: 12 tháng
13.620.000₫
* Giá sản phẩm chưa bao gồm VAT
Tình trạng: Còn hàng
Điện thoại: 0976595968

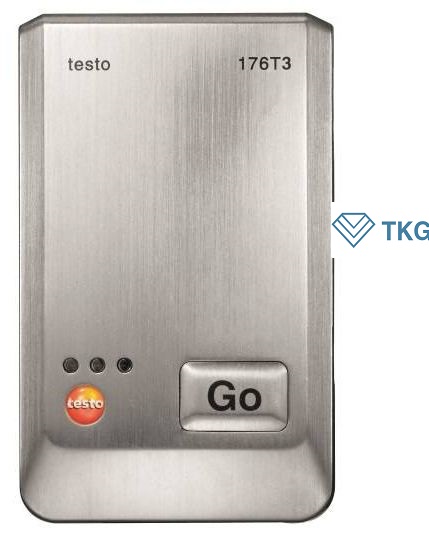

Máy ghi nhiệt độ Testo 176 T3

Model: 176 T3
Mã hàng: 0572 1763
Hãng sản xuất: TesTo
Xuất xứ: China
Bảo hành: 12 tháng
Tính năng Máy ghi nhiệt độ Testo 176 T3:
- Máy ghi nhiệt độ Testo 176 T3 là thiết bị lý tưởng để theo dõi nhiệt độ trong quá trình sản xuất, nhất là sử dụng trong các ngành công nghiệp nhờ vỏ kim loại bền vững. Với đầu cắm cho bốn cảm biến TC, nó có thể đo lên đến bốn điểm song song.
Thông số kỹ thuật Máy ghi nhiệt độ Testo 176 T3:
Cảm biến đo nhiệt Type K:
- Dải đo: -195 đến +1000°C
- Độ chính xác:
±1% giá trị đo (-195 đến -100,1°C) ±1 chữ số
±0,3°C (-100 đến +70°C) ±1 chữ số
±0,5% giá trị đo (+70,1 đến +1000°C) ±1 chữ số
- Độ phân giải: 0,1° C
Cảm biến đo nhiệt Type T (Cu-CuNi):
- Dải đo: -200 đến +400°C
- Độ chính xác:
±1 % giá trị đo (-200 đến -100,1°C) ±1 chữ số
±0,3°C (-100 đến +70°C) ±1 chứ số
±0,5 % giá trị đo (+70,1 đến +400°C) ±1 chữ số
- Độ phân giải: 0,1° C
Cảm biến đo nhiệt Type J:
- Dải đo: -100 đến +750 °C
- Độ chính xác:
±0,3°C (-100 đến +70°C) ±1 chữ số
±0,5 % giá trị đo (+70,1 đến +750°C) ±1 chữ số
- Độ phân giải: 0,1° C
Số kênh: 4 kênh ngoài
Cấp bảo vệ: IP65
Nhiệt độ hoạt động: -20 đến +70°C
Bộ nhớ: 2.000.000 giá trị đo
Tốc độ lấy mẫu: 1 giây - 24 giờ
Loại Pin: 1 x Lithium (TL-5903)
Máy ghi nhiệt độ Testo 176 T3 Tuổi thọ Pin: 8 năm (tại tốc độ ghi 15 phút/lần, +25°C)
Máy ghi nhiệt độ Testo 176 T3Kích thước: 103 x 63 x 33 mm
Máy ghi nhiệt độ Testo 176 T3 Trọng lượng: 430g
Máy ghi nhiệt độ Testo 176 T3 Cung cấp bao gồm: Máy chính, pin, HDSD, giá treo tường, giấy test xuất xưởng của Testo (Đức)
Lưu ý: Mua thêm đầu đo theo nhu cầu

testo 176 T3 - Temperature data logger

Order-Nr.  0572 1763

  • Ideal for long-term measurements: memory for up to 2 million readings, up to 8 years' battery life

  • Industrial standard thanks to robust metal housing and protection class IP 65

  • 4 inputs for optional thermocouple probes (temperature probes TC Type K, Type T, Type J)

  • Three software versions are available for data analysis on the PC, basic software is free to download

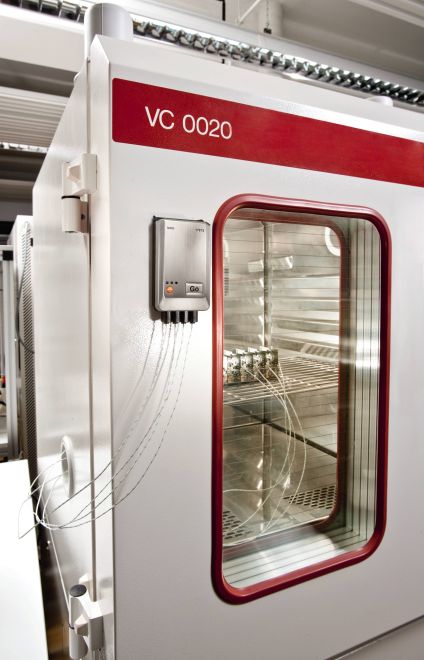

The testo 176 T3 temperature data logger is ideal for monitoring temperature values in production processes. Its robust metal housing makes it ideal for use in the industrial sector. With inputs for four thermocouple probes, it can measure at up to four points in parallel.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-200 to +1000 °C

Accuracy

±1 % of mv (-200 to -100.1 °C) ±1 Digit

±0.3 °C (-100 to +70 °C) ±1 Digit

±0.5 % of mv (+70.1 to +1000 °C) ±1 Digit

Resolution

0.1 °C

Temperature - TC Type T (Cu-CuNi)

Measuring range

-200 to +400 °C

Accuracy

±1 % of mv (-200 to -100.1 °C) ±1 Digit

±0.3 °C (-100 to +70 °C) ±1 Digit

±0.5 % of mv (+70.1 to +400 °C) ±1 Digit

Resolution

0.1 °C

Temperature - TC Type J (Fe-CuNi)

Measuring range

-100 to +750 °C

Accuracy

±0.3 °C (-100 to +70 °C) ±1 Digit

±0.5 % of mv (+70.1 to +750 °C) ±1 Digit

Resolution

0.1 °C

General technical data

Weight

430 g

Dimensions

103 x 63 x 33 mm

Operating temperature

-20 to +70 °C

Product-/housing material

Plastic

Protection class

IP65

Channels

4 external

Connectable probes

4 x thermocouple (type T, K and J)

Product colour

silver

Standards

EU-guideline 2014/30/EU; 2011/65/EU

Measuring rate

1 s to 24 h; 2 s to 24 h (online measurement)

Battery type

1 x Lithium (TL-5903)

Battery life

8 years at 15 min. meas. rate, +25 °C

Interface

mini usb, SD card slot

Memory

2,000,000 measuring values

Storage temperature

-40 to +85 °C

      Air probes


      Cross-Seller Robuster Luftfühler, TE Typ K

      Robust air temperature probe (TC type K) – measuring range: -60 to +400 °C

      Order Number: 0602 1793

      Details


      Cross-Seller Robust, affordable air probe, T/C Type T

      Robust air probe (TC Type T) - measuring range: -50 to +350°C

      Order Number: 0603 1793

      Details

      Food probes


      Cross-Seller Wasserdichter Lebensmittelfühler aus Edelstahl (IP65)

      Waterproof stainless steel food probe (TC type K) - measuring range: -60 to +400°C

      Order Number: 0602 2292

      Details


      Cross-Seller 0603-0646

      Flexible oven probe (TC type T) – measuring range -50 to +250 °C

      Order Number: 0603 0646

      Details


      Cross-Seller 0603-2192

      Stainless steel food probe (TC type T) with PUR cable - measuring range: -50 to +350°C

      Order Number: 0603 2192

      Details


      Cross-Seller Robust food penetration probe with special handle

      Robust food penetration probe (TC type T) – measuring range -50 to +350 °C

      Order Number: 0603 2492

      Details


      Cross-Seller Frozen food probe, corkscrew design

      Frozen goods probe (TC type T) for screw-in use without pre-drilling – measuring range -50 to +350°C

      Order Number: 0603 3292

      Details


      Cross-Seller 0603-3392

      Stainless steel food probe (TC type T) with FEP cable - measuring range: -50 to +350°C

      Order Number: 0603 3392

      Details


      Cross-Seller 0628-0023

      Measuring tip with TC connector type T - for temperature measurement in incoming goods

      Order Number: 0628 0023

      Details


      Cross-Seller 0628-0027

      Waterproof, superfast needle probe (TC type T) - measuring range: -50 to +250°C

      Order Number: 0628 0027

      Details


      Cross-Seller 0628-0030

      Superfast needle probe (TC type T) - measuring range: -50 to +250°C

      Order Number: 0628 0030

      Details


      Cross-Seller Wasserdichter Tauch-/Einstechfühler mit Metallschutzschlauch

      Waterproof, robust immersion/penetration probe (TC type K) - measuring range: -50 to +230°C

      Order Number: 0628 1292

      Details

      Surface probes


      Cross-Seller Spare meas. head for pipe wrap probe, TC Type K

      Spare measuring head for pipe wrap probes (TC type K) - Measuring range: -60 to +130°C

      Order Number: 0602 0092

      Details


      Cross-Seller Fast-reaction paddle surface probe

      Fast-reaction paddle surface probe (TC type K) - Measuring range: - 0 to +300°C

      Order Number: 0602 0193

      Details


      Cross-Seller Fast-action surface probe with sprung thermocouple strip

      Fast-action surface probe (TC type K) – measuring range -60 to +300 °C, short-term up to +500 °C

      Order Number: 0602 0393

      Details


      Cross-Seller Efficient, waterproof surface probe with small measurement head

      Waterproof surface temperature probe with a small measuring head (TC type K) – measuring range: -60 °C to +1000 °C

      Order Number: 0602 0693

      Details


      Cross-Seller Fast-action surface probe with sprung thermocouple strip

      Fast-action, angled surface temperature probe (TC type K) for flat and uneven surfaces – measuring range: -60 to +300 °C

      Order Number: 0602 0993

      Details


      Cross-Seller Waterproof surface probe with widened measurement tip

      Waterproof surface temperature probe with widened measuring tip (TC type K) for flat surfaces – measuring range -60 to +400 °C

      Order Number: 0602 1993

      Details


      Cross-Seller Flat head surface probe with telescopic handle max. 680 mm

      Surface temperature probe (TC Type K) with telescope

      Order Number: 0602 2394

      Details


      Cross-Seller Pipe wrap probe for pipe diameter 5 to 65 mm

      Temperature probe (TC type K) with clamping bracket for measurements on pipes with Ø 5-65 mm – Measuring range -60 to +130°C, briefly up to +280°C

      Order Number: 0602 4592

      Details


      Cross-Seller Clamp probe for measurements on pipes

      Clamp probe (TC type K) for temperature measurements on pipes with Ø 15-25 mm – Measuring range -50 to +100°C, briefly up to +130°C

      Order Number: 0602 4692

      Details


      Cross-Seller Magnetic probe (TC type K) - for surface temperatures

      Surface temperature probe with magnet (TC type K), adhesive power 20 N – Measuring range -50 to +170°C

      Order Number: 0602 4792

      Details


      Cross-Seller Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten

      Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C

      Order Number: 0602 4892

      Details


      Cross-Seller Waterproof surface probe with widened measurement tip

      Waterproof surface probe (TC type T) with wider measuring tip - measuring range: -50 to +350°C

      Order Number: 0603 1993

      Details


      Cross-Seller Pipe wrap probe with velcro strip

      Temperature probe with Velcro (TC Type K)

      Order Number: 0628 0020

      Details

      Thermocouples


      Cross-Seller Thermocouple with TC adapter, flexible, 800 mm long

      Flexible thermoelectric couple (TC type K, glass fibre) – Measuring range: -50 to +400°C

      Order Number: 0602 0644

      Details


      Cross-Seller Thermocouple with TC adapter, flexible, length 1500 mm

      Flexible thermoelectric couple (TC type K, glass fibre) – measuring range -50 to +400°C

      Order Number: 0602 0645

      Details


      Cross-Seller Thermocouple with TC adapter, flexible, 1500 mm long, PTFE

      Flexible thermoelectric couple (TC type K, PTFE) – measuring range -50 to +250°C

      Order Number: 0602 0646

      Details


      Cross-Seller 0628 7533

      Temperature probe with stainless steel sleeve (TC Type K)

      Order Number: 0628 7533

      Details

      immersion/ penetration probes


      Cross-Seller Flexible, low-mass immersion measurement tip

      Exceptionally fast temperature probe (TC Type K)

      Order Number: 0602 0493

      Details


      Cross-Seller Efficient and fast-action immersion probe, waterproof

      Flexible, fast-action immersion probe (TC type K) – measuring range: -60 to +1000 °C

      Order Number: 0602 0593

      Details


      Cross-Seller Waterproof immersion/penetration probe, TC Type K

      Waterproof immersion/penetration probe (TC type K) – measuring range -60 to +400 °C

      Order Number: 0602 1293

      Details


      Cross-Seller Fast-action, waterproof immersion/penetration probe

      Fast-action immersion/penetration probe (TC type K) – measuring range: -60 to +800 °C

      Order Number: 0602 2693

      Details


      Cross-Seller Immersion measurement tip, flexible, for measurements in air

      Flexible immersion measuring tip (TC type K) - Measuring range: -200 to +1300°C

      Order Number: 0602 5693

      Details


      Cross-Seller Tauch-Messspitze, biegsam, TE Typ K

      Immersion measuring tip with TC plug type K - for fast temperature measurements

      Order Number: 0602 5792

      Details


      Cross-Seller Immersion tip, flexible, TC Type K

      Flexible immersion measuring tip (TC type K, class 3) - measuring range -200 to +40°C

      Order Number: 0602 5793

      Details


      Cross-Seller Waterproof standard immersion/penetration probe,

      Waterproof standard immersion/penetration probe (TC type T) – measuring range -50 to +350 °C

      Order Number: 0603 1293

      Details
