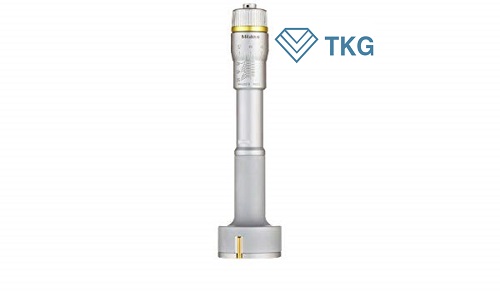

Panme đo trong cơ khí Mitutoyo 368-163
Model: 368-163
Hãng sản xuất: Mitutoyo - Nhật bản
Xuất xứ: Japan
Bảo hành: 12 tháng
Thông số kỹ thuật Panme đo trong cơ khí Mitutoyo 368-163:
Dải đo: 10~12mm
Độ chia: 0.001mm
Cấp chính xác: ±2µm
| Order No | Model | Image | Range | Head Assy Order No. | Accuracy | Remarks |
| 368-001 | - |  | 2-2.5mm | - | 2µm | - |
| 368-002 | - | - | 2.5-3mm | - | 2µm | - |
| 368-003 | - | - | 3-4mm | - | 2µm | - |
| 368-004 | - | - | 4-5mm | - | 2µm | - |
| 368-005 | - | - | 5-6mm | - | 2µm | - |
| 368-161 | HT-8R | - | 6-8mm | 04AZB136 | 2µm | - |
| 368-162 | HT-10R | - | 8-10mm | 04AZB137 | 2µm | - |
| 368-163 | HT-12R | - | 10-12mm | 04AZB138 | 2µm | - |
| 368-164 | HT-16R | - | 12-16mm | 04AZA719 | 2µm | with titanium coated contact points |
| 368-165 | HT-20R | - | 16-20mm | 04AZA720 | 2µm | with titanium coated contact points |
| 368-166 | HT-25R | - | 20-25mm | 04AZA728 | 3µm | with titanium coated contact points |
| 368-167 | HT-30R | - | 25-30mm | 04AZA729 | 3µm | with titanium coated contact points |
| 368-168 | HT-40R |  | 30-40mm | 04AZA737 | 3µm | with titanium coated contact points |
| 368-169 | HT-50R | - | 40-50mm | 04AZA738 | 3µm | with titanium coated contact points |
| 368-170 | HT-63R | - | 50-63mm | 04AZA750 | 3µm | with titanium coated contact points |
| 368-171 | HT-75R | - | 62-75mm | 04AZA751 | 3µm | with titanium coated contact points |
| 368-172 | HT-88R | - | 75-88mm | 04AZA752 | 3µm | with titanium coated contact points |
| 368-173 | HT-100R | - | 87-100mm | 04AZA753 | 3µm | with titanium coated contact points |
| 368-174 | HT-125R |  | 100-125mm | 04AZA775 | 5µm | with titanium coated contact points |
| 368-175 | HT-150R | - | 125-150mm | 04AZA776 | 5µm | with titanium coated contact points |
| 368-176 | HT-175R | - | 150-175mm | 04AZA777 | 5µm | with titanium coated contact points |
| 368-177 | HT-200R | - | 175-200mm | 04AZA778 | 5µm | with titanium coated contact points |
| 368-178 | HT-225R | - | 200-225mm | 04AZA779 | 5µm | with titanium coated contact points |
| 368-179 | HT-250R | - | 225-250mm | 04AZA780 | 5µm | with titanium coated contact points |
| 368-180 | HT-275R | - | 250-275mm | 04AZA781 | 5µm | with titanium coated contact points |
| 368-181 | HT-300R | - | 275-300mm | 04AZA782 | 5µm | with titanium coated contact points |
