Model: 6018
Hãng sản xuất: KYORITSU-JAPAN
Xuất xứ: JAPAN
Bảo hành: 12 tháng
Thông số kỹ thuật:
+ Chỉ thị kim
+ Đo thông mạch, đo mạch vòng, đo điện trở đất...
+ Phạm vi đo: 250V/500V/1000V ;50M/100M/2000 MΩ

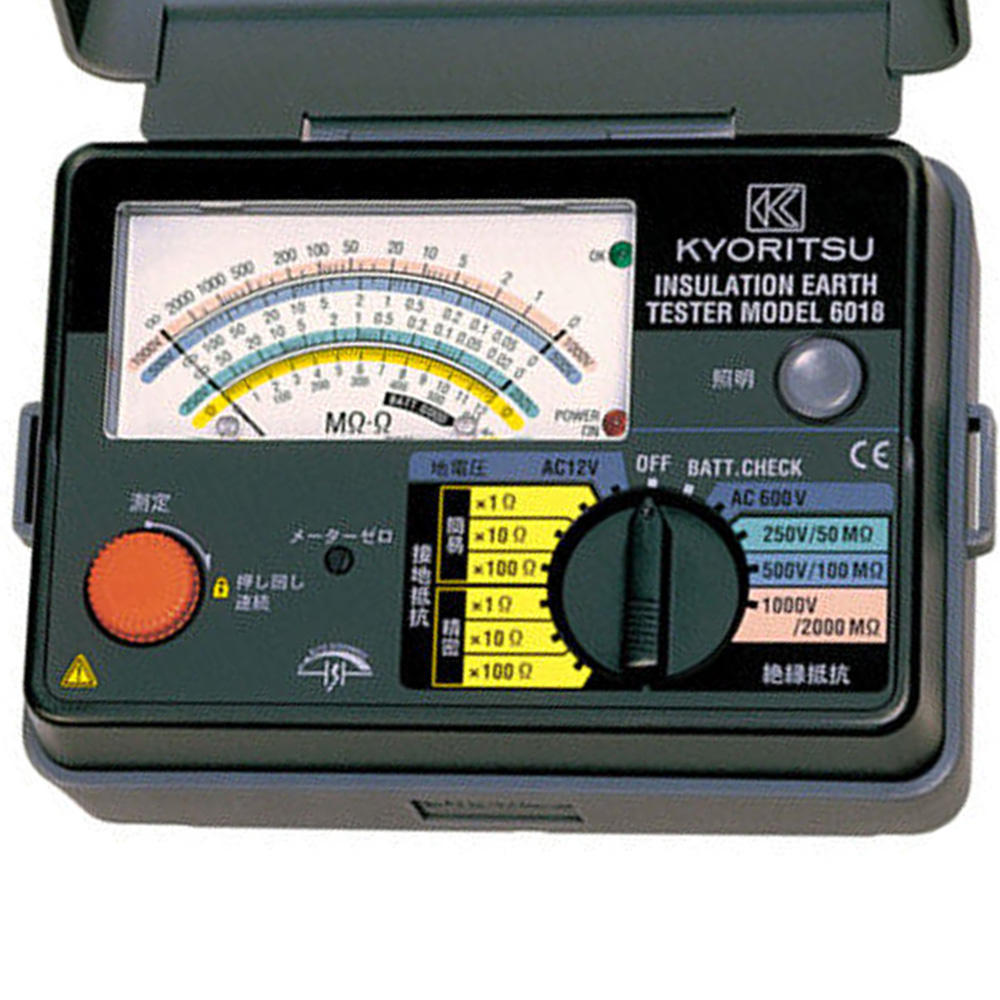

MODEL 6018
• Designed to meet IEC 61010-1 CAT III 600V
• Test leads with remote control switch.
(For insulation&Simplified Earth Test)
• Back light function.
• Color coded scales and range switch position for easy reading.
• Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
• Can be hung around the neck for both hand’s operation.
| Insulation Testing | |
|---|---|
| Test Voltage | 250V/50MΩ 500V/100MΩ 1000V/2000MΩ |
| Accuracy | ±5%rdg |
| Earth Resistance | |
| Simplified Precision measurement |
12Ω/120Ω/1200Ω |
| Accuracy | ±3% of full scale value |
| AC Voltage | |
| 0-600V AC | ±3% of full scale value |
| Earth Voltage | |
| 0-60V AC | ±3% of full scale value |
| Safety Standard | IEC 61010-1 CAT III 600V Pollution Degree 2 IEC 61010-2-031 IEC 61557 |
|---|---|
| Power source | LR6 (1.5V) × 8 |
| Dimensions | 130(L) × 183(W) × 100(D)mm |
| Weight | 1000g approx. |
| Included Accessories | 7103A (Test leads with remote control switch), 7131B (Safety crocodile clip [black]), 7161A (Flat test prod [black]) 8017 (Extension prod), 9092 (Cord case), 9121 (Shoulder strap), Battery LR6 (1.5V) × 8, Instruction Manual |
| Optional Accessories | 7100A (Precision measurement Cord Set) 7115(Extension prove) 8016(Hook type prod) |
Accessories/Optional Accessories /Related Products
