Thiết bị đo đa năng Kyoritsu 6201A
Model: 6201A
Hãng sản xuất: KYORITSU-JAPAN
Xuất xứ: JAPAN
Bảo hành: 12 tháng
Thông số kỹ thuật:
Dòng kháng phạm vi 20Ω:
- Khoảng đo: 0 – 15.00Ω
- Độ phân giải: 10mΩ
- Điện áp mở mạch : < AC 12V
- Dòng đo: 10A AC
- Độ chính xác: ±3%rdg±5dgt
Dòng kháng phạm vi 200MΩ:
- Phạm vi: 250V/20MΩ / 500V/20MΩ
- Khoảng đo: 0 – 19.99Ω
- Độ phân giải: 10kΩ
- Điện áp đầu ra: 250V DC (+20%/-10%) 1MΩ; 500V DC (+20%/-10%) 1MΩ
- Dòng ngắn mạch : 2.5mA DC or less
- Độ chính xác: ±2%rdg±3dgt.
Thông số cơ bản:
- Điện áp cung cấp: 240V±10%
- Tần số: 50Hz±1%
- Kích thước: 185 (L) × 167 (W) × 89 (D) mm, 1.2kg
Phụ kiện: 7123; 7129A; 7161A; 7140; 9147; 9121; hướng dẫn sử dụng
Chọn mua thêm: 7121B

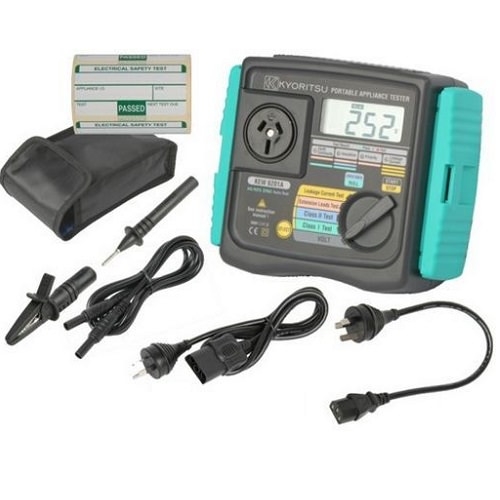

Thiết bị đo đa năng Kyoritsu 6201A
Portable Appliance Testers
KEW 6201A
The KEW 6201A is a portable appliance tester, performing four functions to ensure the Safety of ClassI and ClassII appliances. And also can measure the mains voltage.
Readings are displayed on a large liquid crystal display (LCD) below which are four LEDs which unambiguously display a pass or fail indication for threshold values dictated by AS/NZS 3760.
This instrument is suitable for performing tests as required by the following standards.
AS/NZS 3760 In-service safety inspection and testing of electrical equipment.
Test Function
| Function | Tests of contents |
|---|---|
| Test ⅠClass | Protective conductor resistance Insulation (250V or 500V) |
| Test ⅠSELECT Switch + Class | Protective conductor resistance Leakage Current test |
| TestⅡClass | Insulation (250V or 500V) |
| TestⅡSELECT Switch + Class | Leakage Current test |
| Extension Leads test | Protective conductor resistance Insulation P/N-PE Polarity |
| SELECT Switch + Extension Leads test | Protective conductor resistance Leakage Current test |
| Leakage Current Test | Leakage current measurement |
RPE 20Ω Protective Conductor Resistance Test
| Measuring range | 0 - 15.00Ω |
|---|---|
| Resolution of measurement | 10mΩ |
| Open circuit voltage | < AC 12V |
| Measuring current | 10A AC nominal value |
| Accuracy | ±3%rdg±5dgt |
RINS 200MΩ Insulation Resistance
| Rating | 250V/20MΩ | 500V/20MΩ |
|---|---|---|
| Measuring range | 0 - 19.99Ω | |
| Resolution of measurement | 10kΩ | |
| Output voltage | 250V DC (+20%/-10%) @1MΩ | 500V DC (+20%/-10%) @1MΩ |
| Short circuit current | 2.5mA DC or less | |
| Accuracy | ±2%rdg±3dgt | |
Leakage Current Test
| Measuring range | AC 0.1 - 19.99mA |
|---|---|
| Resolution of measurement | 0.01mA |
| Examination time | Max 15 seconds |
| Accuracy | ±3%rdg±5dgt |
AC VOLT Mains Voltage Check
| Measuring range | 207 - 264V |
|---|---|
| Resolution of measurement | 1V |
| Accuracy | ±2%rdg±3dgt |
General
| Supply voltage | 240V±10% |
|---|---|
| Frequency | 50Hz±1% |
| Applicable standards | IEC 61010-1 CAT III 300V Pollution Degree2 IEC 61326-1 (EMC) |
| Dimensions | 167(L) × 185 (W) × 89 (D) mm |
| Weight | 1.2kg (only the instrument body) |
| Included Accessories | 7123 (Power cord [AU]) 7129A (Test leads with alligator clip) 7161A (Flat test prod [black]) 7140 (Adapter for exntesion cord) 9147 (Cord case) 9121 (Shoulder strap) Instruction manual |
| Optional Accessories | 7121B (Distribution board test leads) |
