DESCRIPTION
CERTIFICATION IN CONFORMITY WITH DIRECTIVE 2007/47 ON MEDICAL DEVICES
The refrigeration line of KW (a brand that has been on the market for OVER 60 YEARS !) is made according to manufacturing standards that meet UNI EN ISO 9001:2008 and ISO 13485:2003. It is designed for medical applications (transfusion centres, transplant banks, stem cells, test laboratories, etc.) and also for pharmaceutical, biotechnological applications and in any other sector where validation and certii cation is required.
All models bear the prestigious certii cation to Directive 2007/47 CE.
THE KPFF series FAST FREEZERS also meet PED DIRECTIVE 97/23 CE.
TRADITION & DIGITAL REFRIGERATION WITH NEW ICE AGE (NIA)
The application of the NIA controller (the result of KW’s know how and expertise) allows the entire KW range of refrigerators, blood bank fridges and freezers to be connected with a PC, with local data networks and with an external data monitoring and i ling system, which can all be tracked from any other site through the Internet, etc. This of ers the best and utmost traceability of all the data and all events (alarms, blackouts, door openings/closings, etc.) useful for correct management of the blood, blood components, products and biological materials stored, according to ISO, SINAL, GLP standards (also according to CFR21), etc.
GREEN ICE PROJECT
KW is designing its laboratory refrigerators/freezers researching the best performance, with the lowest energy consumption and the least environmental impact. A permanent KW team researches into new solutions implementing dedicated equipment (test chambers) and software for C.O.P. (coei cient of performance) assessment, in accordance with environment protection laws.
FLEXIBILITY – VERSATILITY – INNOVATION
KW of er a very comprehensive range of equipment from the compact model to the freezer and to the very high capacity refrigerator (over 700 – 1500 litres), to meet all purposes and any functional solution … KW of ers all types of materials : from stainless steel (AISI 304-AISI316) to painted sheet metals, to plastics … KW of ers a very comprehensive series of accessories … -> so customers can custom build their refrigerator from the catalogue …
CUSTOM SOLUTION …
KW of ers GI = GREEN ICE solutions, with low energy consumption and high operating performance through the use of new refrigeration and lighting technologies, new materials, etc.
KW of ers unique solutions with regard to ANTIBACTERIAL materials … special plastic compounds and sheet metals for the utmost hygiene and cleanliness and minimal risk of the growth of microorganisms!!!
KW of ers the TG = Twin Group solution, with an exclusive operating logic that consists of two completely independent refrigeration systems, connected functionally and operating alternately.
KW of ers SPLIT = remote unit solutions, with remote motor condensing units (away from the work area) owing to matters of size, thermal and noise pollution and ease of maintenance.
UTMOST PRODUCT SAFETY, ENERGY SAVING
The application of the NIA controller (together with all the other manufacturing and thermodynamic features) makes KW refrigeration equipment particularly reliable and with a low environmental and energy impact, through a series of functions/parameters that ensure the utmost ei ciency, top levels of operating safety and the best compatibility with the environment, including the routine operations of the laboratory for which they are intended.
In particular:

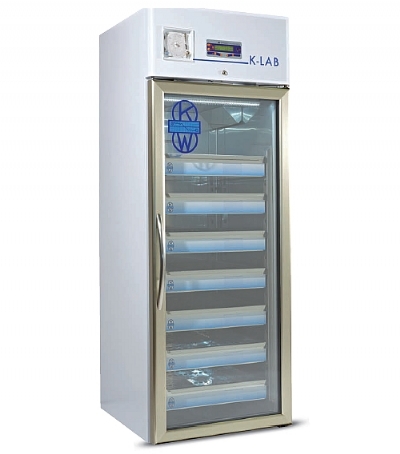

v Smart defrost (on some KLAB models), no frost solutions (all appliances, except some KLAB models), safety control, disaster recovery, environment adaptability, voltage stabiliser, integrated data logger function:
• Utmost safety of the material stored, even in the event of T sensor or CPU fault!
• Utmost ease of access and reading of all the controls and parameters on the LCD display
• Utmost ease of data coni guration, programming, control, i ling and monitoring, exportation of i led data to PC or in the network
• No defrosting (for almost all the range), or SMART- HOT GAS intelligent defrosting (not time-based, but on the measurement of the condition of the frost on the evaporator) which allows really considerable energy saving!
• Airtight, noiseless and powerful compressors with specii c lubricants for low T
• Utmost energy saving
• Minimal compressor wear
• Utmost stability and uniformity of the inside T
• Utmost product protection
• Minimal need for maintenance
ADJUSTMENT, CONTROL, SAFETY, USER FRIENDLINESS, ECO-FRIENDLINESS
WITH NEW ICE AGE (please see specii c technical literature)
• 16-character LCD display
• Access password
• PT 100 sensors in class A
• 2 ch PT 100 for independent T control and alarms
• Key Test = manual alarm simulation
• Disaster recovery (CPU controller fault ¢appliance working !)
• Safety Control (faulty sensors ¢ appliance working !)
• Environmental adaptability (adaptation to laboratory environmental conditions)
• Data logger functions (continuous recording of all the parameters and alarms)
• Service Check
• Info test
• Data export with IR port + Coldmaster software
• All the possible alarms and electrical autonomy!
and also :
• PK personal Key = which allows door opening/closing and access control through electronic transponder
• High level of user-friendliness with special handle, compensation valve, etc.
High performance thermodynamic project with
v Very high thermal insulation at very low conductivity (from 140 to 175 mm. in -80°C and -40°C freezers!), also with
VIPs (Vacuum Insulation Panels), and many internal counter doors (up to 4)
v The VIPs are an optional feature; with them KW has measured an energy saving of 18%-20% , retaining the average
thickness
v Environmental impact : also the thermoplastic materials used are recyclable and free of chlorinated substances and
heavy metals
v Insulated internal counter doors to minimise heat returns
v Triple silicone seal, to minimise heat returns
v Double outer door (2D), to minimise heat returns
v Highly extensive range of interior accessories to minimise search times and expose samples not intended for withdrawal
to minimum heating
v Inside/outside pressure compensation valve (from – 20°C downwards) to facilitate opening and closing at short intervals
v No defrosting solutions (except the KLAB series)
v Hot gas smart defrosting (only in the KLAB series)
v Led lighting + very low consumption fans (in the KLAB and Medical Project series)
v WATER CONDENSATION for minimal environmental impact, with pressure switch valve
v Max energy saving
v Max warm up time, in case of failure, (for example, over 220 min. for a 350 litre –80°C vertical freezer), essential for
correct sample storage
v Utmost stability and uniformity of the inside T, essential for correct sample storage
v Minimal recovery time, essential for correct sample storage
v Max room T over +32°C/+35°C, with air condensation
v Minimal need for maintenance
v Utmost product protection
v Minimal compressor wear
v Powerful airtight compressors (up to 1.7 HP in the higher capacity models)
v Innovative condensers (high turbulence & tubeless … up to 2600 W of thermal exchange)
v Expansion with STANDARD capillary tube (except some PLL models)
v Expansion with STANDARD thermostatic valve for the PLL series (from 350 litres upwards), EXTRA cooling energy for the new samples stored (especially plasma bags!)
v Expansion with OPTIONAL thermostatic valve for certain models at - 80°C, EXTRA cooling energy for the samples stored (especially plasma bags!)
v TG solutions, for the highest level of safety -> 2 100% power units
v SPLIT solutions, for minimal impact in the laboratory
v ECOFRIENDLY COOLANTS, braze welded and airtight circuits, reduced loads with compact circuits (for example, application of singlebody systems on the KLAB models)
• Internal circuit pressure control system of the two refrigerating stages (in - 80°C models). The system continuously evaluates the T and pressure conditions of the two refrigerating l ows, as well as the thermal exchange condition with the environment, in order to establish a constant balance between the l ows of the two stages,
• Minimum pull down time,
• Minimum recovery time,
• Maximum reserve refrigerating capacity ( putting over 12 Kg of water at room T in a 500 l –85°C ultra freezer takes the T to no further than -76°C with a recovery time of 180 min.) = suitable for storing plasma bags, frozen at - 30°C with the KPFF fast freezers, with the storage and further cooling capacity of over 48, 450 ml. /1000 ml. bags at a time
• Max room T over +32°C/+35°C
• Minimal need for maintenance
• Utmost product protection
• Minimal compressor wear
• Minimal thermal and noise pollution
v CEI EN 61326-1 conformity
v CEI EN 61010 –1 conformity
v Machine Directive 2006/42/EC conformity
v Low Voltage Directive 2006/95 CE conformity
v Electromagnetic compatibility (EMC) 2004/108 CE conformity
WIRELESS REFRIGERATION
The integration (on KW refrigerators) of the KW Spy data logger also enables the radio transmission (wireless) of measurement data; on a monitor, also away from the laboratory, it is possible to continuously view correct operation of the KW fridge/freezer, check and manage alarms and record all the information received on a digital medium.
DIGITAL REFRIGERATION WITH NEW ICE AGE & WIRELESS REFRIGERATION
The application (also at the same time) of the two systems allows:
√ Continuous supervision in safety of the state of preservation of the samples stored
√ Traceability of all events with continuous and highly accurate recording through a specii c software
√ Considerable operating savings, during purchasing, installation and implementation and due to less samples lost owing to faults, etc.
√ Flexibility in the use of appliances, through wireless communication and with a broad range of alternative solutions
√ The solutions proposed by KW are compatible with the accreditation - certii cation of the laboratory they are intended for
CONTINUOUS RECORDING
• Also in the event of a PC failure/stoppage, both the NIA controller and the KW Spy data logger continue to i le data; data downloading is possible at any time via IR transceiver (Coldmaster solution) from the NIA, and subsequently from any integrated Spy data logger!
GUARANTEED AUTONOMOUS OPERATION
• Both the NIA controller and the KW Spy data logger are self-supplied by an internal rechargeable battery and are insensitive to blackouts
MEASURING ACCURACY
• The sensors used allow T measurement to the tenth of one degree centigrade (± 0.1°C), inserted in air, in a suitable position; the version with PRODUCT SIMULATION SENSOR is an optional feature; a THRU HOLE is provided in the case of connection to the KW Spy data logger
JUST IN TIME ALARMS
… the alarms are all recorded in real time
• In the NIA controller storage, with option for network viewing, with Web NIA Server, …
• Through KW Spy data logger, on the remote PC …
• Through clean ON/OFF contact …
… in any case communication is possible by e-mail, fax, sms, voice messages, etc.
REMOTE CONTROL
• With the NIA controller + WEB NIA SERVER, it is possible to view (with password access) all the parameters, change these parameters (including the SET POINT), i le data, etc.
And this is possible from any distance … the operation takes place by typing the IP address ….
• With the KW Spy data logger it is possible to remotely view (via radio waves and with password access) all the parameters, i le data, etc.
• With the KW Spy data logger it is possible to remotely (with password access) read all the parameters, i le data, etc. also during the transport of samples (blood bags, plasma bags, vials, etc.)
PLEASE ALSO SEE the KW CATALOGUE/WEB SITE for the KW portable refrigerators
