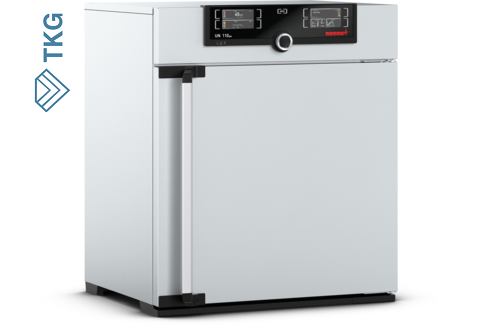

Tủ Sấy Parafin Memmert UN160pa (161 lít, 80°C)

Model: UN160pa
Hãng sản xuất: MEMMERT
Xuất xứ: Germany
Bảo hành: 12 tháng
Liên hệ
Tình trạng: Còn hàng
Điện thoại: 0976595968

Model: UN160pa
Hãng sản xuất: MEMMERT
Xuất xứ: Germany
Bảo hành: 12 tháng
Thông số kỹ thuật:
- Đối lưu tự nhiên, hai màn hình hiển thị
- Thể tích: 161 lít
- Kích thước trong: rộng 560 x cao 720 x sâu 400 mm
- Kích thước ngoài: rộng 745 x cao 1104 x sâu 584 mm
- Số khay cung cấp: 2
- Số khay để tối đa: 8
- Khả năng để tối đa/khay: 20 kg
- Khả năng để tối đa của tủ: 210 kg
- Khoảng nhiệt độ hoạt động: tối thiểu 5°C trên nhiệt độ môi trường đến 80°C
- Độ phân giải giá trị cài đặt: 0.1°C
- Sử dụng 2 đầu dò nhiệt độ Pt100 theo tiêu chuẩn DIN Class A dùng để hiển thị nhiệt độ hoạt động và cảnh báo
- Cài đặt ngôn ngữ: Đức, Anh, Pháp, Tây Ban Nha, Ba Lan, Czech, Hungary
- Bảng điều khiển ControlCOCKPIT: một màn hình hiển thị. Bộ điều khiển vi xử lý PID đa chức năng với màn hình màu TFT độ phân giải cao
- Bộ cài đặt thời gian có thể điều chỉnh từ 1 phút đến 99 ngày.
- Chức năng setpointWAIT: thời gian được kích hoạt khi nhiệt độ đạt đến nhiệt độ cài đặt
- Hiệu chuẩn: có thể lựa chọn tự do 3 giá trị nhiệt độ
- Điều chỉnh các thông số: nhiệt độ (°C hoặc °F), vị trí cửa đối lưu khí, chương trình thời gian, múi giờ
- Đối lưu không khí: đối lưu tự nhiên
- Chương trình được lưu trữ trong trường hợp mất điện
- Chương trình: phần mềm AtmoCONTROL trên thẻ nhớ USB dùng để lập trình, quản lý và truyền chương trình qua giao diện mạng Ethernet hoặc cổng USB
- Bảng điều khiển ControlCOCKPIT có cổng USB để tải chương trình, đọc các giá trị, kích hoạt chức năng cài đặt chỉ số cho người sử dụng
- Hiển thị dữ liệu đã lưu trên bảng điều khiển ControlCOCKPIT (tối đa 10000 giá trị tương đương khoảng 1 tuần)
- Giao diện Ethernet phía sau thiết bị để đọc dữ liệu ghi, tải các chương trình và ghi trực tuyến
- Kiểm soát nhiệt: bộ giới hạn nhiệt độ dạng cơ TB, cấp bảo vệ class 1 theo tiêu chuẩn DIN 12 880 tự ngắt khi nhiệt độ vượt quá khoảng 20°C trên nhiệt độ cài đặt, kiểm soát quá nhiệt TWWW, cấp bảo vệ 3.1 hoặc điều chỉnh bộ giới hạn nhiệt TWB, cấp bảo vệ 2, lựa chọn trên màn hình.
- Tích hợp thêm bộ kiểm soát quá và dưới nhiệt độ “AFS”, thực hiện theo giá trị điểm cài đặt một cách tự động ở một phạm vi dung sai định sẵn; báo động trong trường hợp quá và dưới nhiệt, chức năng gia nhiệt được ngắt trong trường hợp quá nhiệt, chức năng làm lạnh tự động ngắt trong trường hợp dưới nhiệt độ cài đặt
- Hệ thống tự động chẩn đoán cho phân tích lỗi
- Cảnh báo: hình ảnh và âm thanh
- Cửa: cửa bằng thép không gỉ cách nhiệt hoàn toàn với 2 điểm khóa.
- Cấu trúc lớp vỏ bằng thép không gỉ, chống trầy, cứng và bền, phía sau bằng thép mạ kẽm.
- Bộ nhớ trong có khả năng lưu trữ ít nhất 10 năm
- Nguồn điện: 230 V, 50/60 Hz
- Công suất tiêu thụ: 3200 W
- Nhiệt độ môi trường: 5 – 40°C
- Độ ẩm: tối đa 80% rh, không ngưng tụ

Phụ kiện kèm theo:
+ Giấy chứng nhận hiệu chuẩn tại điểm 80°C (Memmert cung cấp)
+ Khay lưới bằng thép không gỉ, 2 cái
+ USB với phần mềm AtmoCONTROL
+ Hướng dẫn sử dụng

Paraffin oven UN160pa

For many years, and with great precision, our paraffin oven UNpa has served users in science and research in sample preparation.

Paraffin oven UN160pa

Standard delivery Paraffin oven

The universally applicable oven is our classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

Sketch Paraffin oven UN160pa

Temperature

Set temperature range in °C min. 5°C above ambient up to +80°C
Setting accuracy temperature 0.1 °C
Temperature 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control technology

ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Language setting German, English, Spanish, French, Polish, Czech, Hungarian
Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function HeatBALANCE adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Function SetpointWAIT the process time does not start until the set temperature is reached
Calibration three freely selectable temperature values
adjustable parameters temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime

Ventilation

Convection natural convection

Communication

Documentation programme stored in case of power failure
Programming AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

Safety

Temperature control mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
Temperature control overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
AutoSAFETY additionally integrated over- and undertemperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
Autodiagnostic system for fault analysis
Alarm visual and acoustic

Standard equipment

Door fully insulated stainless steel door with 2-point locking (compression door lock)
Internals 2 stainless steel grid(s), electropolished
Works calibration certificate for +80°C

Options / Accessories

Option

Option Order No.
  Works calibration certificate for one (freely selectable) temperature value according to customer specification D00109
  Voltage 115 V, 50/60 Hz (no extra cost) X2
Full-sight glass door (4 insulating glass). Temperature-range up to max. 250 °C. Full-sight glass door (4 insulating glass). Temperature-range up to max. 250 °C. B0
  4 – 20 mA current loop interface (0 to +90°C corresponds to 4 – 20 mA) Temperature controller actual value V3
Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position left centre/centre Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position left centre/centre F0
Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position left centre top Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position left centre top F1
Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position right centre/centre Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position right centre/centre F2
Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position right centre top Entry port, 23 mm clear diameter, for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, standard position right centre top F3
Entry port, 23 mm clear diameter for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, in special positions (please, state location) - left Entry port, 23 mm clear diameter for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, in special positions (please, state location) - left F4
Entry port, 23 mm clear diameter for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, in special positions (please, state location) - right Entry port, 23 mm clear diameter for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, in special positions (please, state location) - right F5
Entry port, 23 mm clear diameter for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, in special positions (please, state location) - rear Entry port, 23 mm clear diameter for introducing connections at the side, gas tight, can be closed by flap and silicone stopper, in special positions (please, state location) - rear F6
  Entry port, 40 mm clear diameter, for introducing connections, gas tight, can be closed by flap and silicone stopper, in special positions at the back (please, state location) F7
  4 – 20 mA current loop interface (0 to +90°C corresponds to 4 – 20 mA) Temperature of a Pt100 sensor positioned flexibly in chamber for external temperature monitoring (max. 3 TwinDISPLAY) V6
  Gas inlet/outlet through 2 tubes with ball valves K3
  Works calibration certificate for 3 temperatures: +37°C, +52°C, +70°C. Standard works calibration certificate (measuring point chamber centre) at +80°C D00126
Door with lock (safety lock), Standard with SN/SF and SNplus/SFplus 450 and 750 Door with lock (safety lock), Standard with SN/SF and SNplus/SFplus 450 and 750 B6
  Door hinged on the left B8
Potential-free contact (24 V/2 A) with socket to NAMUR NE 28 for external monitoring (indicates when setpoint is reached) Potential-free contact (24 V/2 A) with socket to NAMUR NE 28 for external monitoring (indicates when setpoint is reached) H5
Potential-free contact for combination error message (e.g. supply failure, sensor fault, fuse) Potential-free contact for combination error message (e.g. supply failure, sensor fault, fuse) H6
Potential-free contact (24 V/2 A) with socket to NAMUR NE 28, for signal generation, controlled by programme segment, for free-selectable functions to be activated (e.g. activation of audible and visual signals, exhaust motors, fans, stirrers, etc. Only for units with TwinDISPLAY; max 2 contacts on 1-phase appliances; max 4 contacts on 3-phase appliances, 2 contacts Potential-free contact (24 V/2 A) with socket to NAMUR NE 28, for signal generation, controlled by programme segment, for free-selectable functions to be activated (e.g. activation of audible and visual signals, exhaust motors, fans, stirrers, etc. Only for units with TwinDISPLAY; max 2 contacts on 1-phase appliances; max 4 contacts on 3-phase appliances, 2 contacts H72
  Process-dependent programmable door lock (only for units with TwinDISPLAY) D4
  Door-open-recognition (only for units with TwinDISPLAY) V5
Flexible Pt100 for positioning in chamber or in load with socket, 4-pin, according to NAMUR NE 28, for external temperature recording (load temperature) max. 3 sensors Flexible Pt100 for positioning in chamber or in load with socket, 4-pin, according to NAMUR NE 28, for external temperature recording (load temperature) max. 3 sensors H4
Additional Pt100 temperature sensor, positioned flexibly in chamber or load, for local temperature measurement (up to 2 additional sensors are possible). The measured temperature can, if required, be indicated on the display, recorded in the integral ring store, and can be documented via the AtmoCONTROL software. Additional Pt100 temperature sensor, positioned flexibly in chamber or load, for local temperature measurement (up to 2 additional sensors are possible). The measured temperature can, if required, be indicated on the display, recorded in the integral ring store, and can be documented via the AtmoCONTROL software. H8
  MobileALERT, notification by SMS in case of any error or alarm of the device. Requires option H6 “floating contact for alarm” C3
  Temperature restriction (for models UN/UF/UNplus/UFplus, IN/IF/INplus/IFplus) Temperatures: +60, +70, +80, +95, +100, +120, +160, +180, +200 or +220 °C (Please, indicate upon ordering) A8
Castor frame (2-part), height 140 mm Castor frame (2-part), height 140 mm R9

Accessory

Accessory Order No.
Accessory Order No.
Stainless steel grids, electropolished (standard equipment) Stainless steel grids, electropolished (standard equipment) E20165
Perforated stainless steel shelf Perforated stainless steel shelf B00325
  Max. loading per slide-in drip tray (kg) 3
  Max. loading per bottom drip tray (kg) 3
Wall bracket for wall mounting Wall bracket for wall mounting B29759
Stainless steel slide-in drip tray, 15 mm rim (may affect the temperature distribution) Stainless steel slide-in drip tray, 15 mm rim (may affect the temperature distribution) E02073
Stainless steel bottom drip tray, 15 mm rim (may affect the temperature distribution) Stainless steel bottom drip tray, 15 mm rim (may affect the temperature distribution) B04359
  Guarantee extension by 1 year GA1Q5
  USB-Ethernet adapter E06192
  Ethernet connection cable 5 m for computer interface E06189
  USB User-ID stick (with User-ID licence): Oven-linked authorisation licence (User-ID-programme) on Memory-stick, prevents undesired manipulation by unauthorised third parties. When reordering please specify serial number (only for units with TwinDISPLAY) B33170
  USB stick with documentation software AtmoCONTROL and operation manual for products with SingleDISPLAY (the standard equipment of appliances with TwinDISPLAY includes one USB stick with AtmoCONTROL) B33172
  Set of height adjustable feet (4 pcs). Standard on models ICOmed B29768
Stacking set (4 pcs) for stacking of appliances of same size (not for models 160, 260, 450, 750, 1060, ICH110, ICH110L and ICH110C) Stacking set (4 pcs) for stacking of appliances of same size (not for models 160, 260, 450, 750, 1060, ICH110, ICH110L and ICH110C)
Plug-in tube extension (outer diam. 60,3 mm, inner 57 mm), straight, for exhaust air ducting (if necessary for connection by hose), only models U, I, S Plug-in tube extension (outer diam. 60,3 mm, inner 57 mm), straight, for exhaust air ducting (if necessary for connection by hose), only models U, I, S B29718
Plug-in tube extension (outer diam. 60,3 mm, inner 57 mm), angled, for exhaust air ducting (if necessary for connection by hose), only models U, I, S Plug-in tube extension (outer diam. 60,3 mm, inner 57 mm), angled, for exhaust air ducting (if necessary for connection by hose), only models U, I, S B29719
Flush-fit unit (stainless steel frame covering gap between oven and wall opening), with air slots – technical clarification required Flush-fit unit (stainless steel frame covering gap between oven and wall opening), with air slots – technical clarification required B29736
Flush-fit unit (stainless steel frame covering gap between oven and wall opening), without air slots – technical clarification required Flush-fit unit (stainless steel frame covering gap between oven and wall opening), without air slots – technical clarification required B29737
Subframe, adjustable in height (size 30 to 75: height 600 mm, size 110 to 450: height 500 mm) Subframe, adjustable in height (size 30 to 75: height 600 mm, size 110 to 450: height 500 mm) B29749
Subframe, on castors (size 30 to 75: height 660 mm, size 110 to 160: height 560 mm) Subframe, on castors (size 30 to 75: height 660 mm, size 110 to 160: height 560 mm) B29750
  Subframe, adjustable in height (height 130 mm, for example for units with fresh-air filter) B33661
  Software conforming to FDA “AtmoCONTROL“. Meets the requirements for the use of electronically stored data sets and electronic signatures as laid down in Regulation 21 CFR Part 11 of the US Food and Drug Administration (FDA). Base licence for the control of one unit (only for units with TwinDISPLAY). Respective IQ/OQ documents available in German and English language (without surcharge). FDAQ1
  Integration of one additional unit (up to max. 15 units) into an already existent FDA-software licence FDAQ2
  IQ document with device-specific works test data, OQ/PQ check list as support for validation by customer D00124
  IQ/OQ document with works test data for chamber, incl. temperature distribution survey for one free-selectable temperature value. 9 measuring points (size 30), 27 measuring points (sizes 55 - 1060) to DIN 12880:2007-05 (further temperature values on demand), PQ check list as support for validation by customer D00127
  IQ/OQ document with device-specific works test data for one free-selectable temperature and humidity value, incl. temperature distribution survey at Memmert for 27 measuring points (26 measuring points on model HPP1400) to DIN 12880:2007-05, PQ check list as support for validation by customer (models HPP and ICH).
  IQ/OQ document with works test data for chamber, incl. temperature distribution survey for one free-selectable temperature, humidity and light value. 27 measuring points to DIN 12880:2007-05, PQ check list as support for validation by customer (models HPP with light and ICH L)
  External measuring instrument with sensors for daylight and UV-light. Product information on demand (models HPP, ICH L, IPPplus) B04713
  External measuring instrument with sensors with additional measuring head for temperature and humidity measurement. Product information on demand (models HPP, ICH, ICH L, ICH C, IPPplus and ICOmed) B04714
