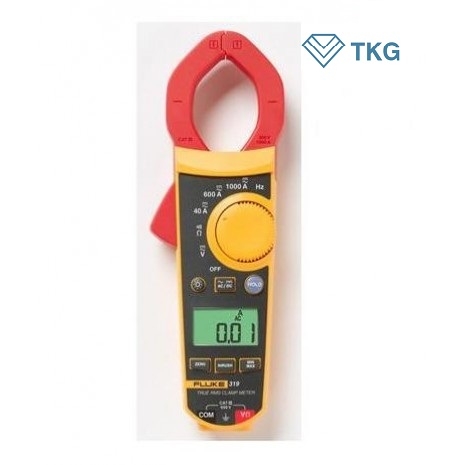

Ampe kìm đo dòng AC/DC Fluke 319
Model: 319
Hãng sản xuất: Fluke
Xuất xứ: China
Bảo hành: 12 tháng
Thông số kỹ thuật:
ACA: 40.00 A /1.6%, 600.0 A, 1000 A /1.5%
DCA: 40.00 A /1.6%, 600.0 A, 1000 A /1.5%
ACV: 0.1V ~ 600.0 V /1.5%
DCV: 0.1V ~ 600.0 V /1%
R: 400.0 Ω, 4000 Ω /%
Kiểm tra liên tục: ≤ 30 Ω
F: 5.0 - 500.0 Hz /0.5%
Kích thước vòng kìm: 1.45 in (37 mm)
Ampe kìm đo dòng AC/DC Fluke 319 Kích thước máy (mm): 162.4 x 58.25 x 30.5
Ampe kìm đo dòng AC/DC Fluke 319 Trọng lượng: 384 g
Phụ kiện: dây đo, túi mềm, 3 pin AAA, HDSD
Ampe kìm đo dòng AC/DC Fluke 319
| General specifications | |
| Digital display | 6000 count resolution |
| Low battery Indication | Displays a signal when the batteries are below their required voltage |
| Power source | Three AAA IEC LR03 batteries |
| Clamp opening size | 1.45 in (37 mm) |
| Jaw diameter | 1.45 in (37 mm) |
| Dimensions (L x W x H) | 6.39 x 2.29 x 1.20 in |
| (162.4 x 58.25 x 30.5 mm) | |
| Weight | Approximately 13.5 oz (384 g) (batteries included) |
| Auto range | Available in Ohms |
| Safety | CE |
| EN/IEC 61010-1 and IEC 61010-2-032 | |
| Measurement Category: 600V CAT III | |
| 317 Electrical specifications | ||
| Current AC | Range | 40.00 A, 600.0 A |
| Resolution | 0.01 A, 0.1 A | |
| Accuracy | 1.6% ±6 digit (50-60 Hz) {40 A} | |
| 2.5% ±8 digit (60-500 Hz) {40 A} | ||
| 1.5% ±5 digit (50-60 Hz) {600 A} | ||
| 2.5% ±5 digit (60-500 Hz) {600 A} | ||
| Crest Factor add 2% into spec for CF > 2 | 3.0 Max @ 500 A, 2.5 Max @ 600 A | |
| AC response | rms | |
| Current DC | Range | 40.00 A, 600.0 A |
| Resolution | 0.01 A, 0.1 A | |
| Accuracy | 1.6% ±6 digit (40 A) | |
| 1.5% ±5 digit (600 A) | ||
| Voltage AC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1.5% ±5 digit (20-500Hz) | |
| AC response | rms | |
| Voltage DC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1% ±4 digit | |
| Resistance | Range | 400.0 Ω, 4000 Ω |
| Resolution | 0.1 Ω, 1 Ω | |
| Accuracy | 1% ±5 digit | |
| Continuity | ≤ 30 Ω | |
| Inrush | Integration time | N/A |
| Frequency | Range | N/A |
| Accuracy | N/A | |
| Trigger Level | N/A | |
| 319 Electrical specifications | ||
| Current AC | Range | 40.00 A, 600.0 A, 1000 A |
| Resolution | 0.01 A, 0.1 A, 1 A | |
| Accuracy | 1.6% ±6 digit (50-60 Hz) {40 A} | |
| 2.5% ±8 digit (60-500 Hz) {40 A} | ||
| 1.5% ±5 digit (50-60 Hz) {600/1000 A} | ||
| 2.5% ±5 digit (60-500 Hz) {600/1000 A} | ||
| Crest Factor add 2% into spec for CF > 2 | 3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A | |
| AC response | rms | |
| Current DC | Range | 40.00 A, 600.0 A, 1000 A |
| Resolution | 0.01 A, 0.1 A, 1 A | |
| Accuracy | 1.6% ±6 digit (40 A) | |
| 1.5% ±5 digit (600/1000 A) | ||
| Voltage AC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1.5% ±5 digit (20-500Hz) | |
| AC response | rms | |
| Voltage DC | Range | 600.0 V |
| Resolution | 0.1 V | |
| Accuracy | 1% ±4 digit | |
| Resistance | Range | 400.0 Ω |
| 4000 Ω | ||
| Resolution | 0.1 Ω | |
| 1 Ω | ||
| Accuracy | 1% ±5 digit | |
| Continuity | ≤ 30 Ω | |
| Inrush | Integration time | 100 ms |
| Frequency | Range | 5.0 - 500.0 Hz |
| Accuracy | 0.5% ±5 digit | |
| Trigger Level | 10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A | |
| The accuracy specifications aply at 73 °F ±41 °F (23 °C ±5 °C) Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C. True rms for ac V and ac A accuracy is specified from 5% to 100% of range. |
||
| Environmental specifications | |
| Operating temperature | 14°F to 122°F (-10 °C to 50 °C) |
| Storage temperature | -40 °F to 140 °F (-40 °C to 60 °C) |
| Operating humidity | Non-condensing (< 50 °F) (< 10 °C) |
| 90% RH (50 °F to 86 °F) (10 °C to 30 °C) | |
| 75% RH (86 °F to 104 °F) (30 °C to 40 °C) | |
| 45% RH (104 °F to 122 °F) (40 °C to 50 °C) | |
| (Without condensation) | |
| Operating altitude | 1 mile (2000 meters) above mean sea level |
| Storage altitude | 7 miles (12,000 meters) above mean sea level |
| IP Rating | IP40 |
| Vibration requirements | Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis |
| Drop test requirements | 3 ft (1 m) drop test, six sides, oak floor |
| EMI, RFI, EMC | Instrument unspecified for use in EMC field ≥ 0.1 V/m |
| Temperature coefficients | 0.1x (specified accuracy)/ °C |
| (<64 °F or > 82° F) | |
| (<18 °C or > 28 °C) | |
